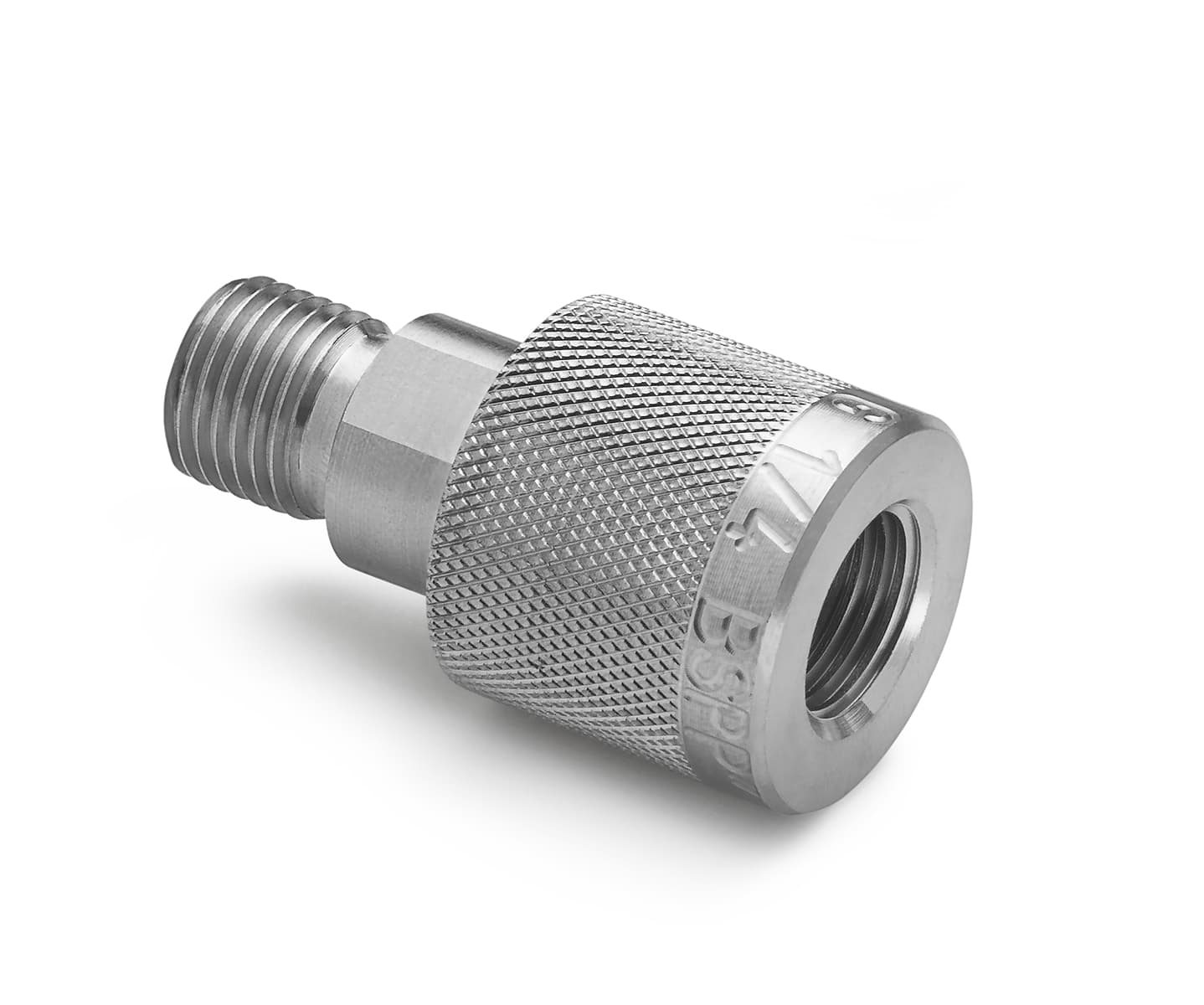

Part Number: QTHA-2FS0-RG-QD

1/4" female BSPP Quick-disconnect x male Quick-test, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect directly to the bottom of BSPP pressure gauges without a bonded seal or crush washer

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.63 oz / 75 grams
Length	1.7 in / 44 mm
Width	0.95 in / 25 mm
Height	0.95 in / 25 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 1/4 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
