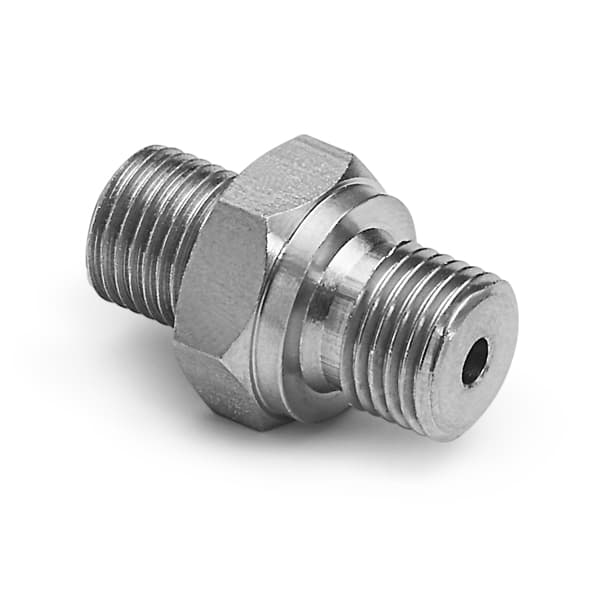

Part Number: QTHA-2MS0-RS
G 1/4" male BSPP (ISO 228/1) x male Quick-test, no check-valve, S.S.
Excellent for connection to hand pumps and pressure calibrators with 1/4" BSPP ports
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.65 oz / 47 grams |
|---|---|
| Length | 1.25 in / 32 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | G 1/4 Male BSPP (ISO 228) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
