Part Number: QTFT-1MB0-RS

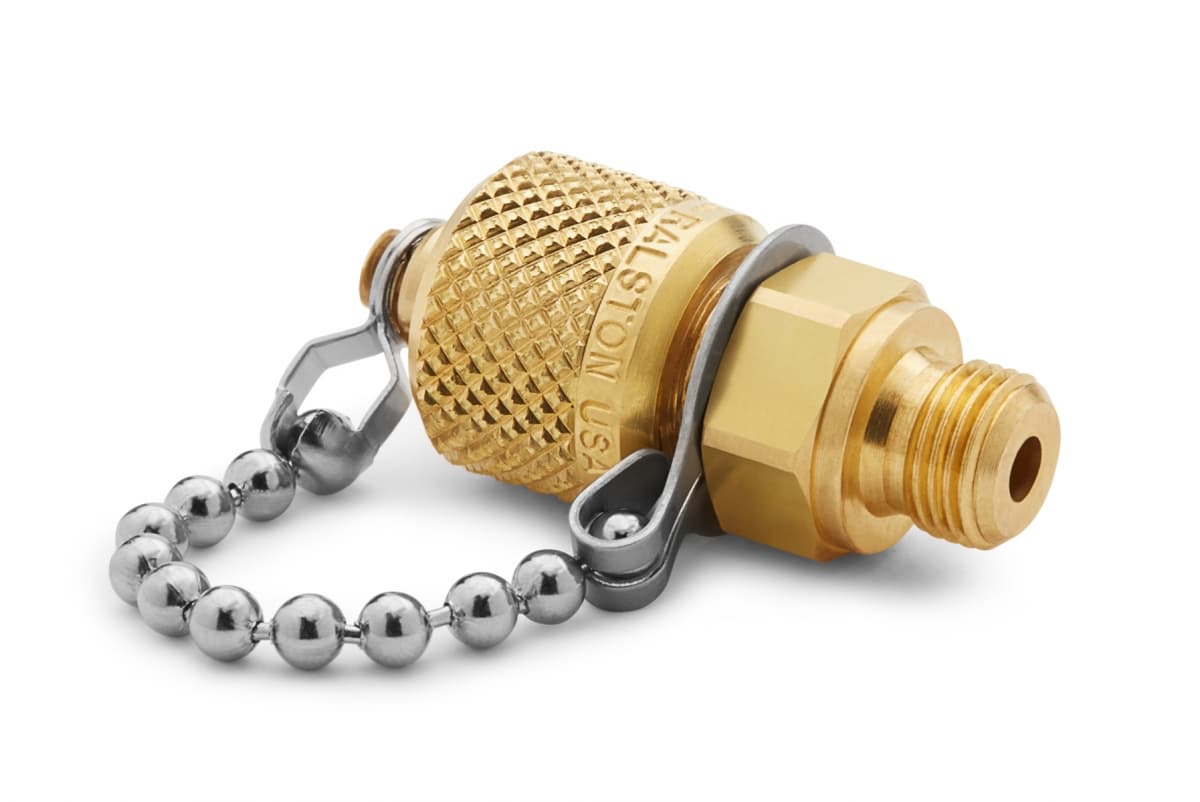

G 1/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, brass
![](https://ralstoninst-web.imgix.net/products/items/item-56d774e0367fc.jpeg?ixlib=js-3.8.0&w=2112&blur=200&px=16&auto=compress%2Cformat&s=be2fae29a9059e2a1b9462f1940cd6d2)
Connect Female BSPP (ISO 228/1) parallel thread to Quick-test hose for permanent installation where frequent calibrations are performed
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
Weight | 1.7 oz / 48 grams |
---|---|
Length | 1.58 in / 41 mm |
Width | 0.56 in / 15 mm |
Height | 0.56 in / 15 mm |
Country of origin | USA |
Materials | Brass |
Max Operating Temperature | 225 °F / 105 °C |
Max Pressure | 5000 PSI / 350 bar / 35 MPa |
Max Vacuum | 0 InHg / 0.0 kPa |
Seal Materials | Buna-N |
Wrench Size | 9/16 In / 15 mm |
Wrench Size | 15 mm / 9/16 in |
End 1 Connector | Male Quick-test |
End 1 Cap and Chain | Yes |
End 1 Direction | Left |
End 2 Connector | G 1/8 Male BSPP (ISO 228) |
End 2 Direction | Left |
