Part Number: QTHA-1FB0-RT

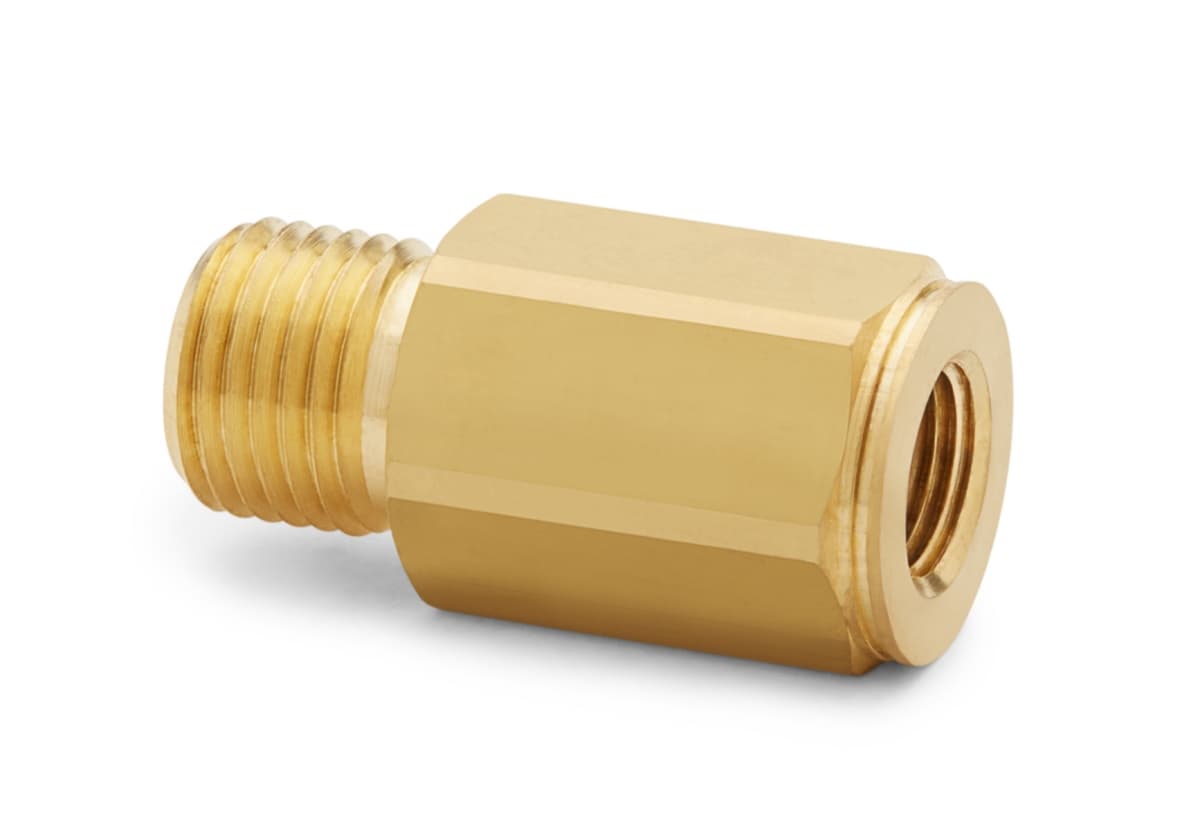

1/8" female BSPT (ISO 7/1) x male Quick-test, no check-valve, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to any Male BSPT (ISO 7/1) taper thread connection using thread sealant and a wrench

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.39 oz / 39 grams
Length	0.98 in / 25 mm
Width	0.63 in / 17 mm
Height	0.63 in / 17 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	1/8" Female BSPT (ISO 7)
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
