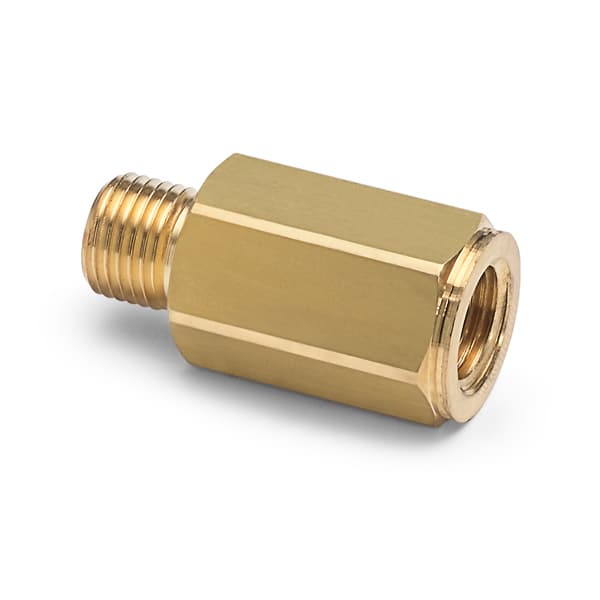

Part Number: QTHA-2FB0-RT

1/4" female BSPT (ISO 7/1) x male Quick-test, no check-valve, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to any Male BSPT (ISO 7/1) taper thread connection using thread sealant and a wrench

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.41 oz / 68 grams
Length	1.13 in / 29 mm
Width	0.75 in / 20 mm
Height	0.75 in / 20 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	1/4" Female BSPT (ISO 7)
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
