Part Number: QTHA-2MB0-RT

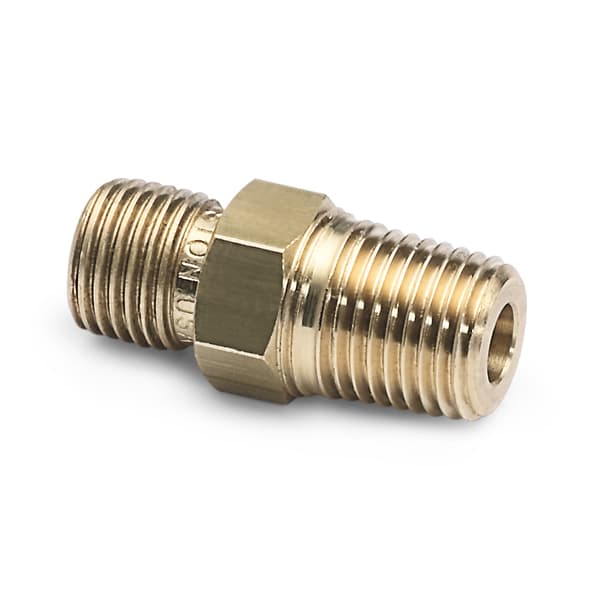

1/4" male BSPT (ISO 7/1) x male Quick-test, no check-valve, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connects Female BSPT (ISO 7/1) taper pipe thread to Quick-test hose using thread sealant and a wrench

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.07 oz / 30 grams
Length	1.29 in / 33 mm
Width	0.56 in / 15 mm
Height	0.56 in / 15 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Male BSPT (ISO 7)
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
