Calibration Manifolds

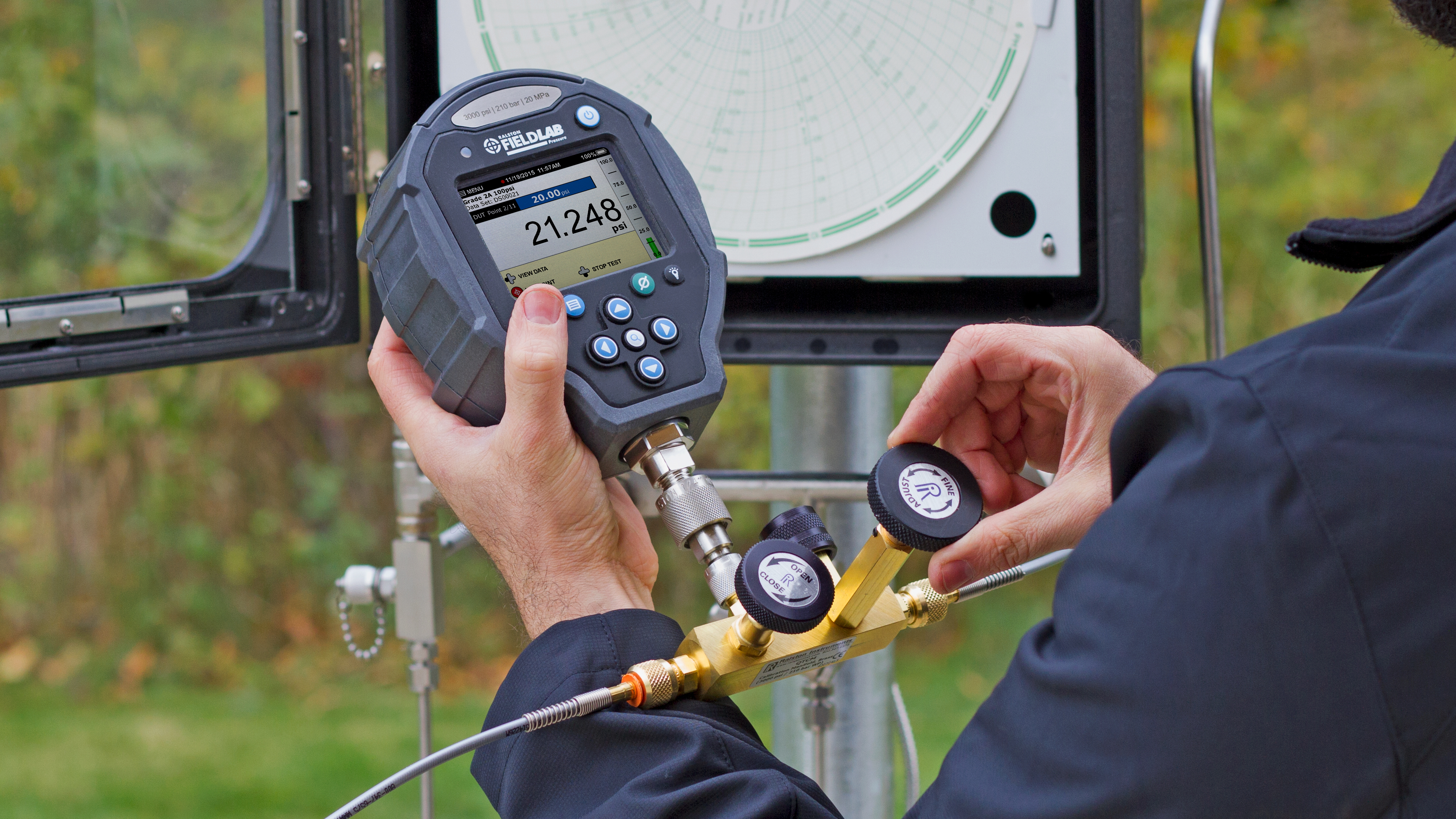

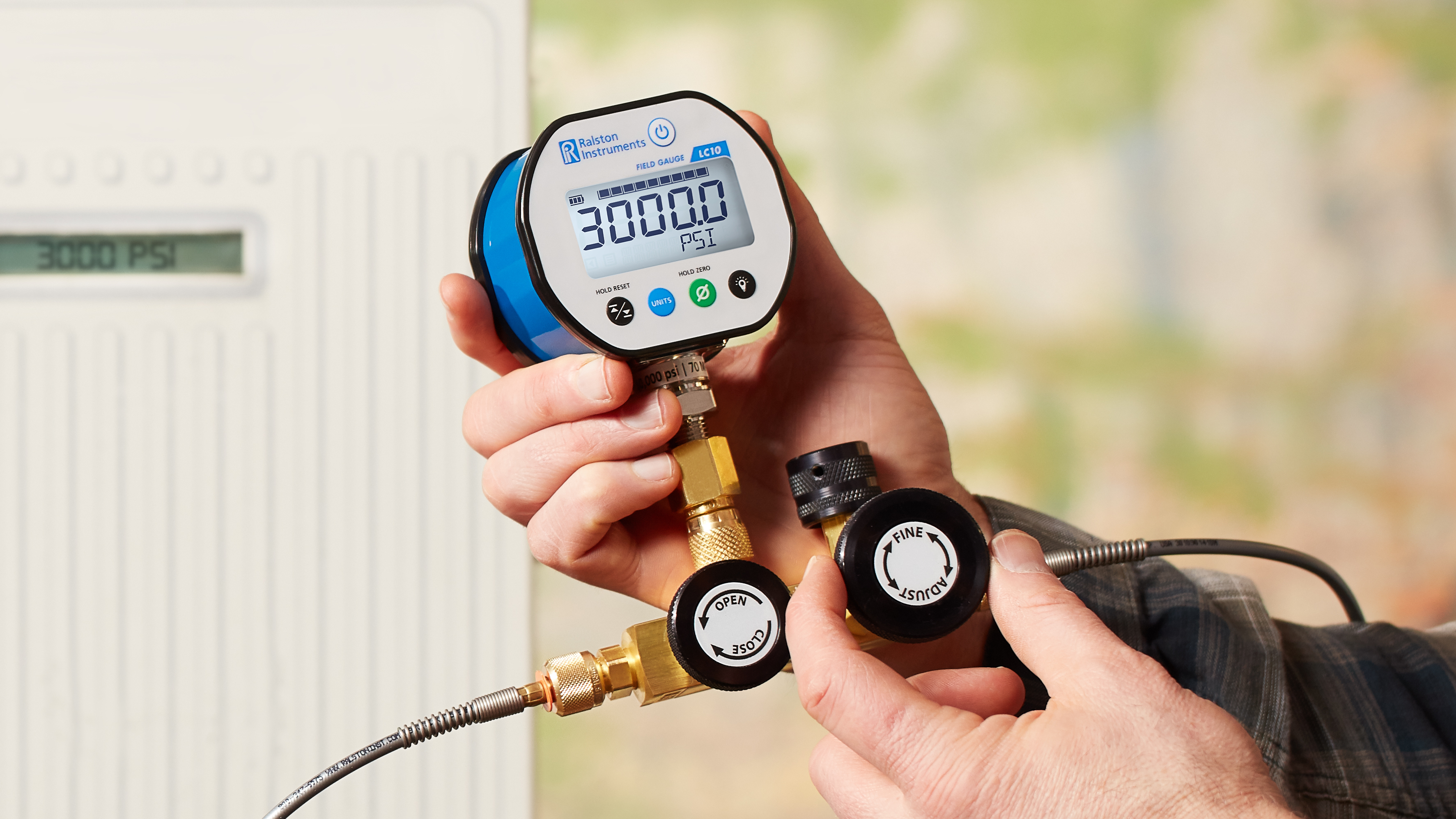

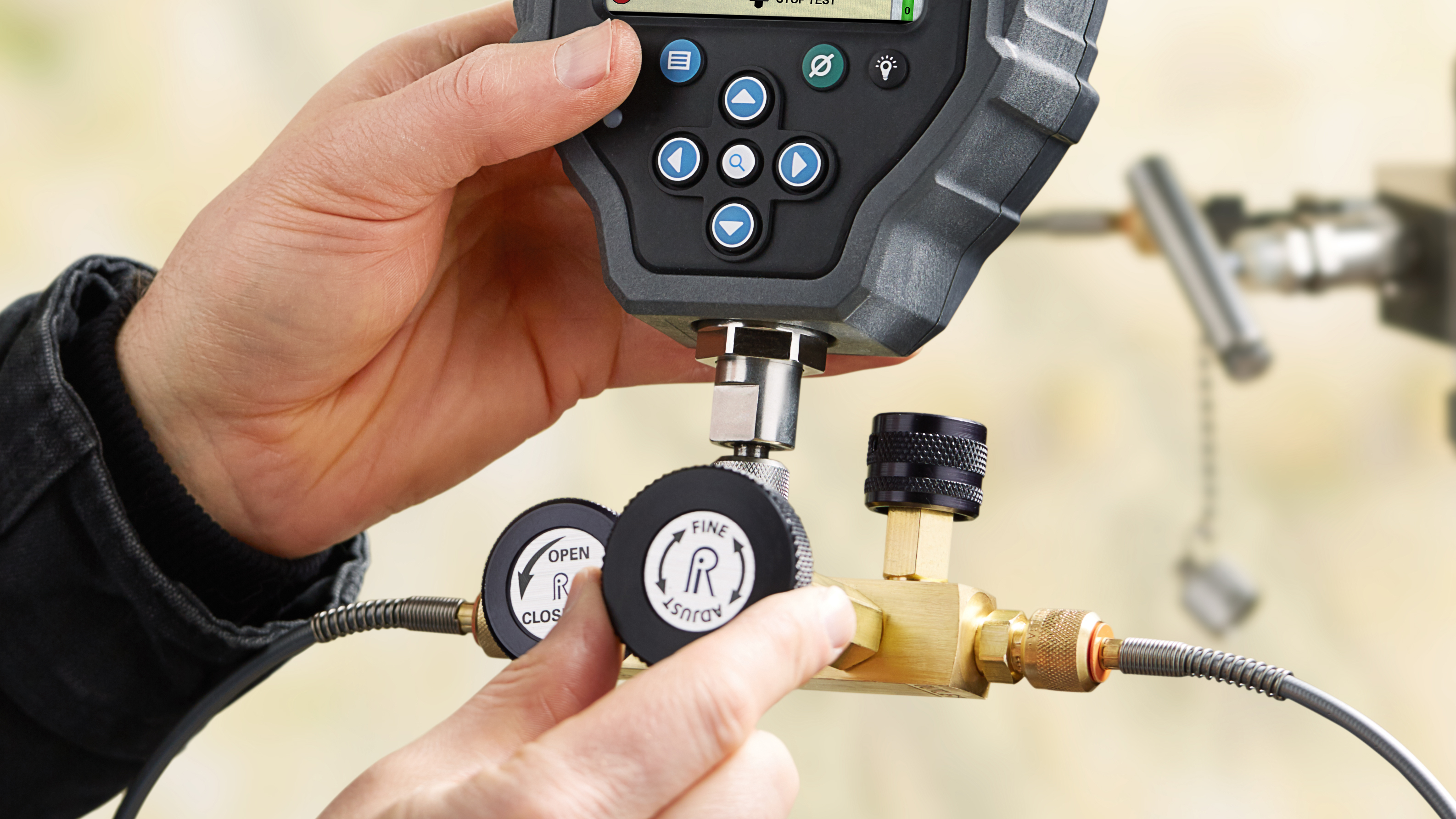

Perform static pressure calibrations in the field

  • Fine adjustment piston provides precise pressure control instead of trying to make adjustments with a pressure regulator and a needle valve
  • Soft-seated valves make filling and venting the system very precise

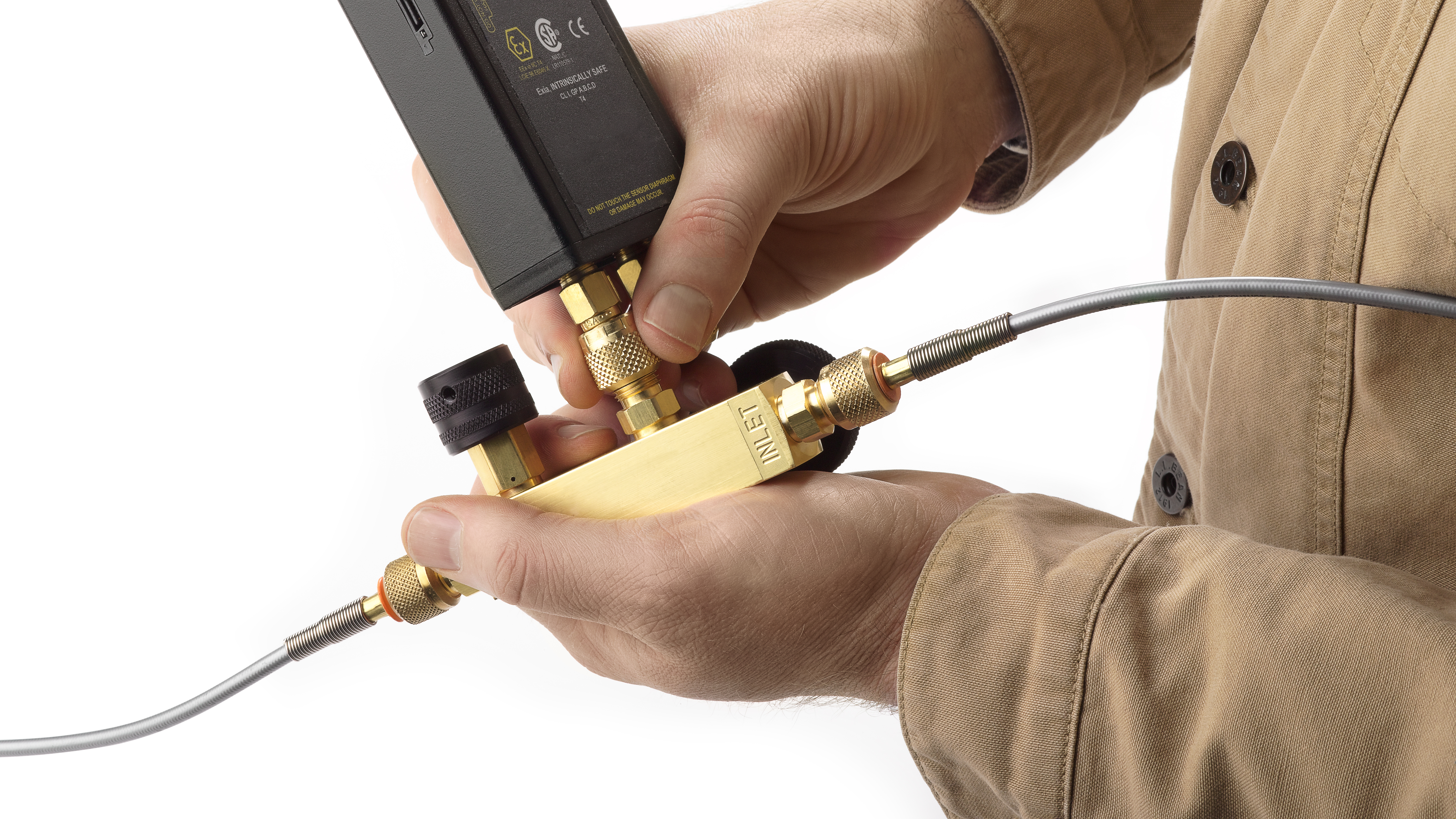

  • Compact design allows the manifold, gauge adapter and hoses to fit in the included nylon bag
  • Because pressure is controlled at the device under test, the nitrogen cylinder can be mounted on a truck
  • Low volume Quick-test hose, gauge adapter and process connection reduce gas usage and make nitrogen cylinders last longer
  • Made in U.S.A.

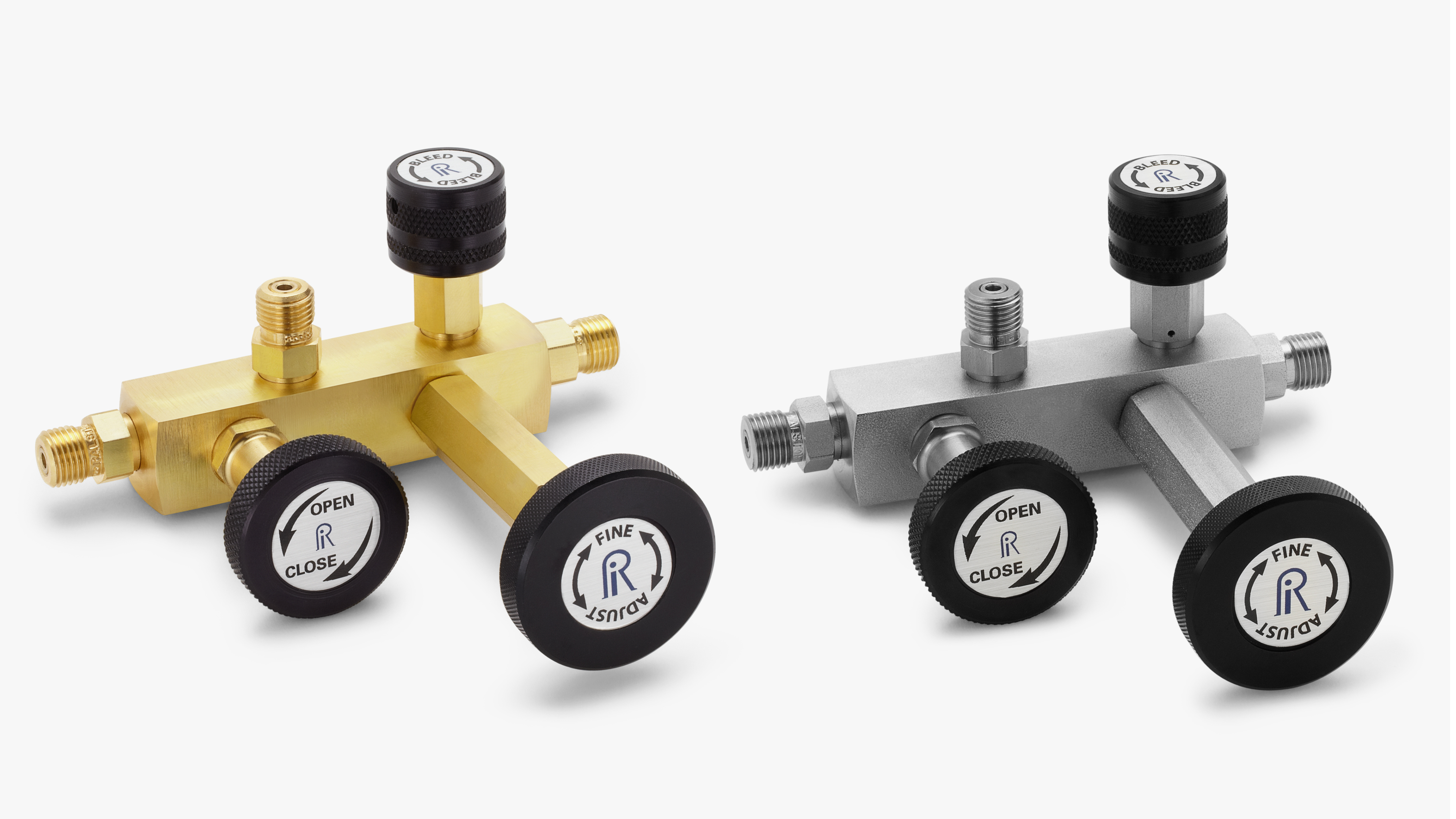

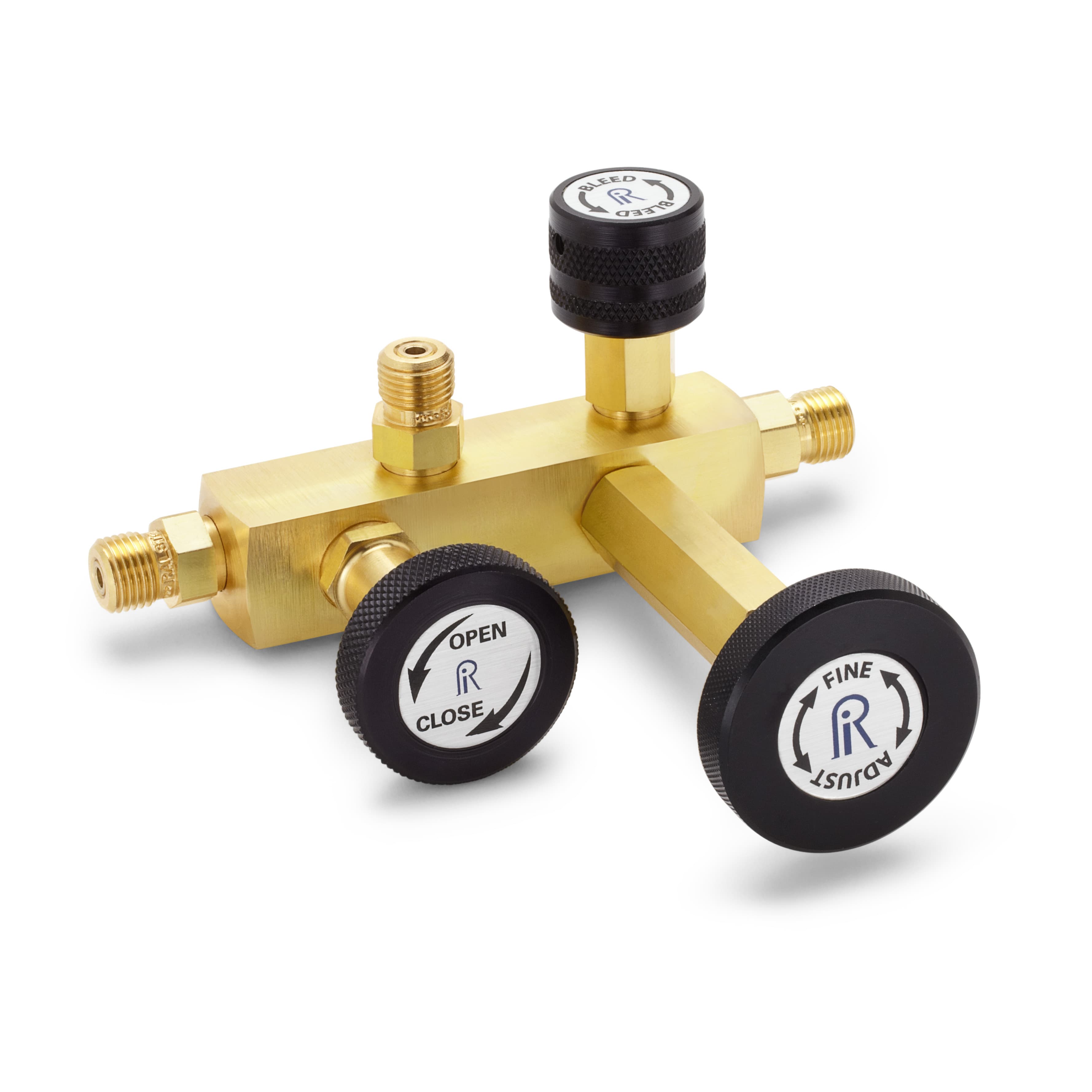

Calibration Manifold Models

Model Max Pressure Materials Seal Materials Min Temperature Max Temperature Hose 1 Hose 2 Pressure Reference Process Connection Reference Connection Max Vacuum
QTCM-0000-0-0 3000 PSI
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
None
None
None
None
None

QSCM-0000-0-0 5000 PSI
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
None
None
None
None
None

QTCM-2MBA-20-2 3000 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
None
1/4" Male NPT
1/4" Male NPT

QTCM-2FBA-20-2 3000 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
None
1/4" Male NPT
1/4" Female NPT

QTCM-1MBA-20-2 3000 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
None
1/4" Male NPT
1/8" Male NPT

QTCM-2MBA-6m-1m 3000 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 6m long
Quick-test Hose, Brass ends, 1m long
None
1/4" Male NPT
1/4" Male NPT

QTCM-2FBA-6m-1m 3000 PSI
Anodized Aluminum
Brass
Stainless Steel
Zippered Nylon
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 6m long
Quick-test Hose, Brass ends, 1m long
None
1/4" Male NPT
1/4" Female NPT

QTCM-1MBA-6m-1m 3000 PSI
Anodized Aluminum
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 6m long
Quick-test Hose, Brass ends, 1m long
None
1/4" Male NPT
1/8" Male NPT

QSCM-2MSA-6m-1m 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 6m long
Quick-test Hose, Stainless Steel ends, 1m long
None
1/4" Male NPT
1/4" Male NPT
0 In Hg
QSCM-2MSA-20-2 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 20ft / 6.1m long
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4" Male NPT
1/4" Male NPT

QSCM-2FSA-20-2 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
          0 In Hg
QSCM-1MSA-20-2 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 20ft / 6.1m long
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4" Male NPT
1/8" Male NPT

QSCM-1MSA-6m-1m 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 6m long
Quick-test Hose, Stainless Steel ends, 1m long
  1/4" Male NPT
1/8" Male NPT

QSCM-2FSA-6m-1m 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
          0 In Hg
QTCM-1KPSIG-FL 3000 PSI
Anodized Aluminum
Brass
Zippered Nylon
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
Pressure FieldLab, 1000 psi / 70 bar / 7 MPa
1/4" Male NPT
None

QTCM-3KPSIG-FL 3000 PSI
Anodized Aluminum
Brass
Zippered Nylon
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
Pressure FieldLab, 3000 psi / 200 bar / 20 MPa
1/4" Male NPT
None

QTCM-3KPSIG-D 3000 PSI
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
Digital pressure gauge, 3000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT

QTCM-1KPSIG-D 3000 PSI
Brass
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Brass ends, 20ft / 6.1m long
Quick-test Hose, Brass ends, 2ft / 0.6m long
Digital pressure gauge, 1000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT

QSCM-5KPSIG-FL 5000 PSI
Anodized Aluminum
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 20ft / 6.1m long
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
Pressure FieldLab, 5000 psi / 350 bar / 35 MPa
1/4" Male NPT
None

QSCM-5KPSIG-D 5000 PSI
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
Quick-test Hose, Stainless Steel ends, 20ft / 6.1m long
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
Digital pressure gauge, 5000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT
