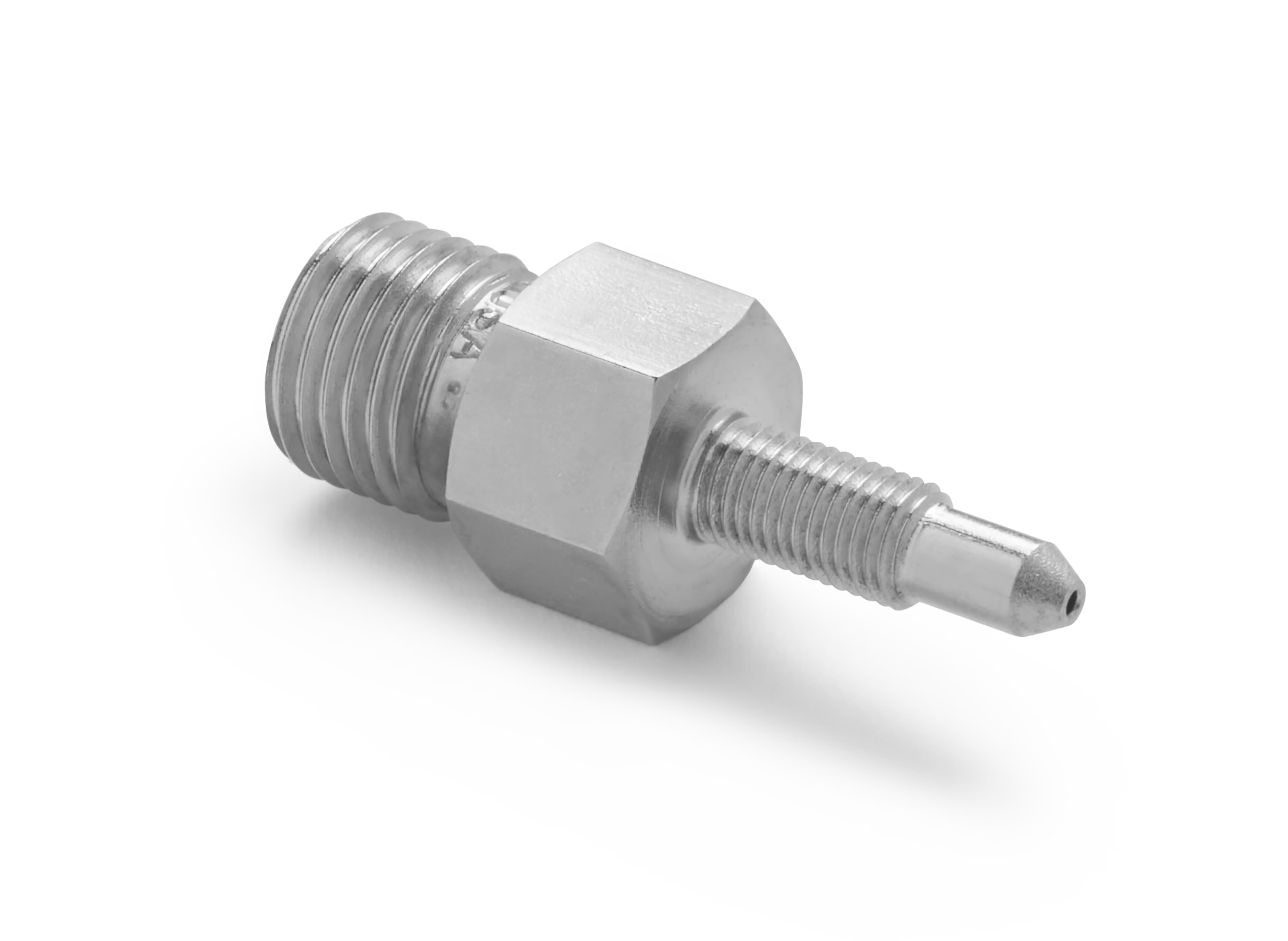

Part Number: QTHA-ABS0

M6 x 0.75MM x male Quick-test, no check-valve, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a Quick-test hose directly to a DP transmitter or gauge valve using the bleeder port when the transmitter is not mounted on a 3 valve manifold or gauge valve or when the manifold is not easily accessible.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	0.85 oz / 24 grams
Length	2.16 in / 55 mm
Width	0.56 in / 15 mm
Height	0.56 in / 15 mm
Compatible with	ABB 266DSH, ABB 266DRH, ABB 266MRT, ABB 266MST
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Media Compatibility	Ethylene Glycol, Hydraulic Oil, Inert Gas, Mineral Oil, Natural Gas, Petroleum Based Oil, Skydrol, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	M6 X 0.75 MM Male DP Transmitter/Gauge valve
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
