Part Number: QTFT-HNS0

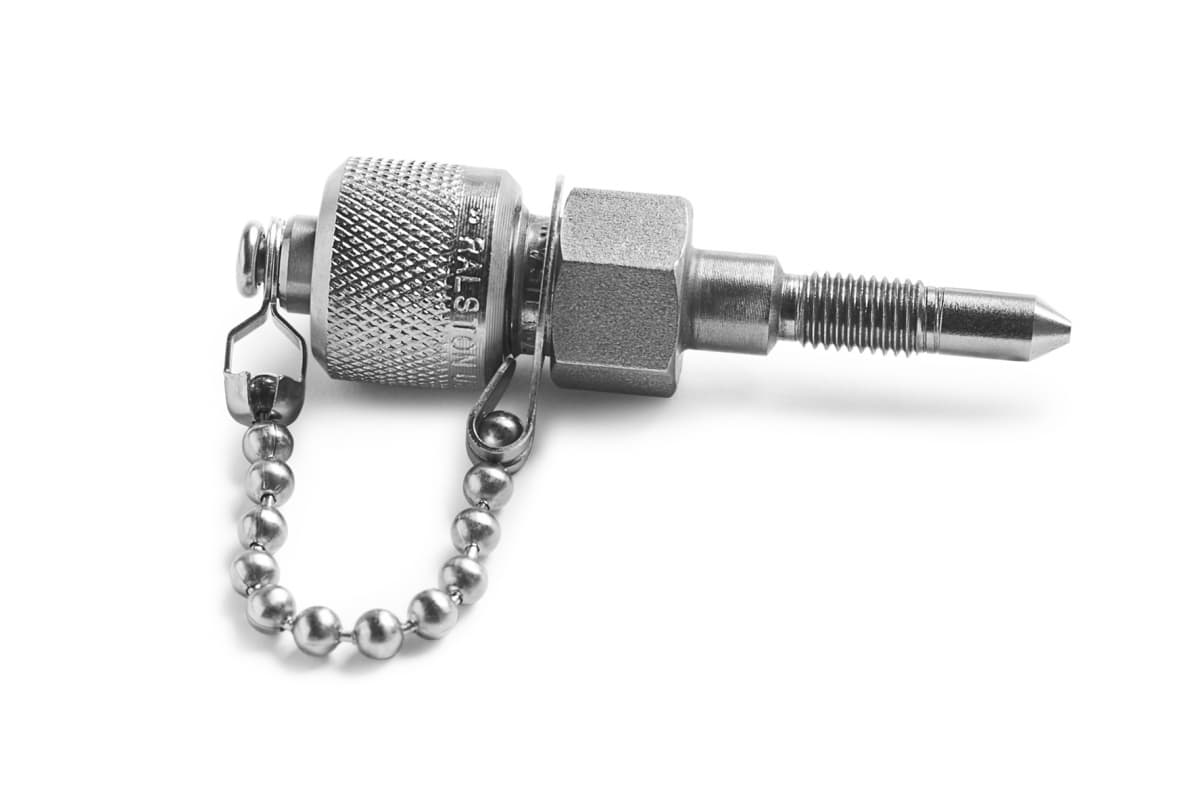

1/4"-28 UNF x male Quick-test, with cap and chain, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Ideal for situations where frequent calibration of a DP transmitter using the bleeder port is required

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.76 oz / 50 grams
Length	2.58 in / 66 mm
Width	0.7 in / 18 mm
Height	0.7 in / 18 mm
Compatible with	Honeywell Smartline ST700 Pressure Transmitter, Honeywell Smartline ST800 Pressure Transmitter
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	Male Quick-test
End 1 Cap and Chain	Yes
End 1 Direction	Left
End 2 Connector	1/4-28 Male DP Transmitter/Gauge valve
End 2 Direction	Left
