Part Number: QTFT-NPS0

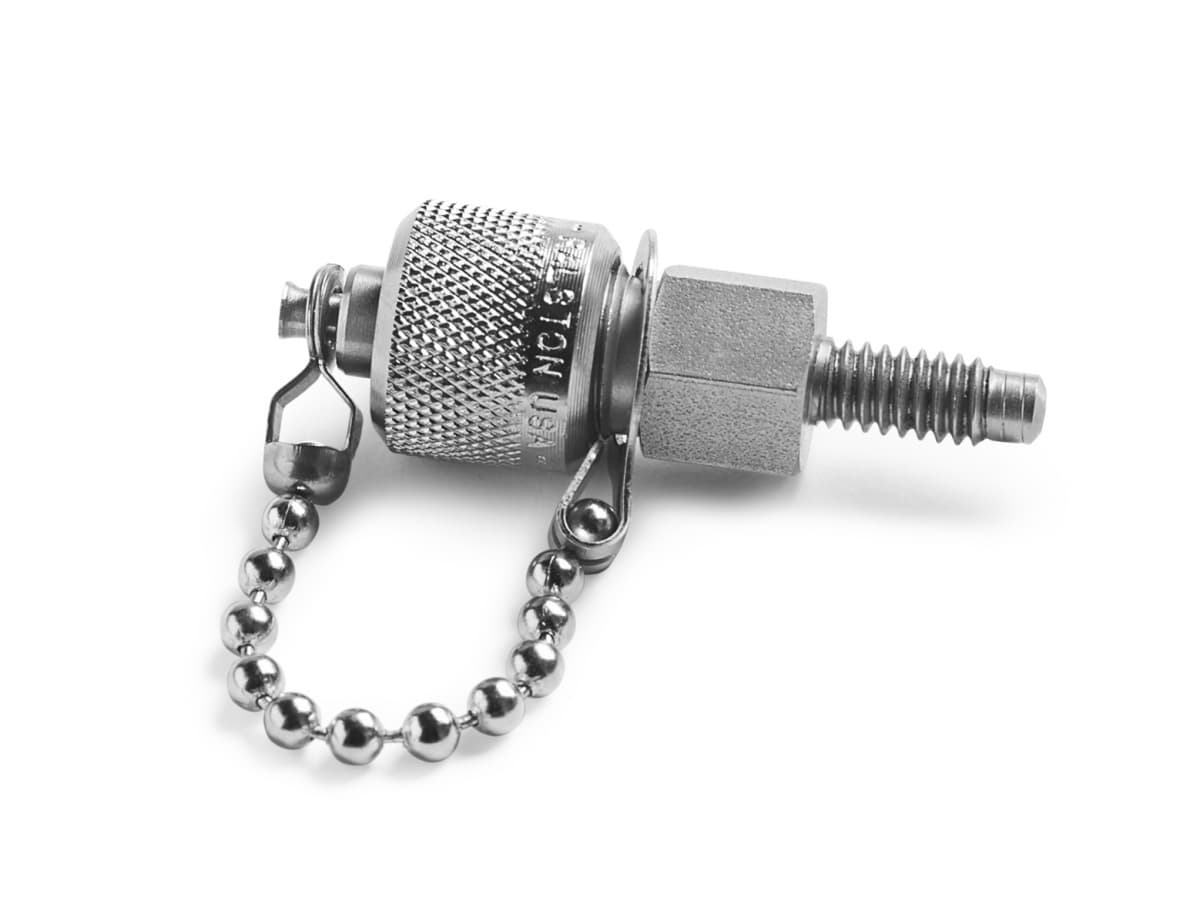

1/4"-20 UNC Male Bleed Port x male Quick-test adapter, with cap and chain, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Ideal for situations where frequent calibration of a DP transmitter using the bleeder port is required

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.63 oz / 46 grams
Length	2.52 in / 65 mm
Width	0.69 in / 18 mm
Height	0.69 in / 18 mm
Compatible with	Noshok 600 Series Block and Bleed Valves, Noshok 700 Series Block and Bleed Valves, Noshok 2070 Series Block and Bleed Valves, Noshok 2170 Series Block and Bleed Valves, Parker PGI V-526 Series Block and Bleed Valves, Parker PGI V-527 Series Block and Bleed Valves
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4-20 Male DP Transmitter/Gauge valve
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Cap and Chain	Yes
End 2 Direction	Left
