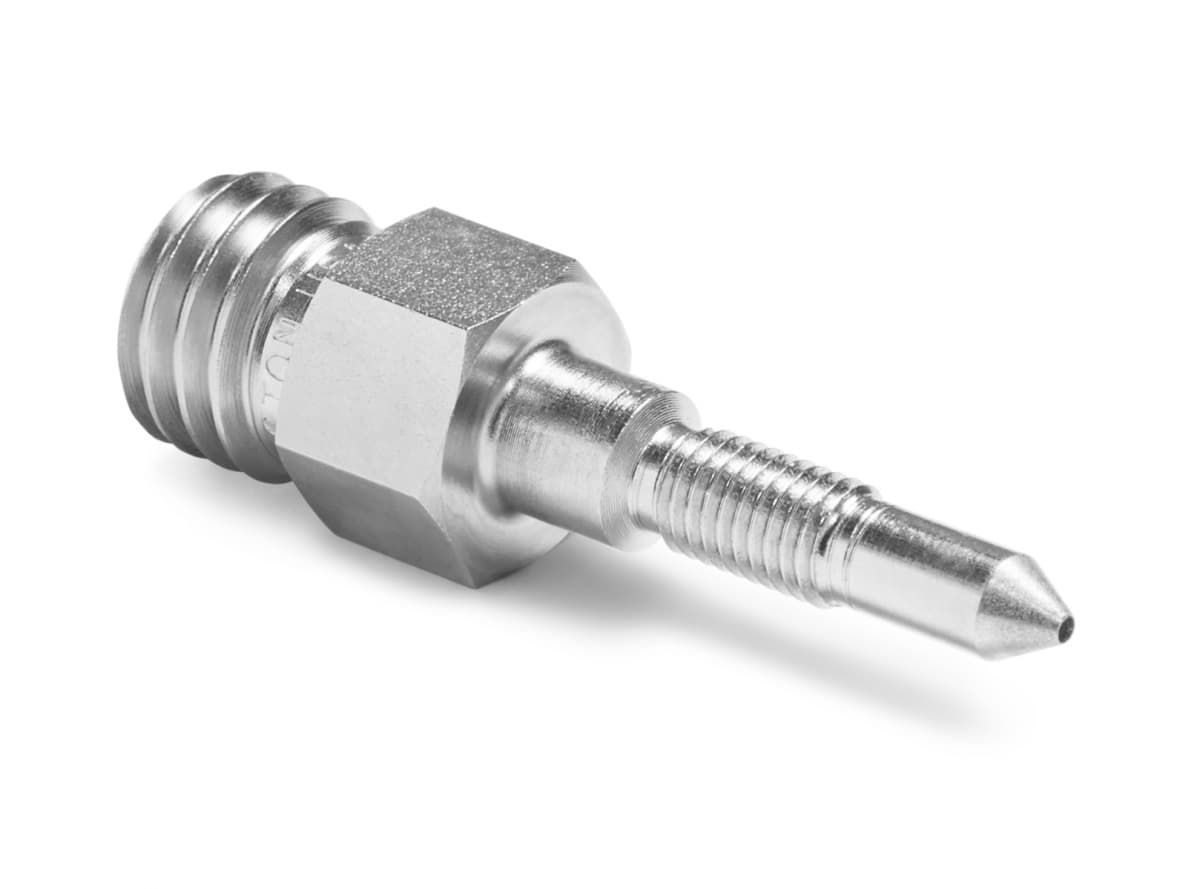

Part Number: XTHA-HNS0
1/4"-28 UNF DP Transmitter X male Quick-test Adapter, S.S.
Connect a Quick-test hose directly to a DP transmitter using the bleeder port when the transmitter is not mounted on a 3 or 5 valve manifold or when the manifold is not easily accessible.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 0.99 oz / 28 grams |
|---|---|
| Length | 2.26 in / 58 mm |
| Width | 0.65 in / 17 mm |
| Height | 0.65 in / 17 mm |
| Compatible with | Honeywell Smartline ST700 Pressure Transmitter, Honeywell Smartline ST800 Pressure Transmitter |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 9/16 In / 15 mm |
| End 1 Connector | 1/4-28 Male DP Transmitter/Gauge valve |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
