Gas Sampling Pumps

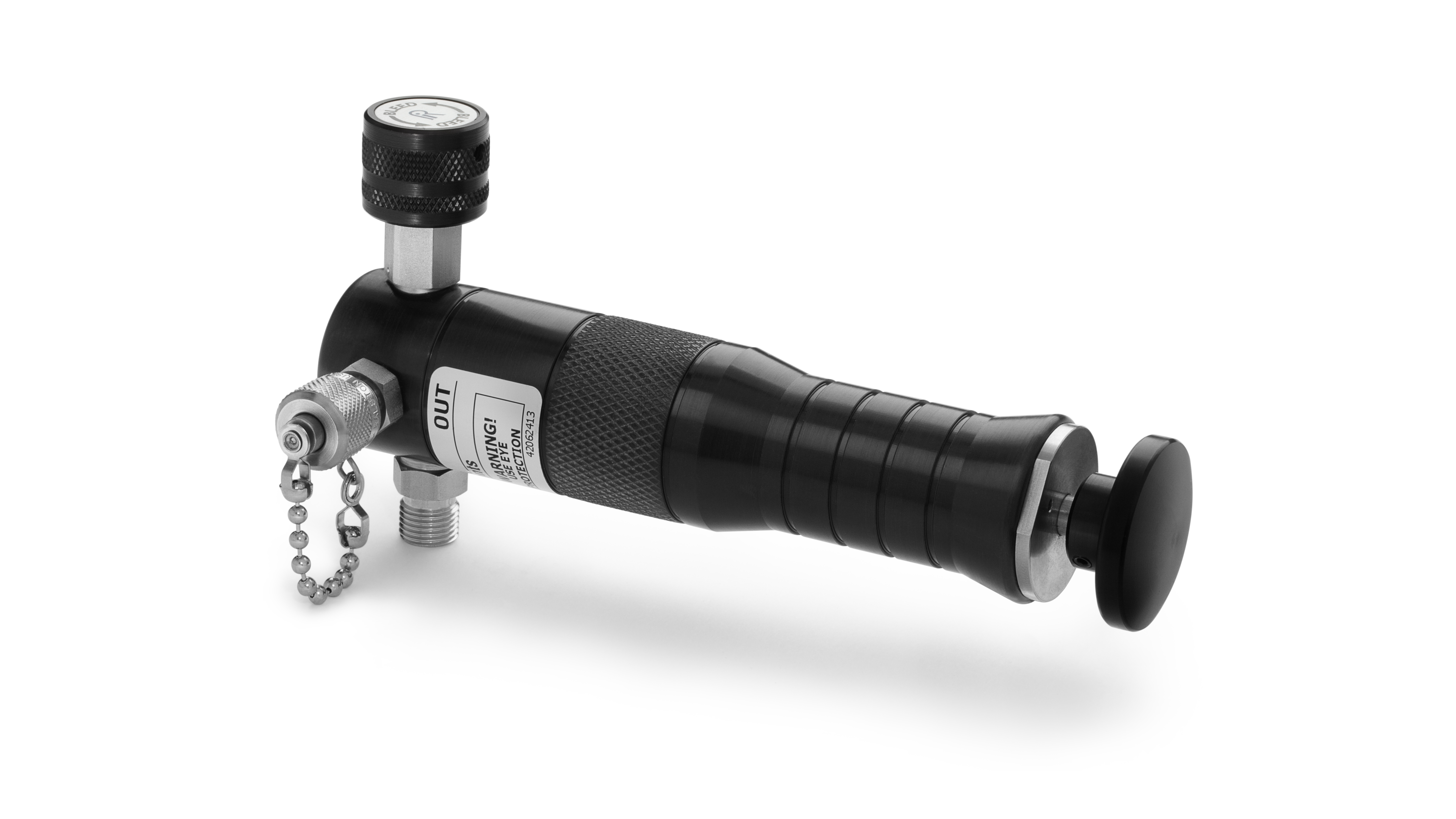

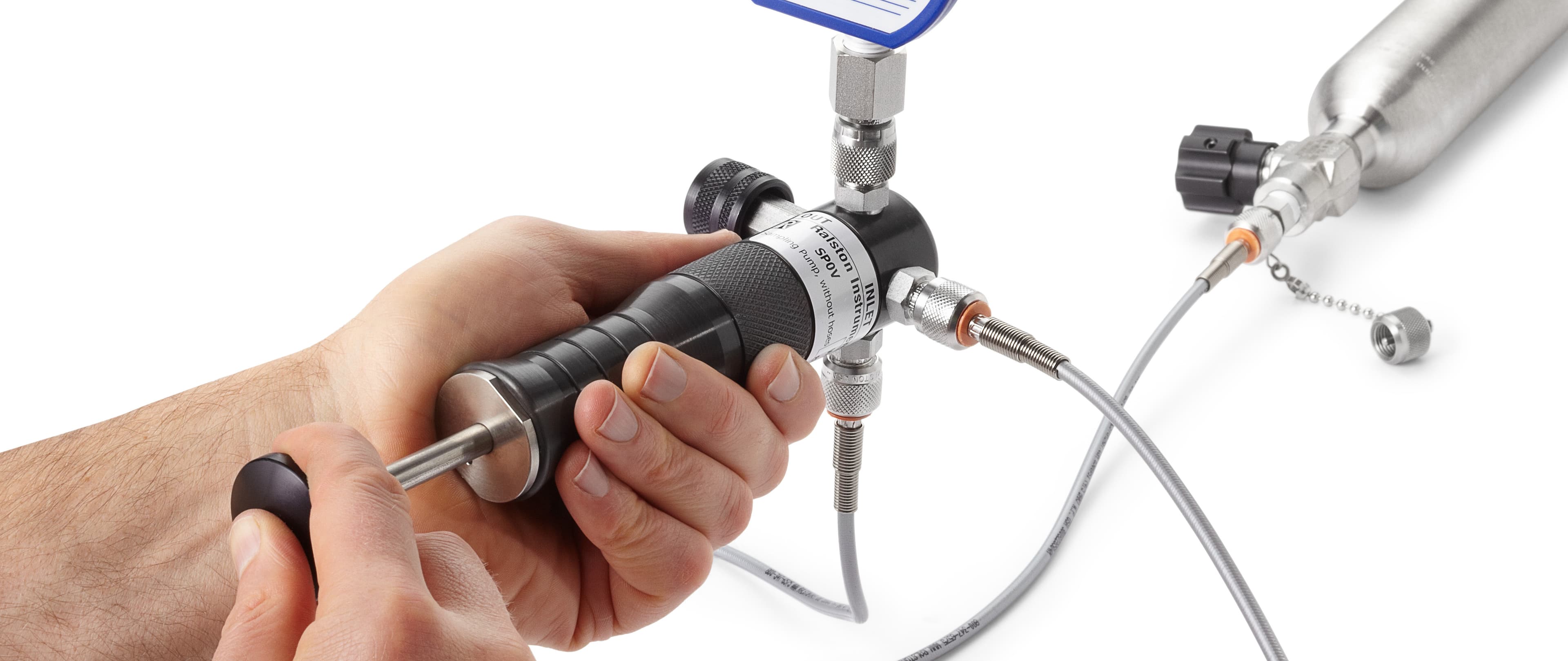

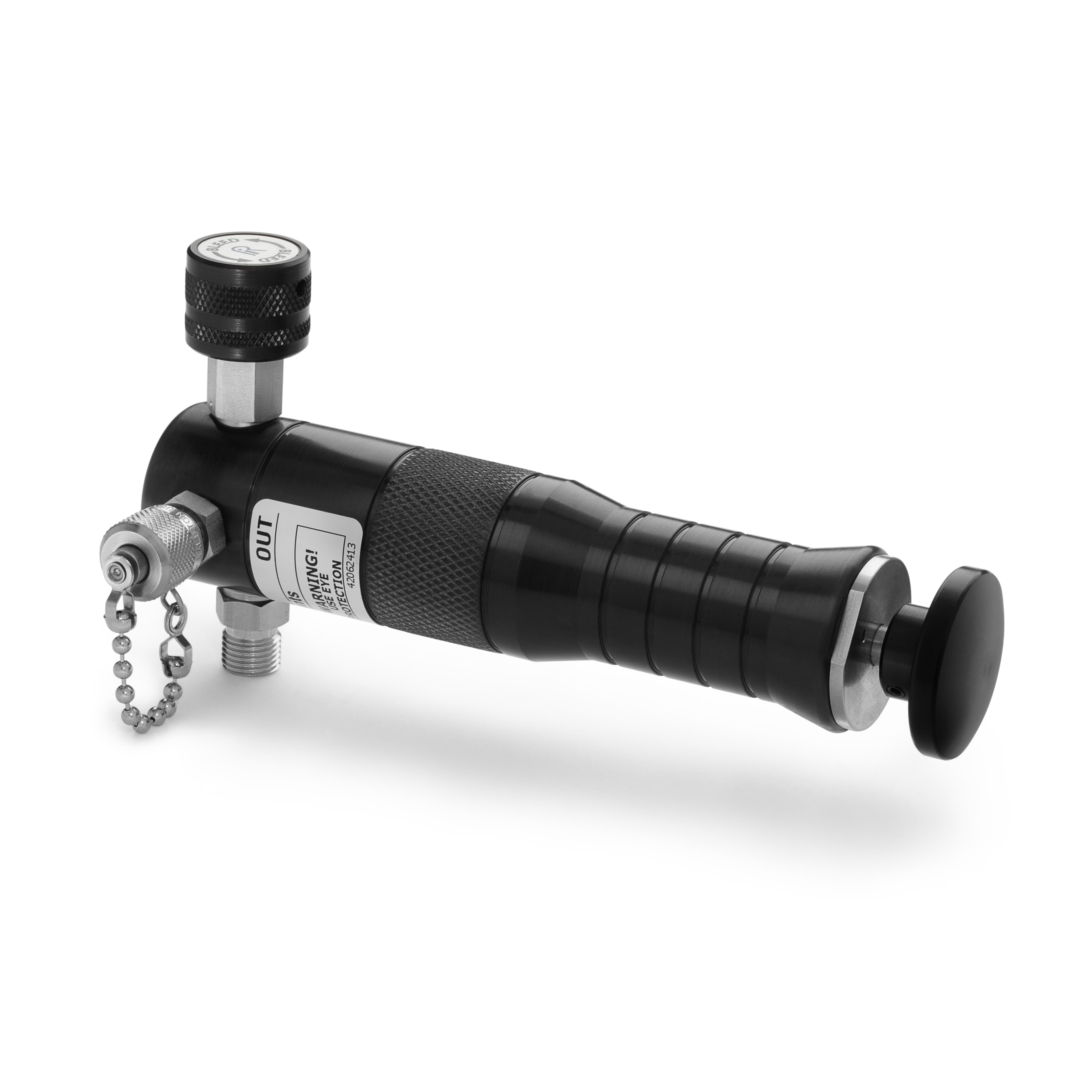

The SP0V gas sampling pump can pull low-pressure gas from a well and boost it to 25 psi to pump it into a sample cylinder

  • Hard Anodized aluminum body and stainless steel fittings so no issues with corrosion, cracking or cross contamination of the sample
  • Inlet and outlet hose has Nylon inner core tube which does not affect the sample
  • Low compression rate will not adversely affect the sample by bringing the gas close to the hydrocarbon dew point (25 psi/2 bar)
  • Hydrocarbon-free lubricant does not contaminate the sample with any foreign hydrocarbons
  • Designed in accordance with API MPMS Chapter 14.1 on natural gas sampling
  • Ideally suited for use with the purge and fill method of gas sampling
  • Made in USA

Gas Sampling Pumps

Model Materials Seal Materials Max Pressure Max Temperature Hose 1 Pressure Reference Process Connection Reference Connection Wetted Materials
SP0V-1MSA-6-3 Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2

SP0V-2FSA-6-3 Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2
316 Stainless Steel
SP0V-2MSA-6-3 Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2
316 Stainless Steel
SP0V-30PSIG-D Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2
316 Stainless Steel
SP0V-15PSIG-D Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2

SP0V-100PSIG-D Anodized Aluminum
Stainless Steel
Viton
100 PSI
130 °F
Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long
None
1/4
1/2
