Part Number: QTFT-2MS0-XH

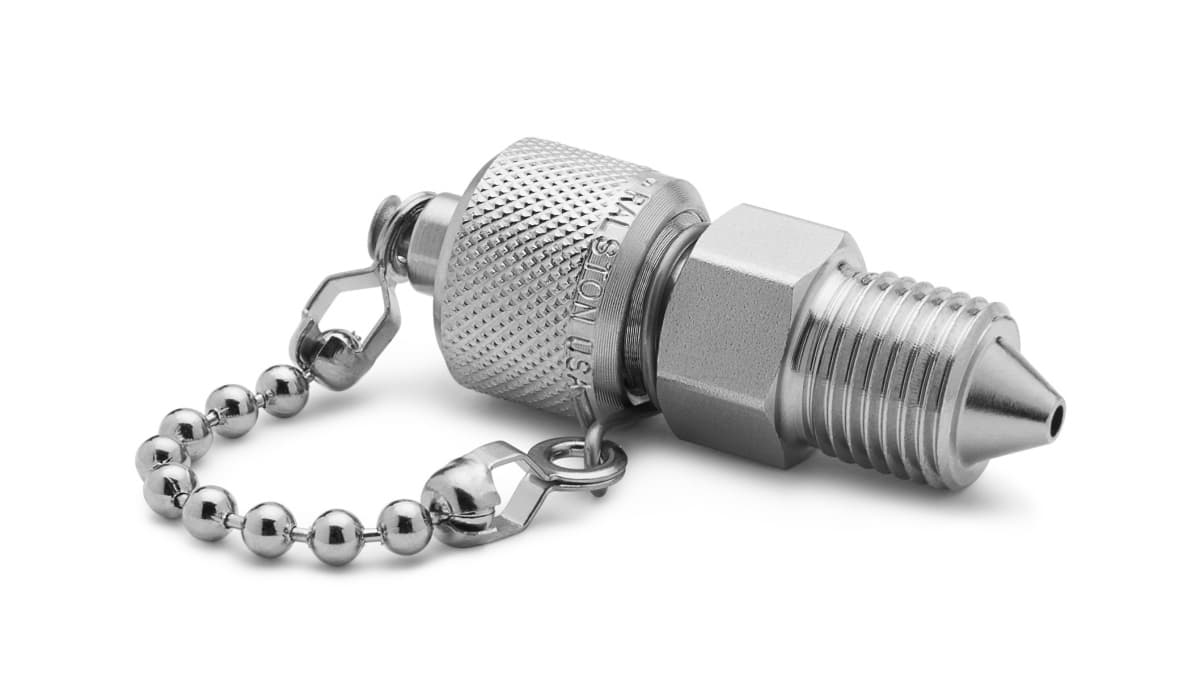

1/4" Male High Pressure x Male Quick-test fitting with cap and chain

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a Female High Pressure 60 degree coned and threaded pressure fitting to a Quick-test hose

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.32 oz / 66 grams
Length	2.22 in / 57 mm
Width	0.72 in / 19 mm
Height	0.72 in / 19 mm
Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	130 °F / 54 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	Male Quick-test
End 1 Cap and Chain	Yes
End 1 Direction	Left
End 2 Connector	9/16-18 (1/4" HM4) Male High Pressure
End 2 Direction	Left
