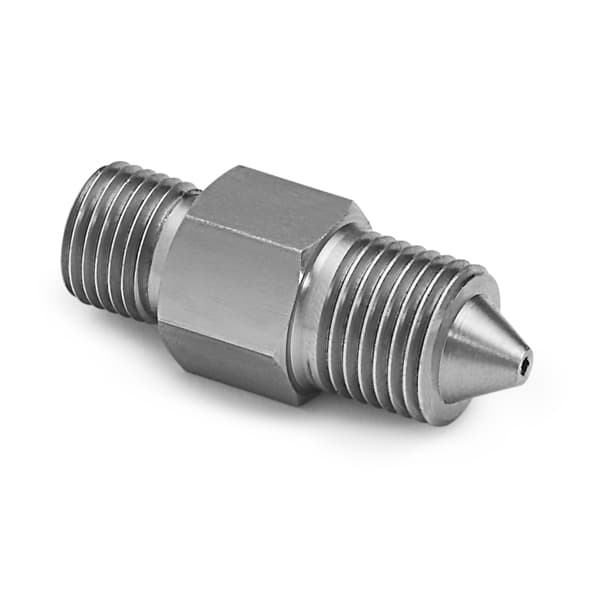

Part Number: QTHA-2MS0-XH

1/4" male High Pressure X male Quick-test, no check-valve, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a Female High Pressure 60 degree coned and threaded pressure fitting to a Quick-test hose

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.79 oz / 51 grams
Length	1.65 in / 42 mm
Width	0.63 in / 17 mm
Height	0.63 in / 17 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	9/16-18 (1/4" HM4) Male High Pressure
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
