Part Number: XTHA-2MSA-XH

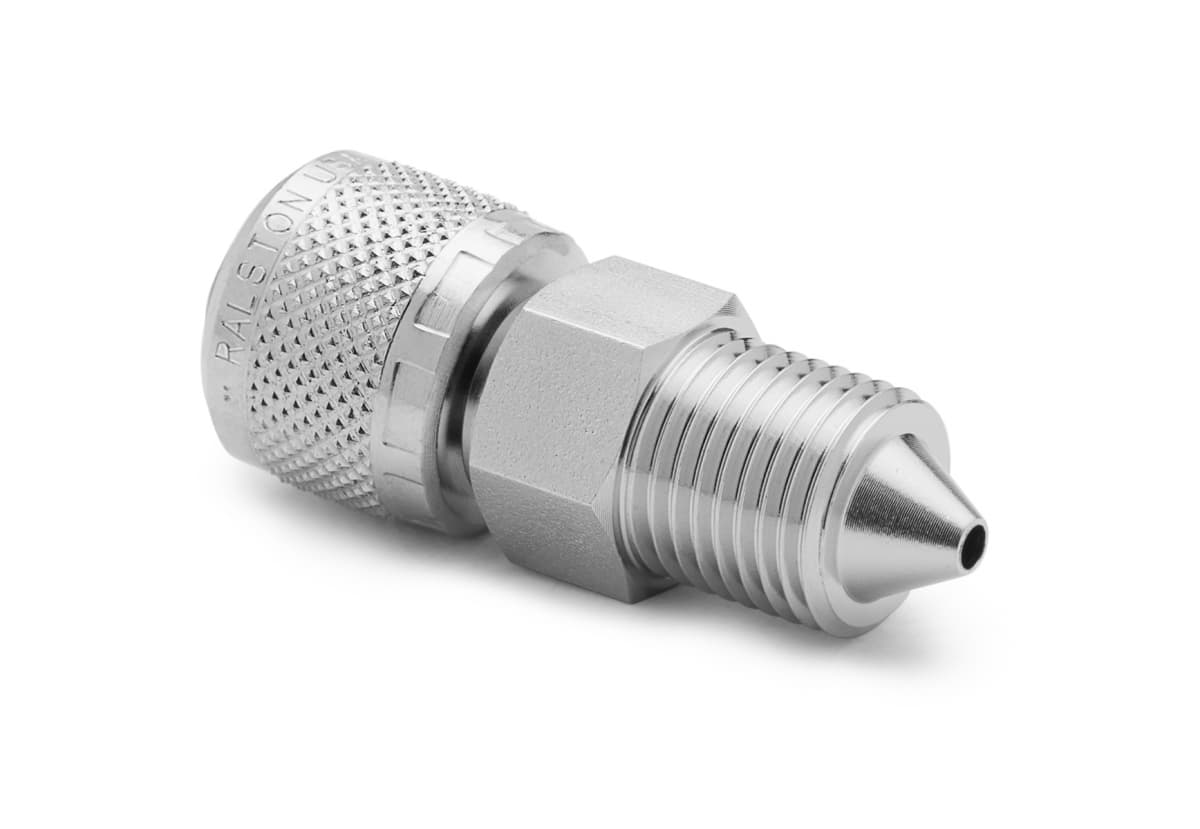

1/4" Male High Pressure x Female Quick-test XT Adapter, Stainless Steel

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a Female 60 degree coned and threaded pressure fitting to a Quick-test XT 10,000 psi hose

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.94 oz / 55 grams
Length	1.93 in / 50 mm
Width	0.75 in / 20 mm
Height	0.75 in / 20 mm
Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	316 Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
End 1 Connector	9/16-18 (1/4" HM4) Male High Pressure
End 1 Direction	Left
End 2 Connector	Female Quick-test XT
End 2 Direction	Left
