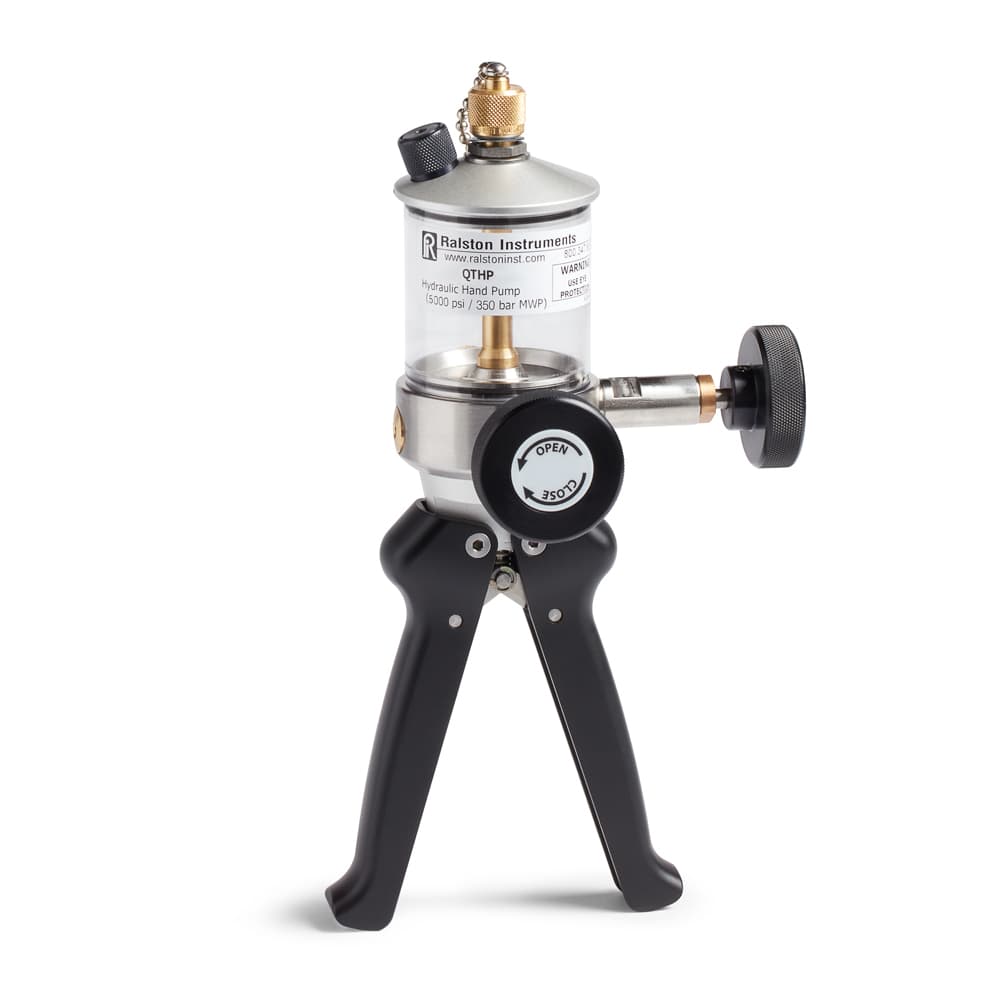

Hydraulic Hand Pumps

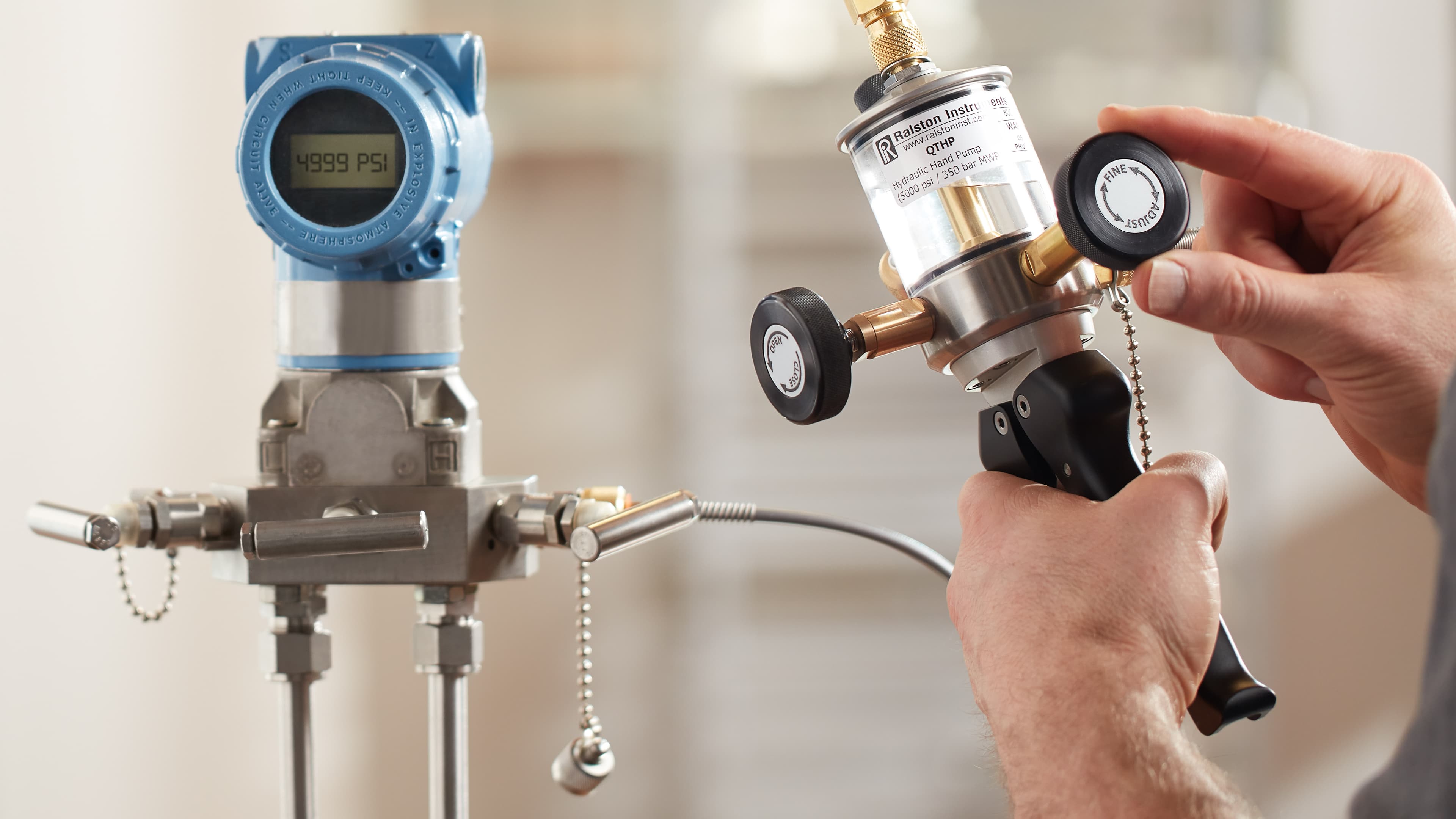

Simple, fast field testing for connecting a calibrator to a process connection. Connect this directly between the equipment to be tested and a reference. No need for a "T" joint.

  • Portable hand operated hydraulic pumps that easily generate up to 5000 psi (350 bar)
  • Two outlet ports allow user to connect to both device under test and external pressure calibrator thus eliminating a tee.
  • Fine Adjustment piston provides an easy way to achieve precise pressure
  • Vent valve is both durable and precise
  • Liquid reservoir holds enough fluid for multiple calibrations
  • Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
  • Rugged, all metal construction improves temperature and pressure stability
  • Made in U.S.A.

Hydraulic Hand Pump Models

Model Hose 1 Pressure Reference Process Connection Reference Connection Materials Seal Materials Max Pressure Min Temperature Max Temperature Max Vacuum
HP0V-0000 Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Male NPT
None
Anodized Aluminum
Brass
Plated Steel
Buna-N
Delrin
Synthetic Cork
Teflon
3000 PSI
0 °F
130 °F

XH0V-0000 Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Male NPT
None
Anodized Aluminum
Brass
Plated Steel
Buna-N
Delrin
Synthetic Cork
Teflon
5000 PSI
0 °F
130 °F

HPGV-0000 Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Plated Steel
Buna-N
Delrin
Synthetic Cork
Teflon
3000 PSI
0 °F
130 °F

HPGV-4GBW Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Male NPT
1/2" Female BSPP (G1/2)
Anodized Aluminum
Brass
Plated Steel
Buna-N
Delrin
Synthetic Cork
Teflon
3000 PSI
0 °F
130 °F

XHGV-0000 Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Male NPT
None
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
5000 PSI
0 °F
130 °F

XHGV-4GBW Quick-test Hose, Brass ends, 3ft / 0.9m long
None
1/4" Female BSPP (G1/4)
1/2" Female BSPP (G1/2)
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
5000 PSI
0 °F
130 °F

HP0V-3KPSIG-FL Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure FieldLab, 3000 psi / 200 bar / 20 MPa
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
3000 PSI
0 °F
130 °F

HP0V-1KPSIG-FL Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure FieldLab, 1000 psi / 70 bar / 7 MPa
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Powder Coated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
3000 PSI
0 °F
130 °F

HPGV-3KPSIG-D   Digital pressure gauge, 3000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
3000 PSI
0 °F
130 °F

HPGV-1KPSIG-D Quick-test Hose, Brass ends, 3ft / 0.9m long
Digital pressure gauge, 1000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Teflon
3000 PSI
0 °F
130 °F

XH0V-5KPSIG-FL Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure FieldLab, 5000 psi / 350 bar / 35 MPa
1/4" Male NPT
None
Anodized Aluminum
Brass
Plated Steel
Polycarbonate
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
5000 PSI
0 °F
130 °F
0 In Hg
XHGV-5KPSIG-D Quick-test Hose, Brass ends, 3ft / 0.9m long
Digital pressure gauge, 5000 PSIG Pressure
1/4" Male NPT
1/4" Female NPT
Anodized Aluminum
Brass
Plated Steel
Stainless Steel
Buna-N
Delrin
Synthetic Cork
Teflon
5000 PSI
0 °F
130 °F
