Part Number: QTHA-TVLB-HC

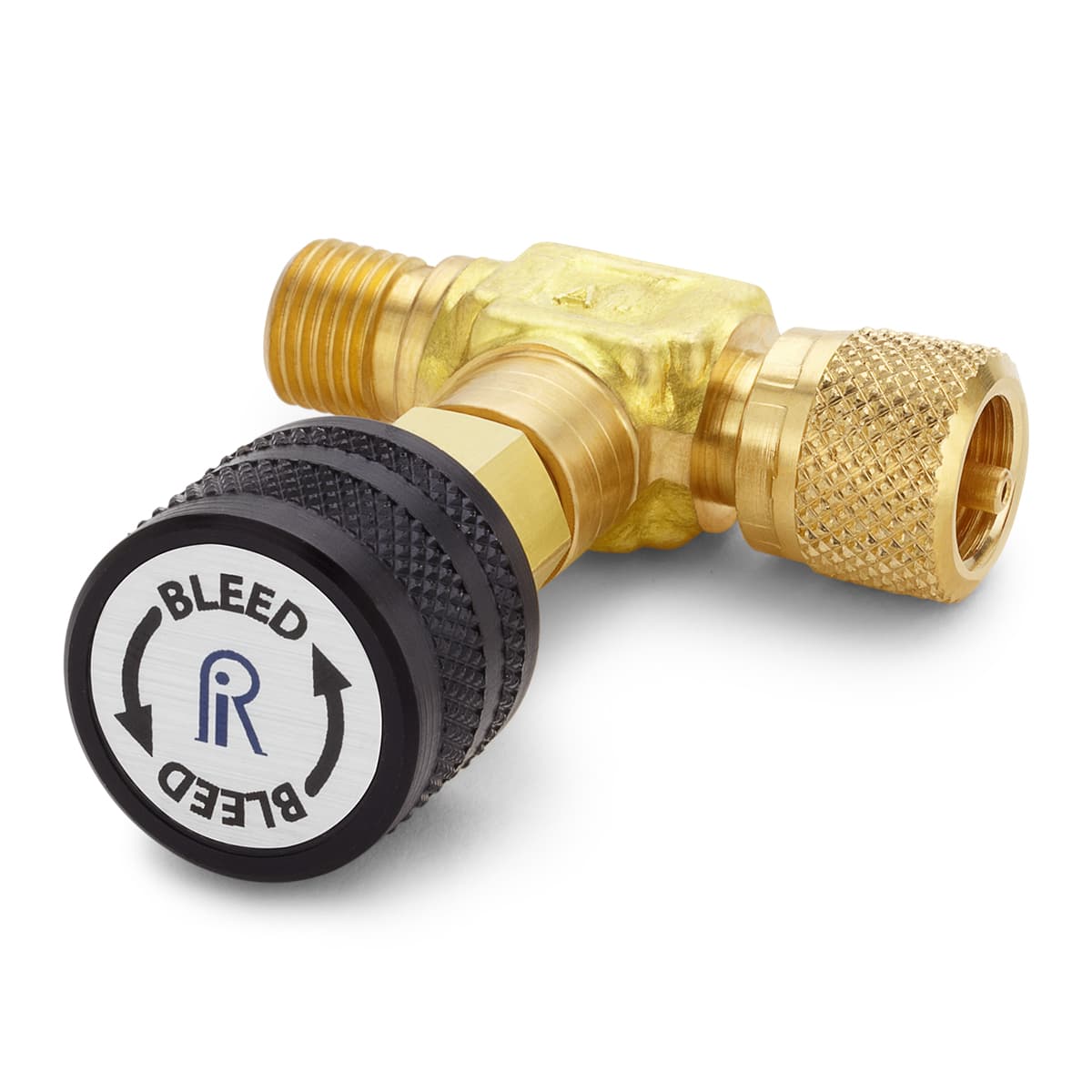

3000 PSI / 200 bar / 20 MPa Male Quick-test x female Quick-test in-line vent valve, brass
Use this 3000 PSI / 200 bar / 20 MPa brass, female in-line vent valve to slowly or quickly bleed pressure from a line after a calibration is complete.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 4.53 oz / 130 grams |
|---|---|
| Length | 2.43 in / 62 mm |
| Width | 2.03 in / 52 mm |
| Height | 1 in / 26 mm |
| Country of origin | USA |
| Has Vent Valve | Yes |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 3000 PSI / 200 bar / 20 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N, Delrin |
| End 1 Connector | Male Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Female Quick-test |
| End 2 Direction | Left |
