Part Number: QTHA-TVLS

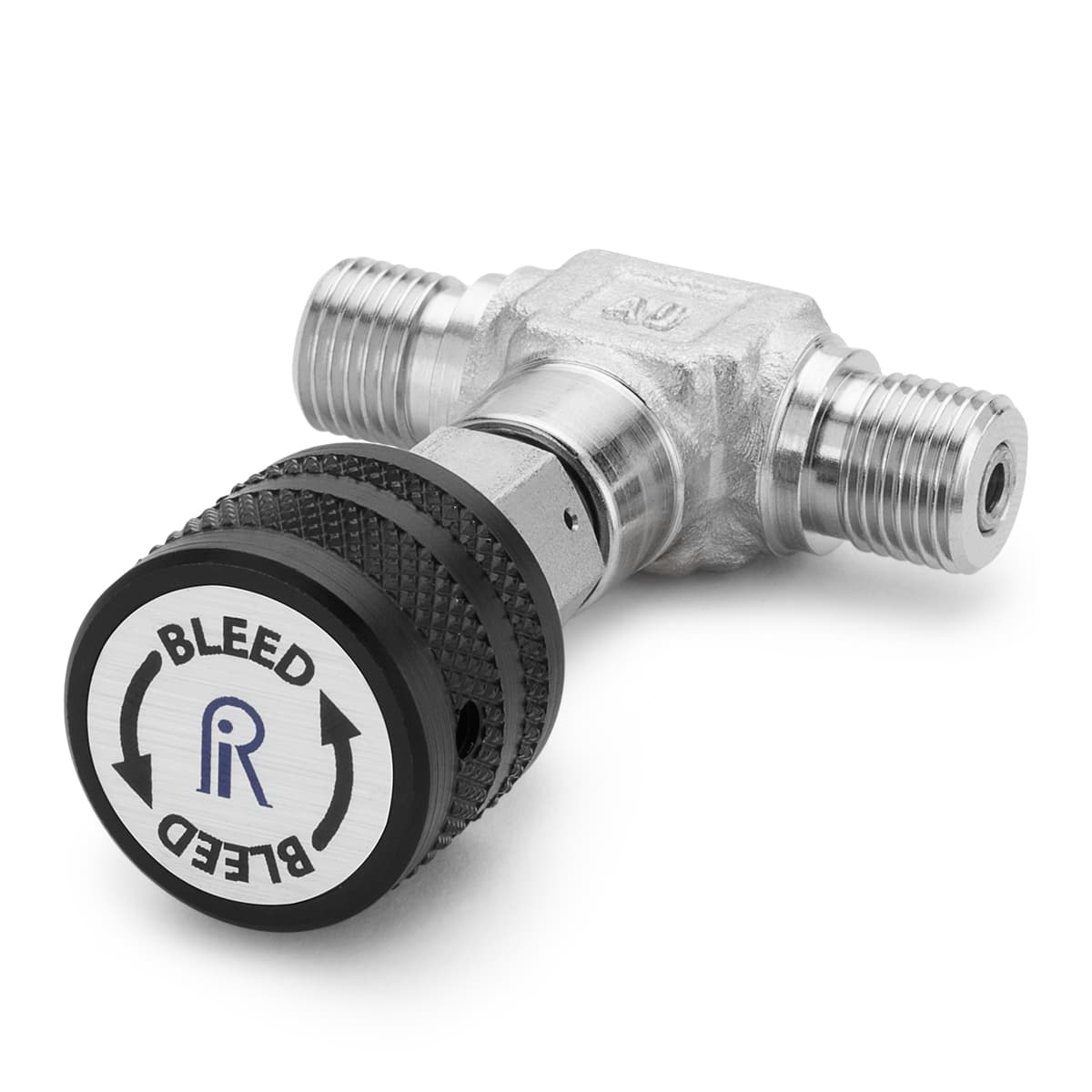

5000 PSI / 350 bar / 35 MPa Male Quick-test x male Quick-test in-line vent valve, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Use this stainless steel 5000 PSI / 350 bar / 35 MPa in-line vent valve to slowly or quickly bleed pressure from a line after a calibration is complete

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	4.21 oz / 120 grams
Length	2.52 in / 65 mm
Width	1.97 in / 51 mm
Height	1 in / 26 mm
Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Has Vent Valve	Yes
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Delrin
End 1 Connector	Male Quick-test
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
