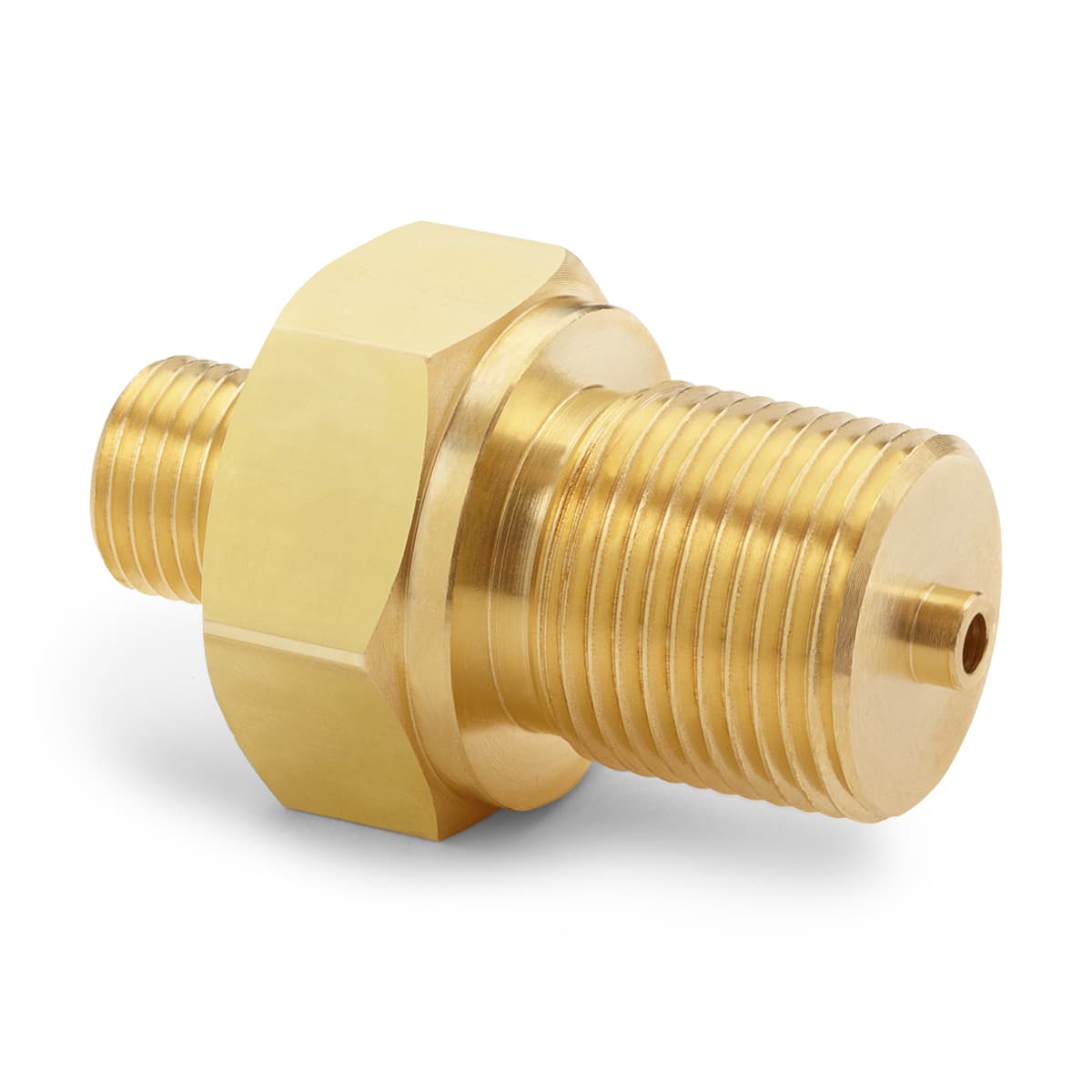

Part Number: QTHA-MMB0-2015
Male M20 x 1.5mm x Male Quick-test adapter, brass
Connect to Female Metric thread comparators, pressure pumps and devices under test
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 9.73 oz / 275 grams |
|---|---|
| Length | 1.93 in / 50 mm |
| Width | 1.21 in / 31 mm |
| Height | 1.21 in / 31 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 1.063 In / 28 mm |
| Wrench Size | 27 mm / 1 1/16 in |
| End 1 Connector | 20 x 1.5 Male Metric |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
