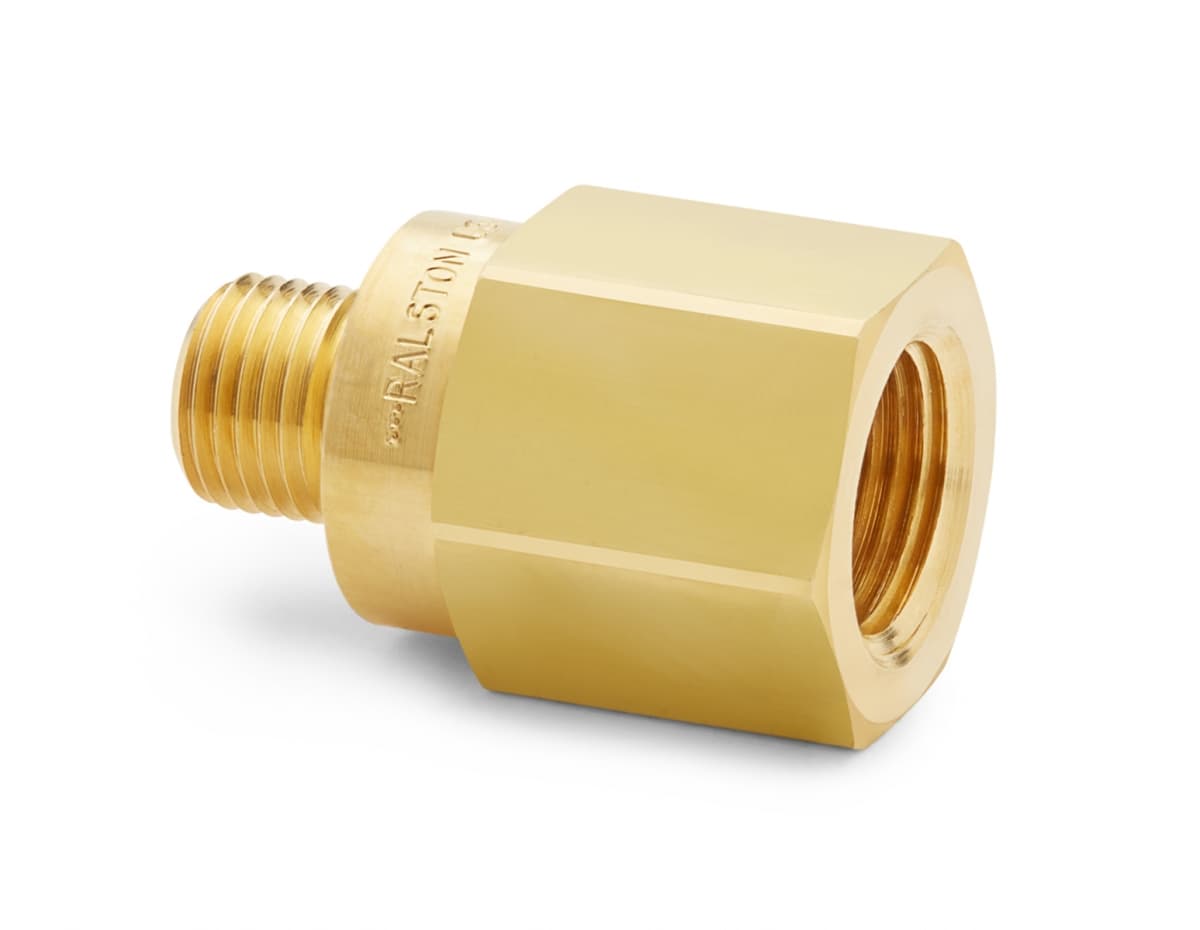

Part Number: QTHA-3FB0
3/8" female NPT x male Quick-test, no check-valve, brass
Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 3.22 oz / 91 grams |
|---|---|
| Length | 1.32 in / 34 mm |
| Width | 0.94 in / 24 mm |
| Height | 9.94 in / 26 cm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 15/16 In / 24 mm |
| Wrench Size | 24 mm / 15/16 in |
| End 1 Connector | 3/8" Female NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
