Part Number: QTHA-6FB0

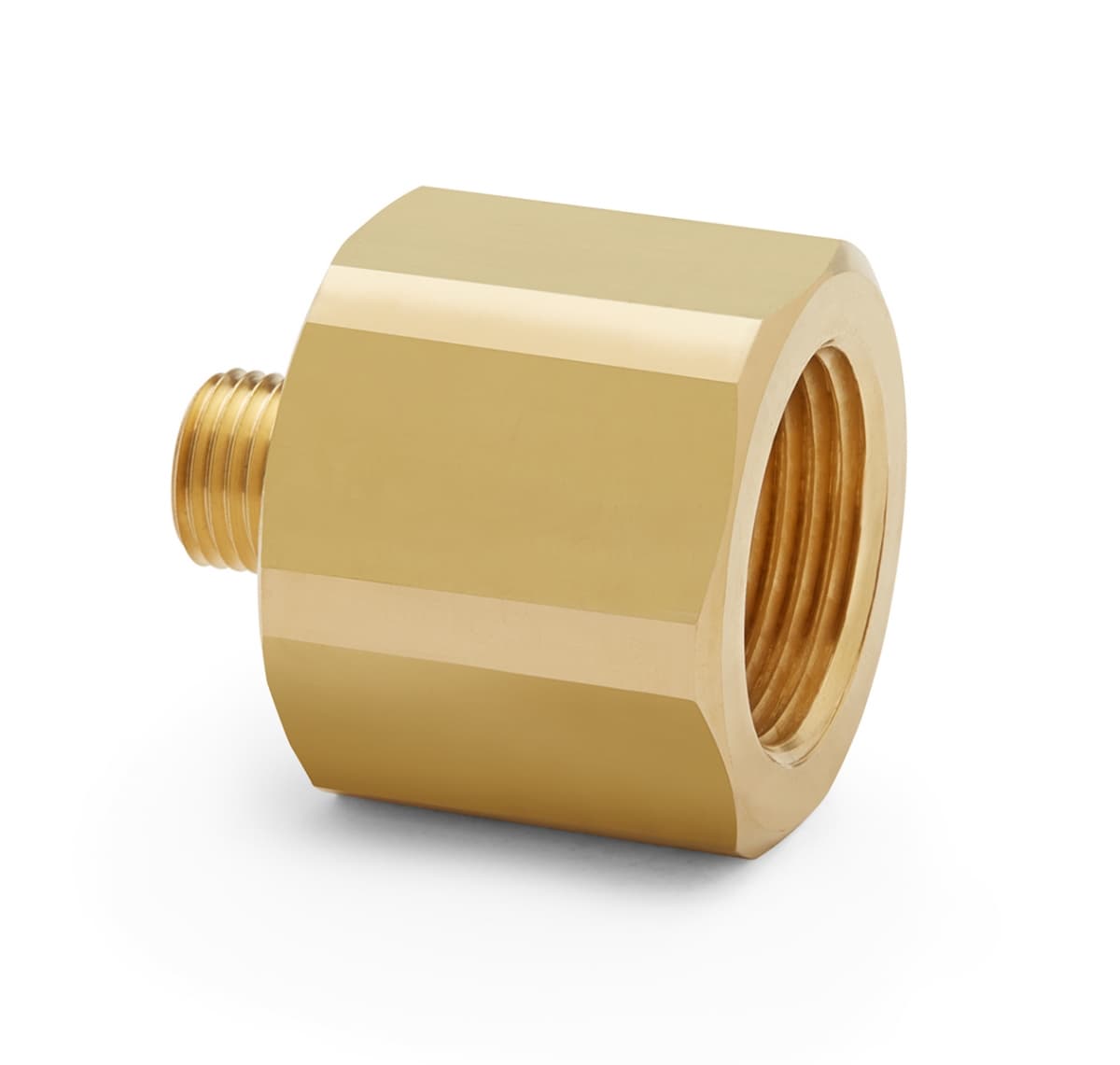

3/4" female NPT X male Quick-test, no check-valve, brass
Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 6.24 oz / 175 grams |
|---|---|
| Length | 1.59 in / 41 mm |
| Width | 1.37 in / 35 mm |
| Height | 1.37 in / 35 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 1-3/8 In / 4.00 mm |
| Wrench Size | 35 mm / 1 3/8 in |
| End 1 Connector | 3/4" Female NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
