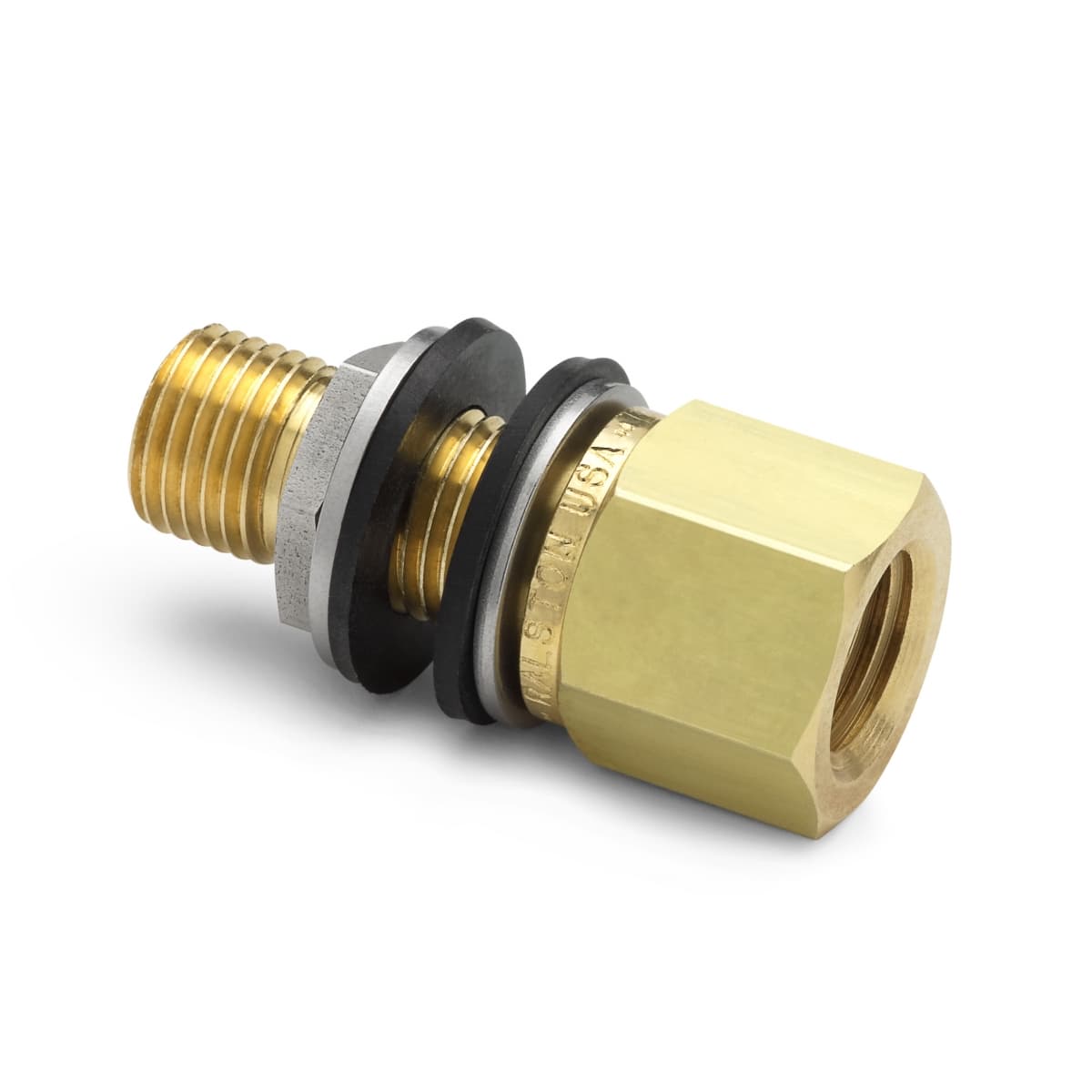

Part Number: QTHA-HFBB-2F
1/4" female NPT x male Quick-test bulkhead union, brass
Connect to Quick-test hose on one side and 1/4" Male NPT on the other
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.1 oz / 60 grams |
|---|---|
| Length | 1.79 in / 46 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 1 Bulkhead Seal | Yes |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
