Part Number: XTHA-2FS0

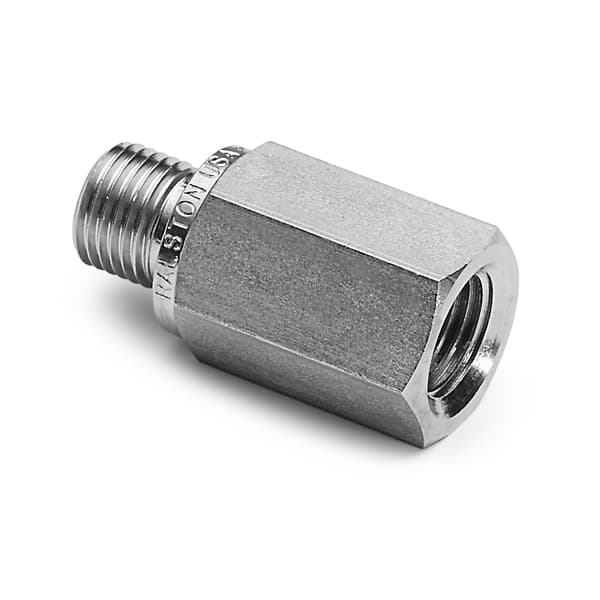

1/4" female NPT x male Quick-test XT Adapter, S.S.
Connect to pressure gauges, pressure transmitters and pressure calibrators to 10,000 psi
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.5 oz / 43 grams |
|---|---|
| Length | 1.33 in / 34 mm |
| Width | 0.85 in / 22 mm |
| Height | 0.85 in / 22 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
