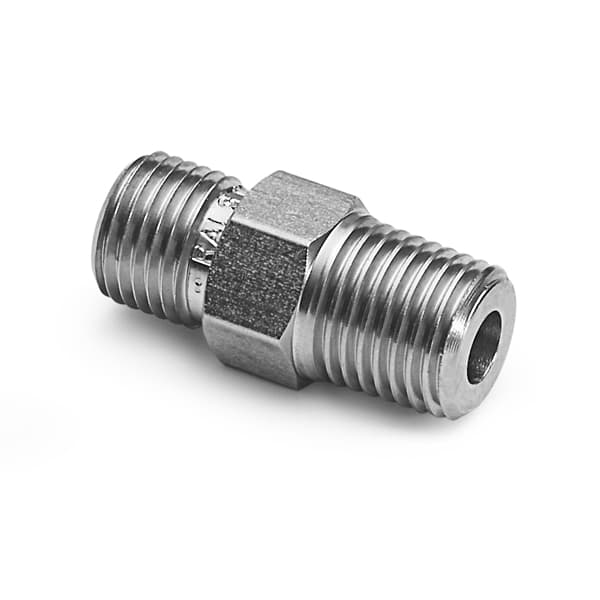

Part Number: QTHA-2MS1
1/4" male NPT x male Quick-test, with check-valve, S.S.
Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.04 oz / 29 grams |
|---|---|
| Length | 1.29 in / 33 mm |
| Width | 0.56 in / 15 mm |
| Height | 0.56 in / 15 mm |
| Country of origin | USA |
| Has Check Valve | Yes |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 3000 PSI / 200 bar / 20 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | 1/4" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
