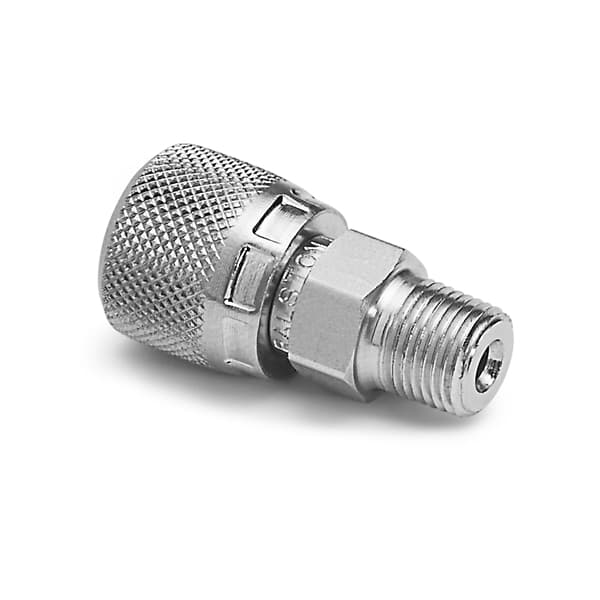

Part Number: XTHA-2MSA

1/4" male NPT x female Quick-test XT, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Quickly connect a pressure calibrator or other pressure device with Female NPT connections a to Ralston hand pump or nitrogen calibration equipment to 10,000 psi

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.68 oz / 48 grams
Length	1.76 in / 45 mm
Width	0.76 in / 20 mm
Height	0.76 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	Female Quick-test XT
End 2 Direction	Left
