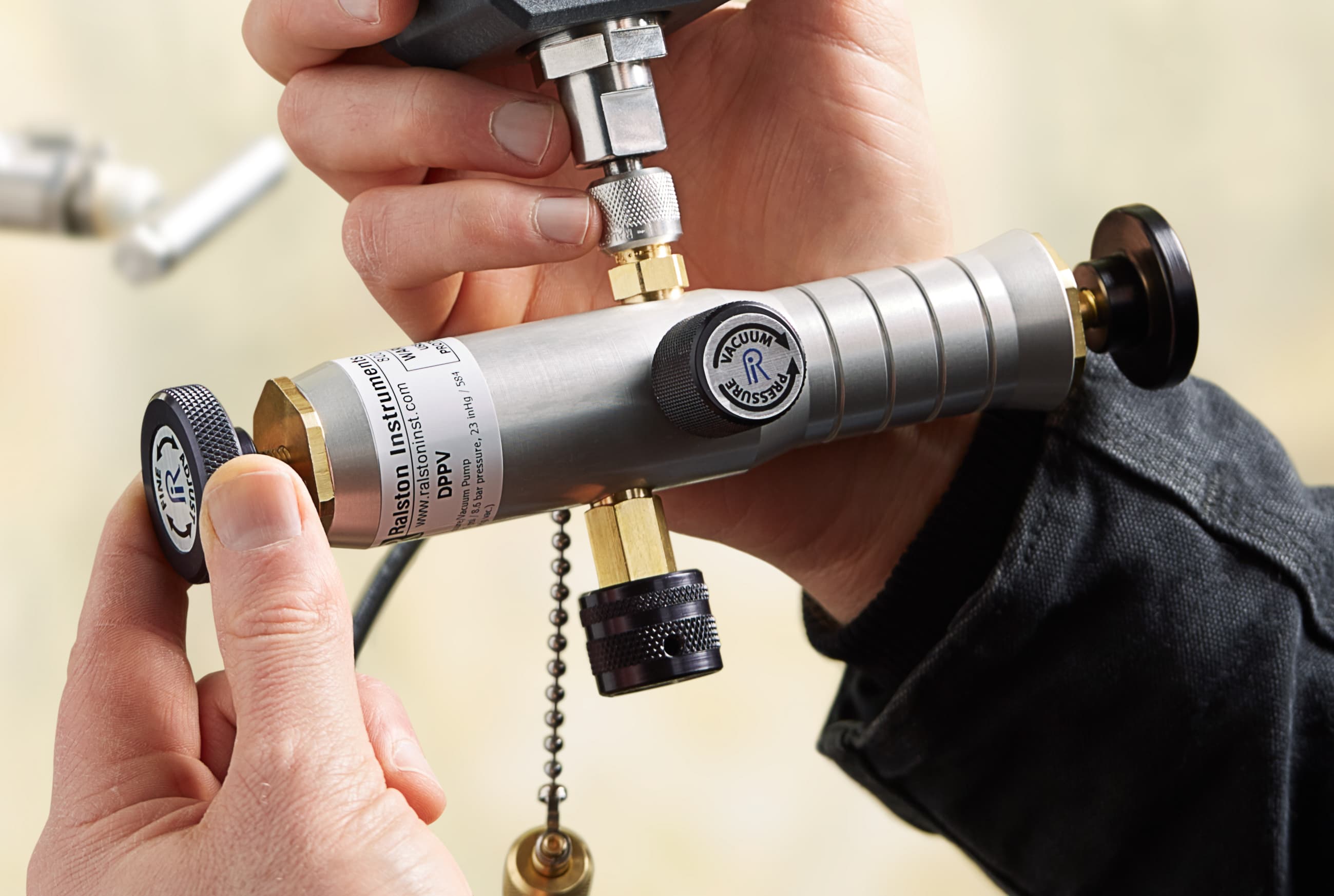

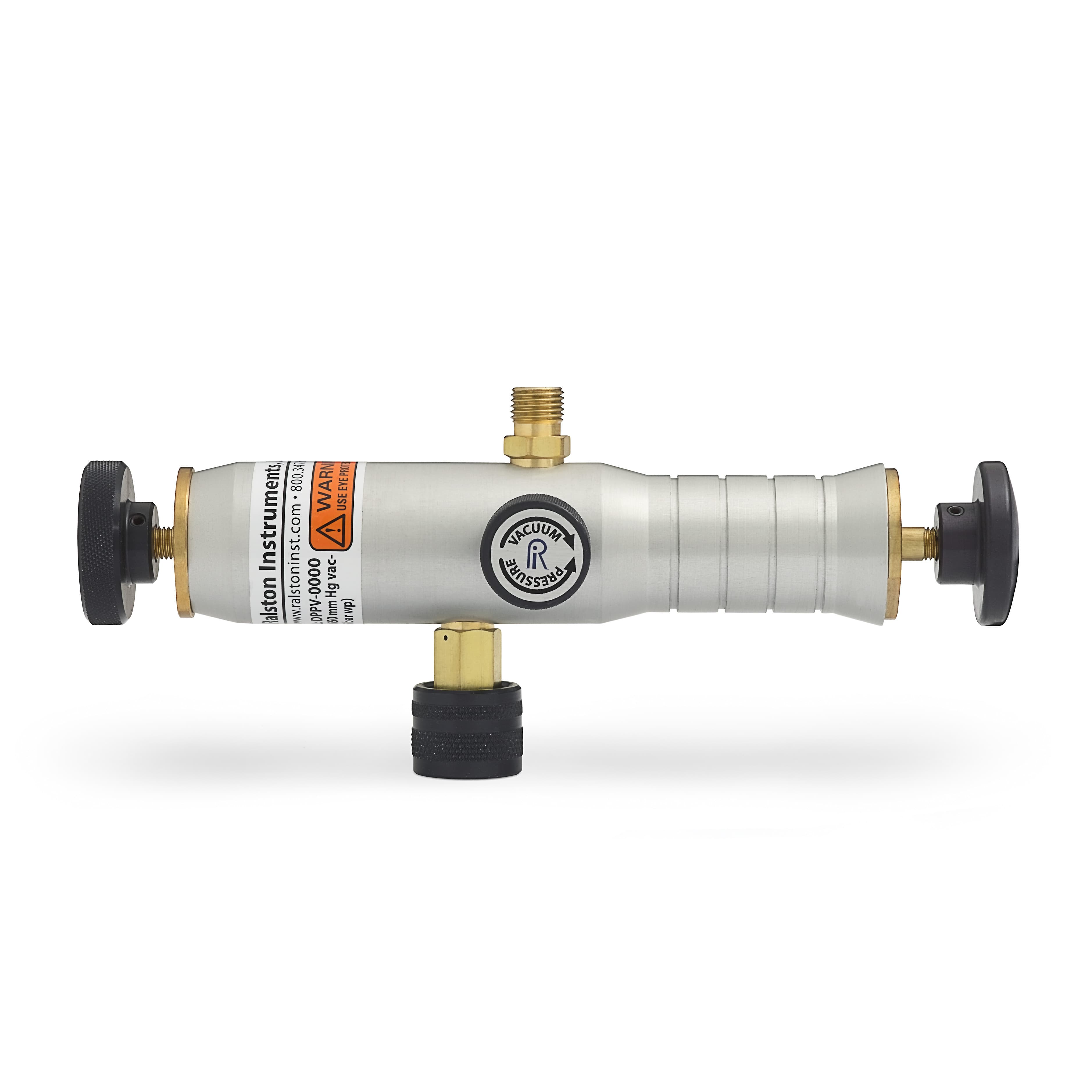

Pneumatic Pressure/Vacuum Hand Pumps

Generate vacuum or a pressure for calibrating low pressure or vacuum instrumentation using an external pressure calibrator

  • Generate either 125 psi (8.6 bar) pressure or 23 InHg (584 mm Hg) vacuum with the same pump
  • Unique design allows the user to convert from pressure to vacuum by simply twisting a knob, even with gloves on
  • Two outlet ports allow connection to reference pressure gauge or pressure calibrator as well as device under test, thus eliminating a tee
  • Large volume fine adjustment piston provides precise control, even at very low pressures
  • Precisely vent pressure with soft seated bleed valve
  • Made in U.S.A.

Pneumatic Pressure/Vacuum Hand Pumps

Model Pressure Reference Process Connection Reference Connection Max Pressure Max Vacuum Materials Seal Materials Min Temperature Max Temperature
DPPV-0000 None
1/4" Male NPT
None
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-1MBA None
1/4" Male NPT
1/8" Male NPT
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-2MBA None
1/4" Male NPT
1/4" Male NPT
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-2FBA None
1/4" Male NPT
1/4" Female NPT
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Teflon
0 °F
130 °F
DPPV-2FBA-RG None
1/4" Female BSPP (G1/4)
1/4" Female BSPP (G1/4)
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-3FBA-RG None
1/4" Female BSPP (G1/4)
3/8" Female BSPP (G3/8)
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-4FBA-RG None
1/4" Female BSPP (G1/4)
1/2" Female BSPP (G1/2)
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Buna-N
Delrin
Teflon
0 °F
130 °F
DPPV-PM15PSIG-D Digital pressure gauge, 15 PSIG Pressure
1/4" Male NPT
1/4" Female NPT
125 PSI
23 In Hg
Anodized Aluminum
Brass
Stainless Steel
Delrin
Teflon
0 °F
130 °F
