Part Number: XREG-3KPSIG

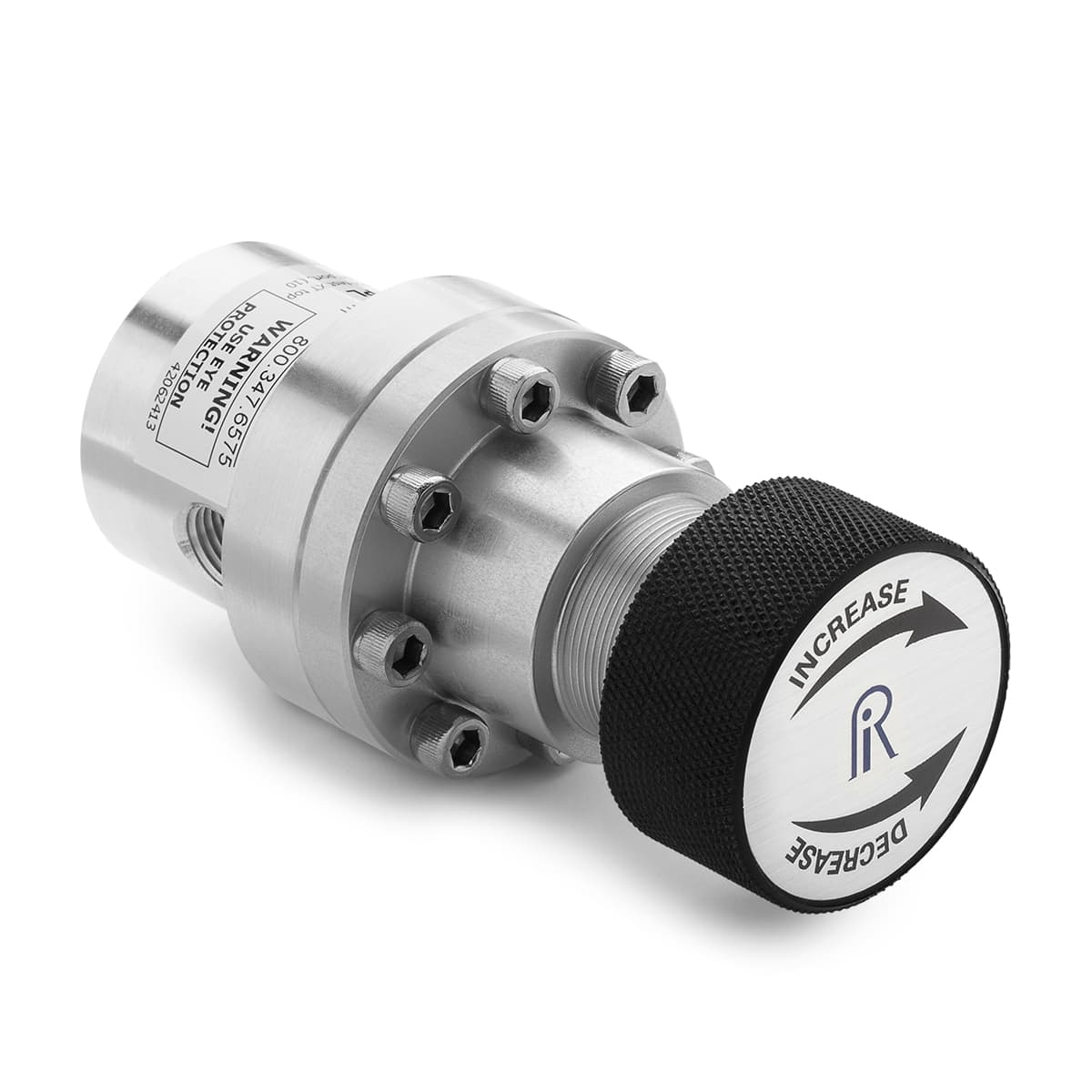

Pneumatic Pressure Regulator (3000 psi / 210 bar) output, 1/4" FNPT ports

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Piston sensed pressure reducing regulator for use in providing a stable pressure to precision pressure control devices.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.64 lbs / 740 grams
Length	1.81 in / 46 mm
Width	0.99 in / 26 mm
Height	0.99 in / 26 mm
Country of origin	USA
Inlet Port	1/4" Female NPT (ASME B1.20.1), 1/4" Female NPT (ASME B1.20.1)
Materials	Anodized Aluminum, Stainless Steel
Max Operating Temperature	130 °F / 54 °C
Max Pressure	3000 PSI / 200 bar / 20 MPa
Min Operating Temperature	0 °F / -18 °C
Outlet Port	1/4" Female NPT (ASME B1.20.1), 1/4" Female NPT (ASME B1.20.1)
Seal Materials	Buna-N, Delrin, Teflon
End 1 Connector	1/4" Female NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	1/4" Female NPT (ASME B1.20.1)
End 2 Direction	Left
End 3 Connector	1/4" Female NPT (ASME B1.20.1)
End 3 Direction	Left
End 4 Connector	1/4" Female NPT (ASME B1.20.1)
End 4 Direction	Left
