Part Number: QTFT-0.5MB0

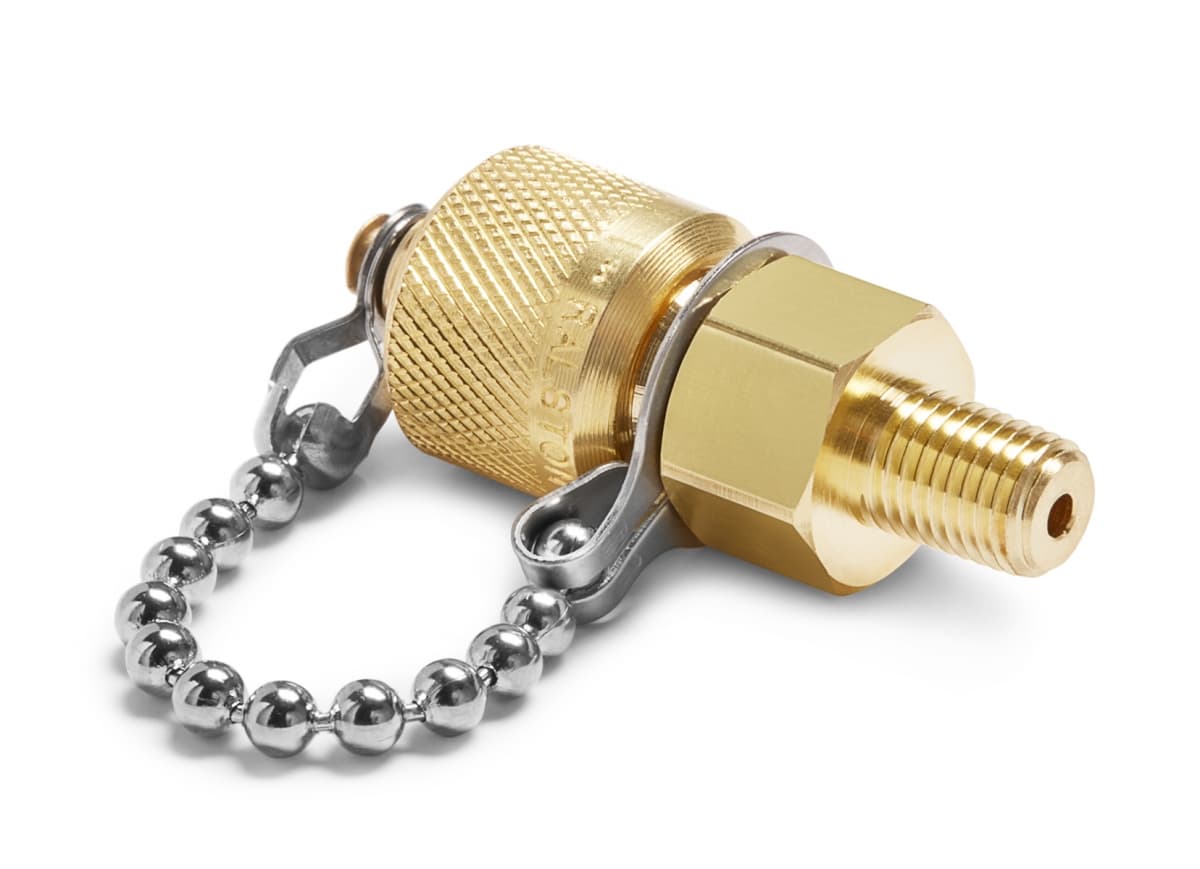

1/16" male NPT x male QT, no check-valve, with cap and chain, brass
A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
Weight | 1.79 oz / 51 grams |
---|---|
Length | 1.81 in / 46 mm |
Width | 0.69 in / 18 mm |
Height | 0.69 in / 18 mm |
Country of origin | USA |
Dimensions A | 0 In / 0.00 mm |
Dimensions B | 0 In / 0.00 mm |
Has Cap and Chain | Yes |
Materials | Brass |
Max Operating Temperature | 140 °F / 60 °C |
Max Pressure | 5000 PSI / 350 bar / 35 MPa |
Min Operating Temperature | 0 °F / -18 °C |
Seal Materials | Buna-N |
Wrench Size | 9/16 In / 15 mm |
Wrench Size | 15 mm / 9/16 in |
End 1 Connector | Male Quick-test |
End 1 Cap and Chain | Yes |
End 1 Direction | Left |
End 2 Connector | 1/16" Male NPT (ASME B1.20.1) |
End 2 Direction | Left |
