Part Number: QTHA-2MBL

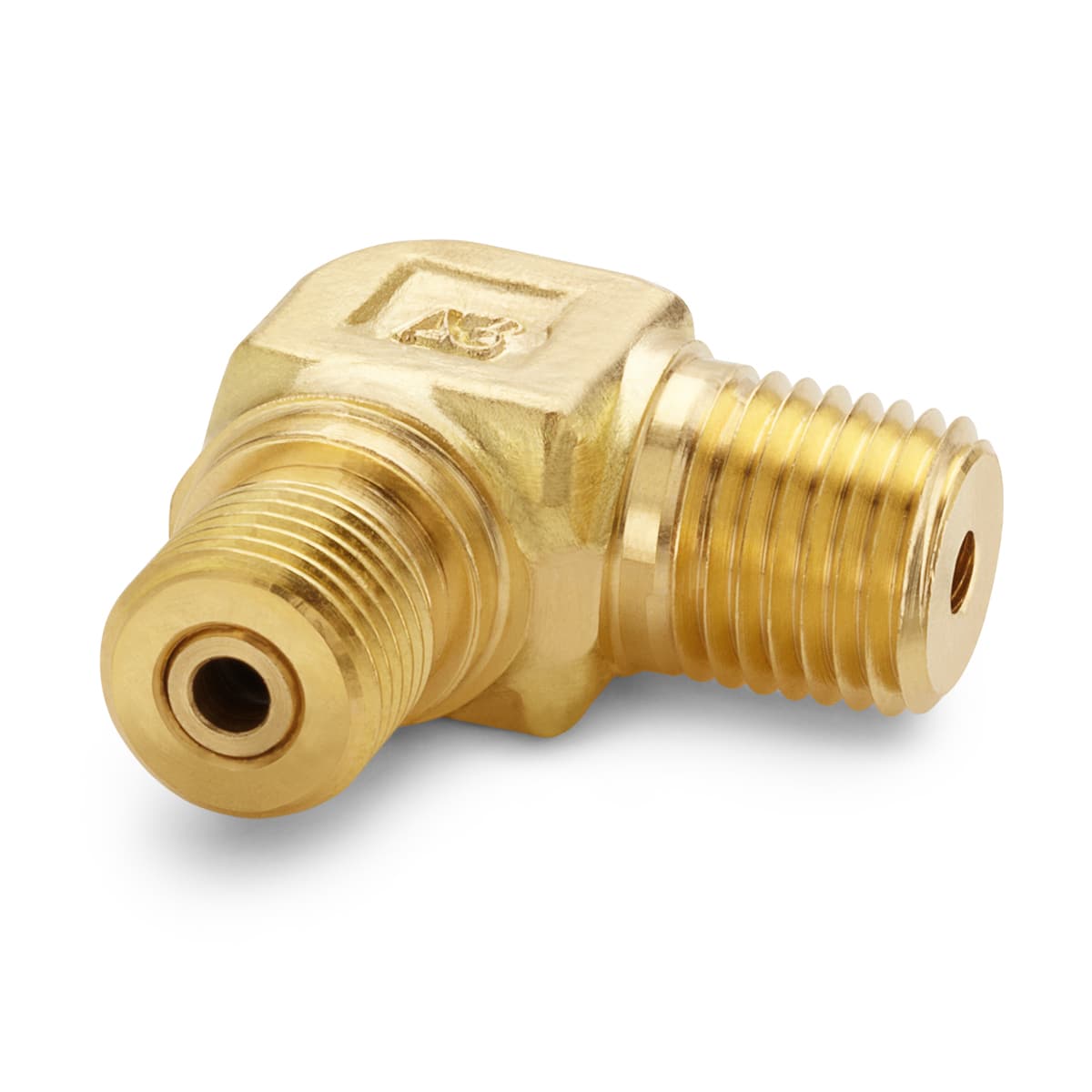

1/4" male NPT x male Quick-test 90 degree elbow, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a hose to an adapter that is in a hard to reach place

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.06 oz / 58 grams
Length	1.37 in / 35 mm
Width	1.22 in / 31 mm
Height	0.56 in / 15 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
