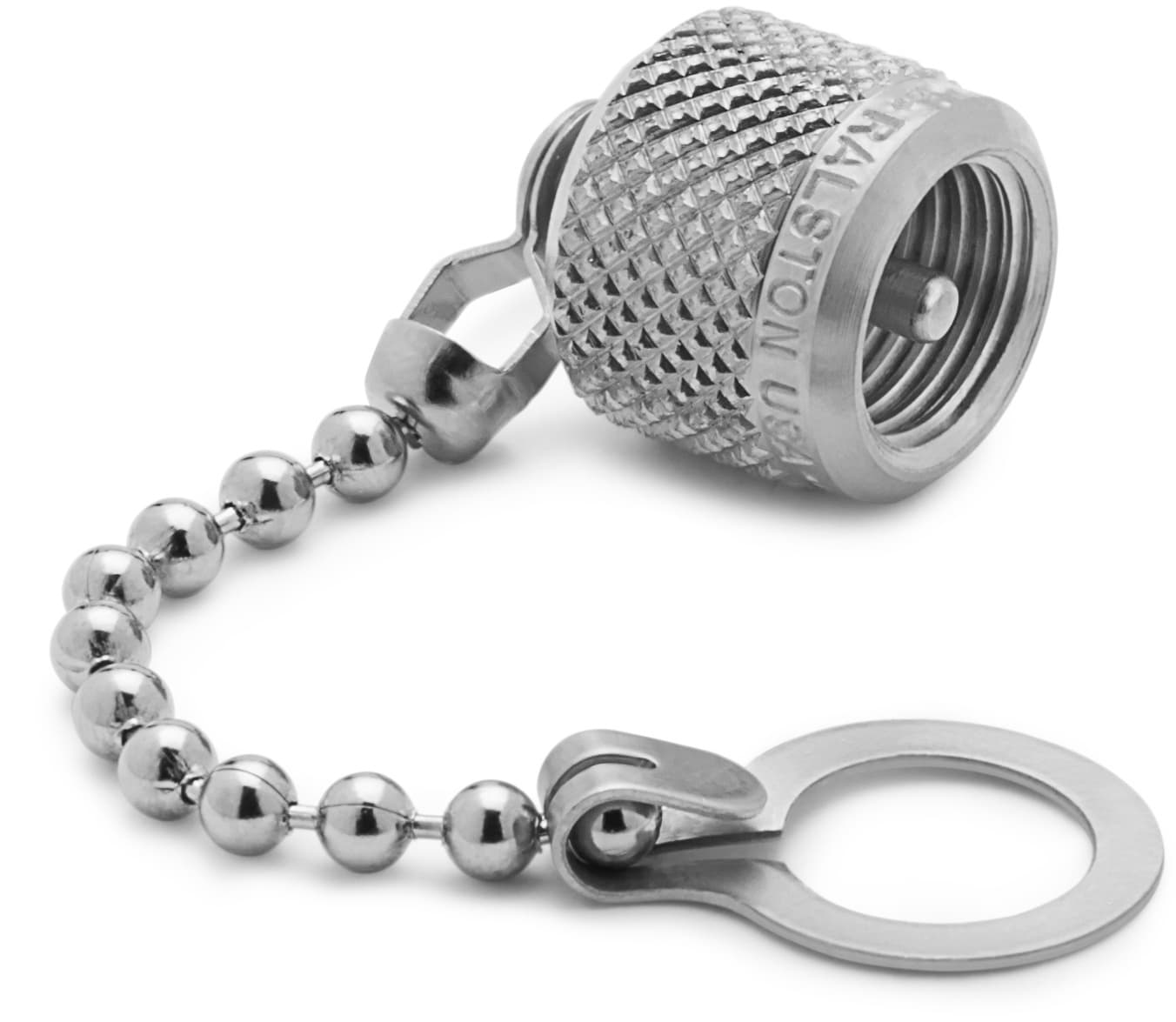

Quick-test Cap and Chains
Cap and chain for any male Quick-test adapter with a cap and chain
- Seals any male Quick-test adapter to 5000 psi (345 bar)
- Install on any Quick-test adapter for permanent installation in the field
- Made in USA
![CGA 580 Cylinder Valve Adapters](https://ralstoninst-cms.imgix.net/landing/QTFT-CAPS-cropped.jpg?auto=compress%2Cformat&crop=focalpoint&domain=ralstoninst-cms.imgix.net&fit=crop&fp-x=0.5&fp-y=0.5&h=130&ixlib=php-3.3.1&w=150&s=032d160e710404732470d8e2ea507ad4)
Quick-test Cap and Chain Models
Model | Weight | Length | Width | Height | Country of origin | Has Cap and Chain | Materials | Max Operating Temperature | Max Pressure | Max Vacuum | Min Operating Temperature | End 1 Connector | End 1 Bulkhead Seal | End 1 Cap and Chain | End 1 Quick Disconnect | End 1 Direction | Has Check Valve |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QTFT-CAPB | 0.88 oz / 25 grams | 0.85 in / 22 mm | 0.7 in / 18 mm | 0.7 in / 18 mm | USA | Yes | Brass | 225 °F / 105 °C | 5000 PSI / 350 bar / 35 MPa | 0 InHg / 0.0 kPa | 0 °F / -18 °C | Female Quick-test | No | Yes | No | Left | |
QTFT-CAPS | 0.82 oz / 23 grams | 0.85 in / 22 mm | 0.7 in / 18 mm | 0.7 in / 18 mm | USA | Stainless Steel | 225 °F / 105 °C | 5000 PSI / 350 bar / 35 MPa | 0 InHg / 0.0 kPa | 0 °F / -18 °C | Female Quick-test | No | Yes | No | Left | No |
