Part Number: QTHA-HCCB

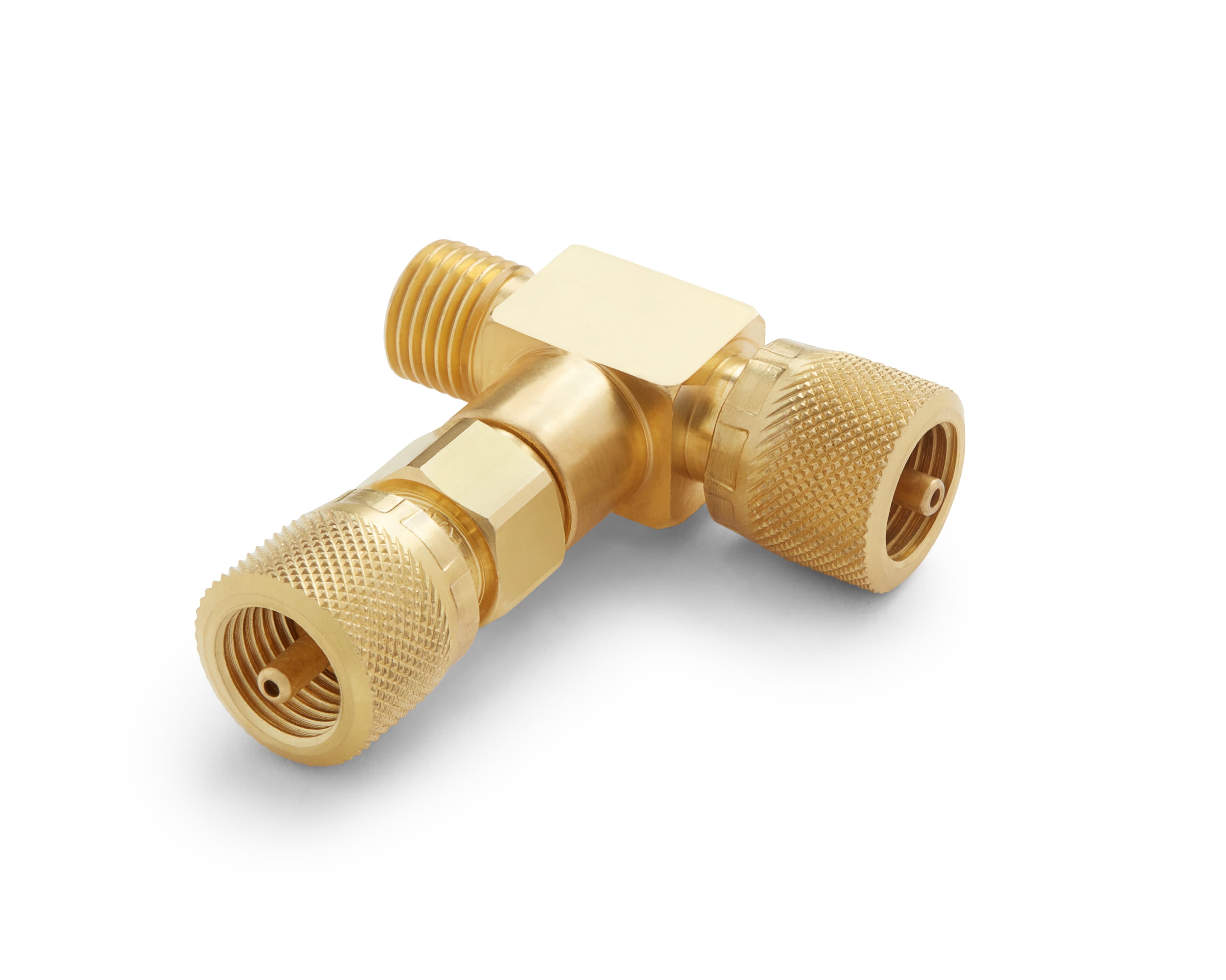

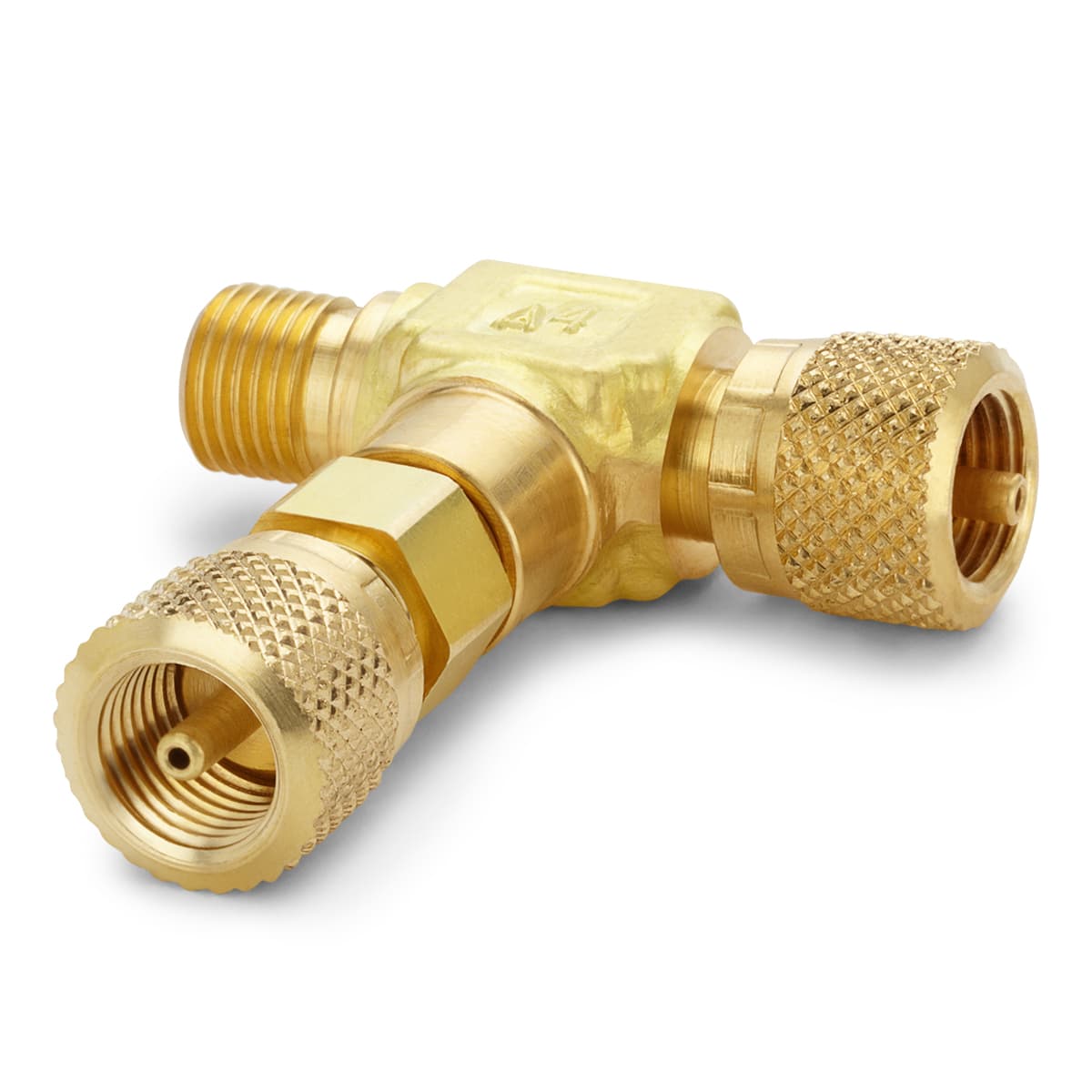

Male Quick-test run x female Quick-test run x female Quick-test branch tee, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect three hoses or a combination of 3 hoses, adapters and hand pumps or manifolds

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	3.94 oz / 110 grams
Length	2.2 in / 56 mm
Width	2.41 in / 62 mm
Height	2.41 in / 62 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	Male Quick-test
End 1 Direction	Left
End 2 Connector	Female Quick-test
End 2 Direction	Left
End 3 Connector	Female Quick-test
End 3 Direction	Left
