Part Number: QTHA-HCHS

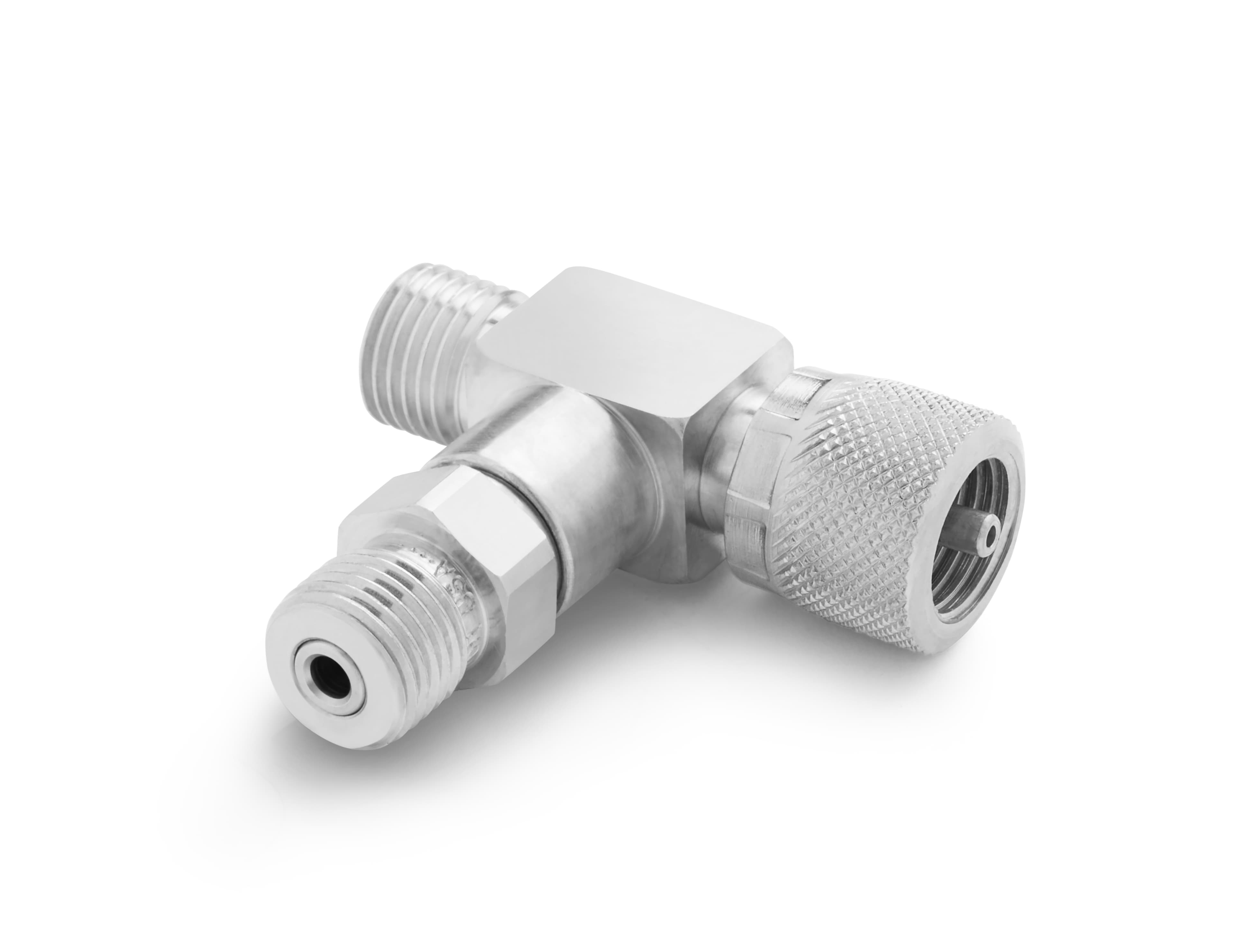

Tee - male QT run x female QT run x male QT branch tee, stainless steel

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect three hoses or a combination of 3 hoses, adapters and hand pumps or manifolds

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	3.1 oz / 88 grams
Length	2.02 in / 52 mm
Width	1.83 in / 47 mm
Height	0.64 in / 17 mm
Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	Male Quick-test
End 1 Direction	Left
End 2 Connector	Female Quick-test
End 2 Direction	Left
End 3 Connector	Male Quick-test
End 3 Direction	Left
