Part Number: QTHA-HSTB-1F

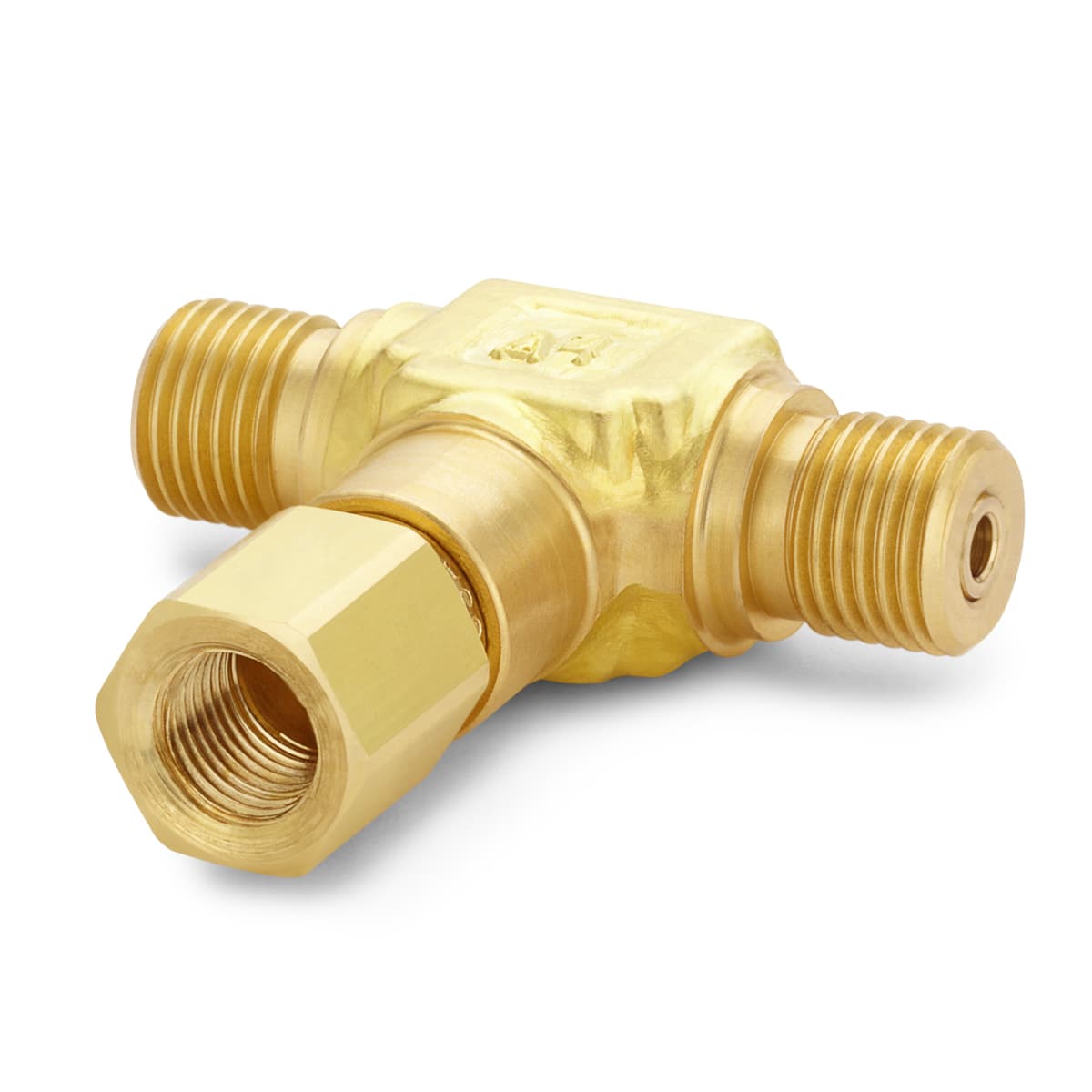

Male Quick-test run x male Quick-test run x 1/8" female NPT branch tee, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect three hoses or a combination of 3 hoses, adapters and hand pumps or manifolds

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.62 oz / 74 grams
Length	1.66 in / 43 mm
Width	1.61 in / 41 mm
Height	0.64 in / 17 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	Male Quick-test
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
End 3 Connector	1/8" Female NPT (ASME B1.20.1)
End 3 Direction	Left
