Part Number: XTHA-HHSB

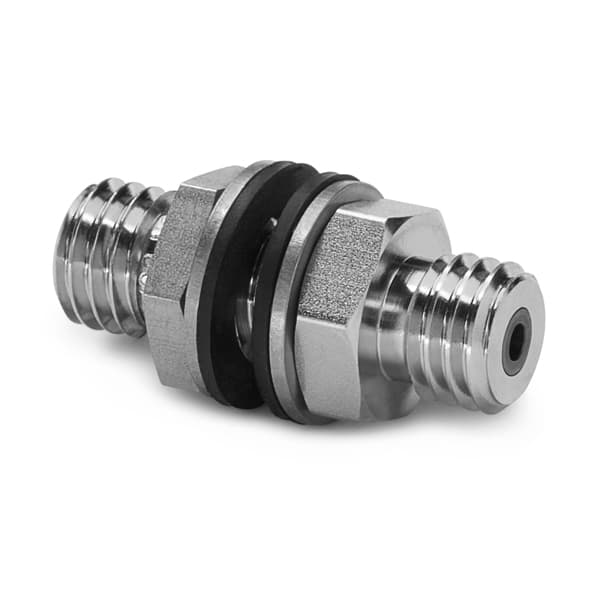

Male Quick-test XT x male Quick-test XT bulkhead, S.S.
Excellent for safely connecting two Quick-test XT 10,000 psi hoses through an enclosure, truck, or panel wall
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.21 oz / 63 grams |
|---|---|
| Length | 1.87 in / 48 mm |
| Width | 0.89 in / 23 mm |
| Height | 0.89 in / 23 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | Male Quick-test XT |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
