Part Number: QSQS-HOS-5ft

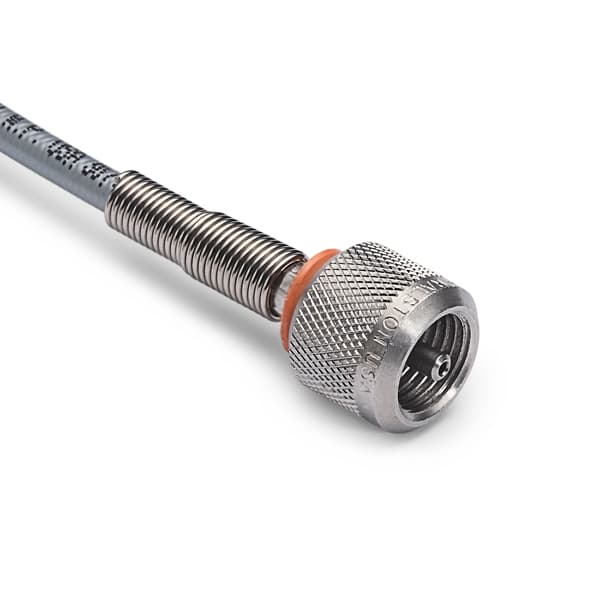

Quick-test 6900 psi hose, S.S. hose ends, 5 ft (1.52 m) long
Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.82 oz / 80 grams |
|---|---|
| Width | 0.69 in / 18 mm |
| Height | 0.69 in / 18 mm |
| Burst Pressure | 27000 PSI / 1860 bar / 185 MPa |
| Color | Silver |
| Country of origin | USA |
| Fluid Media | Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water |
| Hose Length | 5 ft / 1.52 m |
| Inner Diameter | 0.08 In / 3.00 mm |
| Length | 5 ft / 2.00 m |
| Materials | Reinforced Polyamide, Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 6900 PSI / 475 bar / 48 MPa |
| Max Vacuum | -30 InHg / -101.6 kPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.2 In / 6.00 mm |
| Type | QT |
| Hose End 1 | Female Quick-test, stainless steel |
| Hose End 2 | Female Quick-test, stainless steel |
