Part Number: QTQT-HOS-3ft

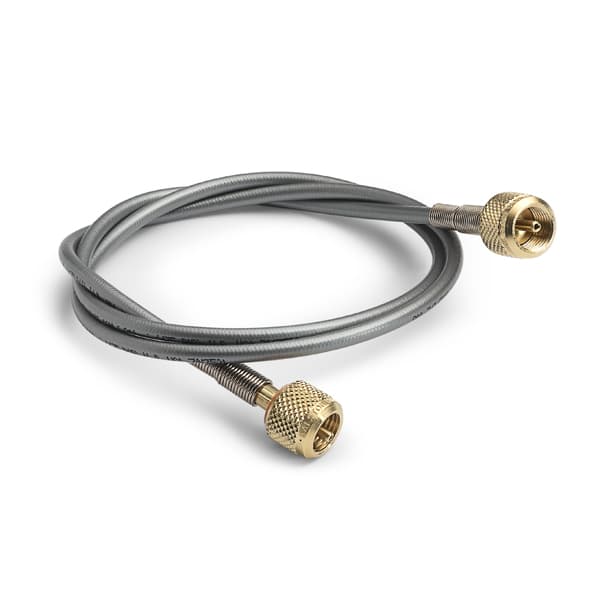

Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight2.68 oz / 76 grams
Width0.69 in / 18 mm
Height0.69 in / 18 mm
Burst Pressure27000 PSI / 1860 bar / 185 MPa
ColorSilver
Country of originUSA
Fluid MediaAir,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length3ft / 0.91 m
Inner Diameter0.08 In / 3.00 mm
Length3 ft / 92 cm
MaterialsBrass
Max Operating Temperature140 °F / 60 °C
Max Pressure6900 PSI / 475 bar / 48 MPa
Max Vacuum-30 InHg / -101.6 kPa
Media CompatibilityAir, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature-40 °F / -40 °C
Minimum Bend Radius1 In / 26 mm
Outer Diameter0.2 In / 6.00 mm
TypeQT
Hose End 1
Female Quick-test, brass
Hose End 2
Female Quick-test, brass
