Part Number: 2J2J-HOS-3ft

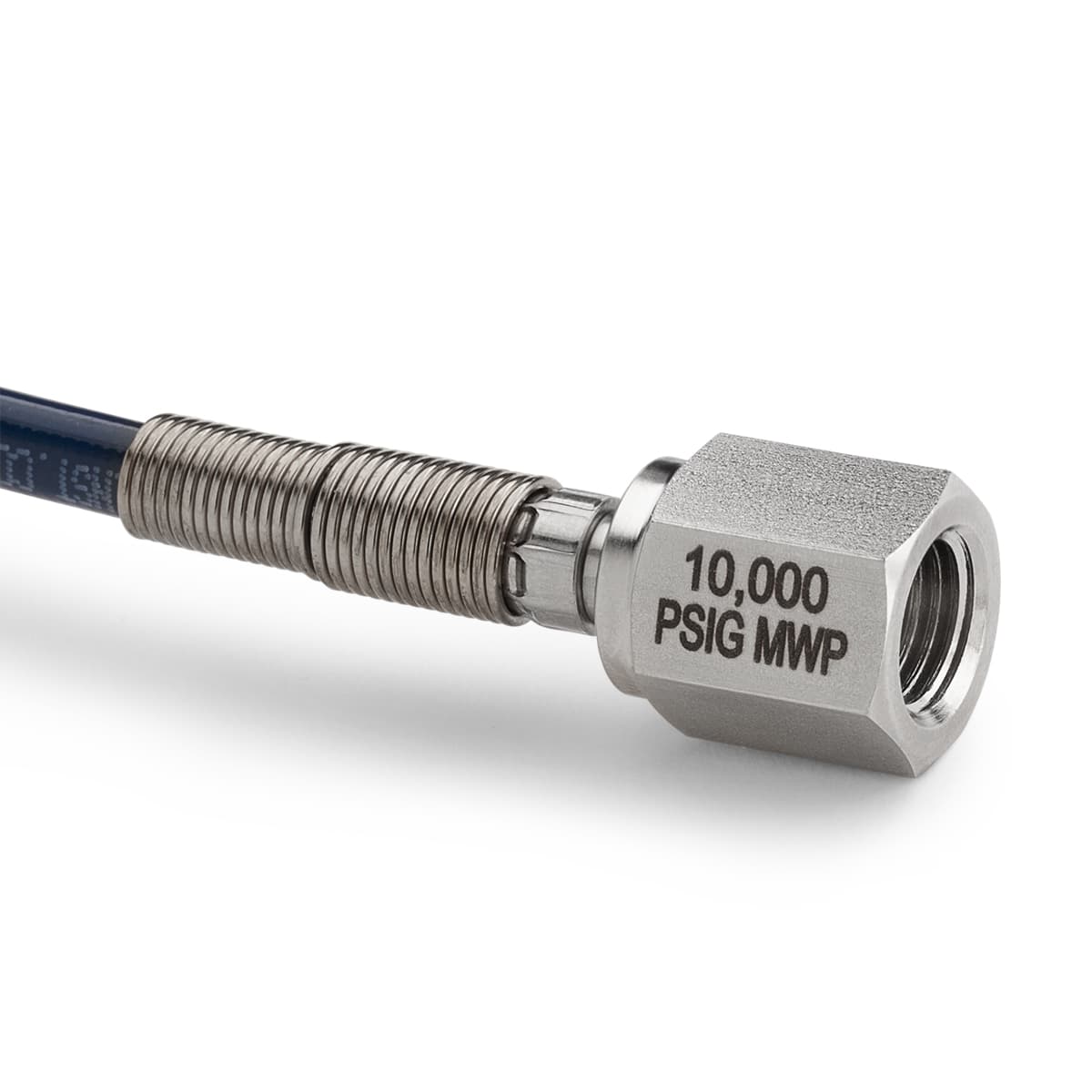

High Pressure hose, 1/4" Female Flare (-04) ends, 316 S.S., 3ft long
High pressure hose for test and calibration
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 5.5 oz / 155 grams |
|---|---|
| Length | 36 in / 92 cm |
| Width | 0.62 in / 16 mm |
| Height | 0.62 in / 16 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Color | Blue |
| Country of origin | USA |
| Inner Diameter | 0.08 In / 3.00 mm |
| Materials | Reinforced Polyamide, Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.24 In / 7.00 mm |
| Seal Materials | Buna-N, Teflon |
| Type | XT |
| Hose End 1 | Female 37 Degree flare (AN/JIC) |
| Hose End 2 | Female 37 Degree flare (AN/JIC) |
