Part Number: L4L4-HOS-6ft

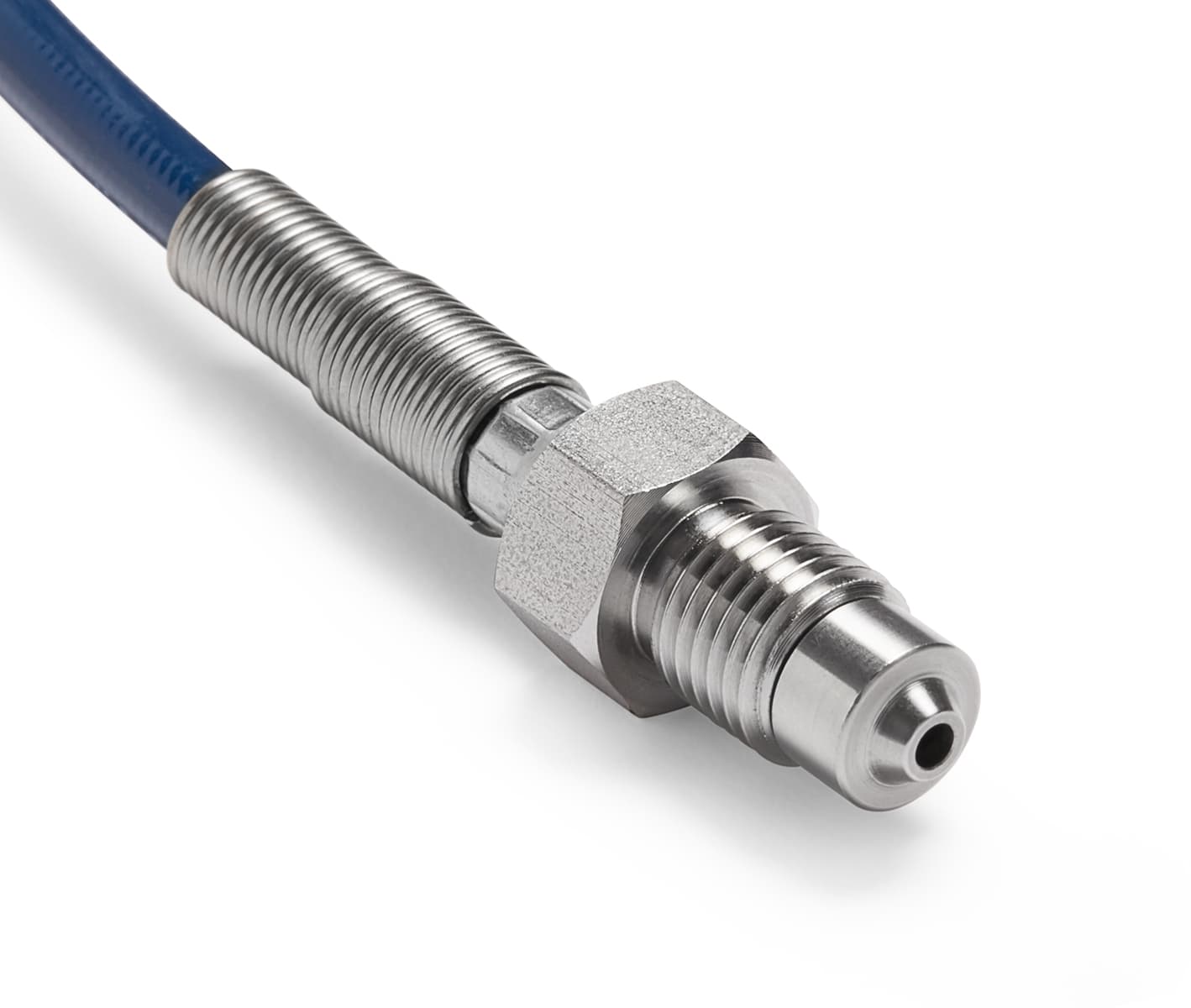

10,000 psi hose with 1/4" Male Medium Pressure (LM4) hose ends, 6ft long
High pressure hose for test and calibration
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.9 oz / 82 grams |
|---|---|
| Length | 72 in / 2.00 m |
| Width | 0.56 in / 15 mm |
| Height | 0.56 in / 15 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Color | Blue |
| Compatible with | Ametek Crystal 30 Series Pressure Calibrators, Ametek Crystal HPC40 Series Pressure Calibrators, Ametek Crystal HPC50 Series Pressure Calibrators, Ametek Crystal nVision Series Pressure Recorders, Ametek Crystal Series m1 Pressure Gauges, Ametek Crystal Series XP2i Series Pressure Gauges |
| Country of origin | USA |
| Inner Diameter | 0.08 In / 3.00 mm |
| Materials | Reinforced Polyamide, 316 Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.24 In / 7.00 mm |
| Type | XT |
| Hose End 1 | Medium Pressure |
| Hose End 2 | Medium Pressure |
