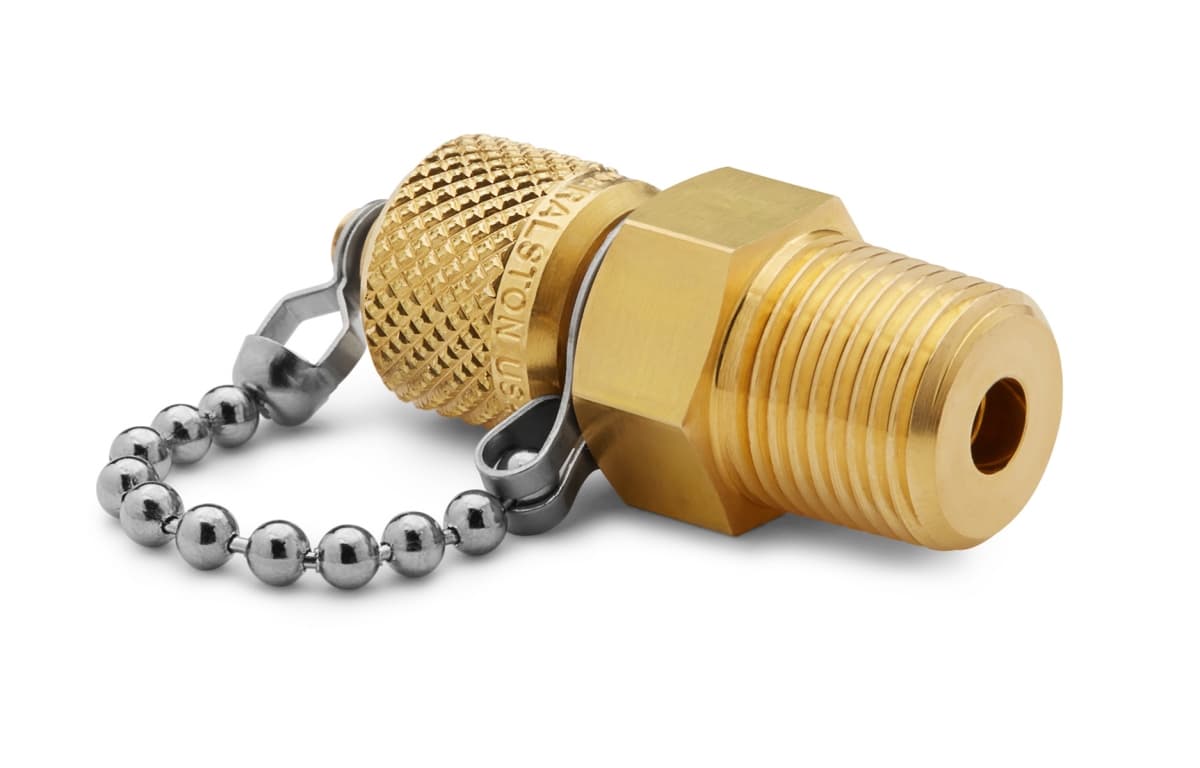

Part Number: QTFT-3MB1
3/8" male NPT x male Quick-test, with check-valve, with cap and chain, brass
A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 2.91 oz / 82 grams |
|---|---|
| Length | 1.97 in / 51 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Country of origin | USA |
| Has Check Valve | Yes |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 3000 PSI / 200 bar / 20 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | Male Quick-test |
| End 1 Cap and Chain | Yes |
| End 1 Direction | Left |
| End 2 Connector | 3/8" Male NPT (ASME B1.20.1) |
| End 2 Direction | Left |
