Part Number: QTFT-PLGB

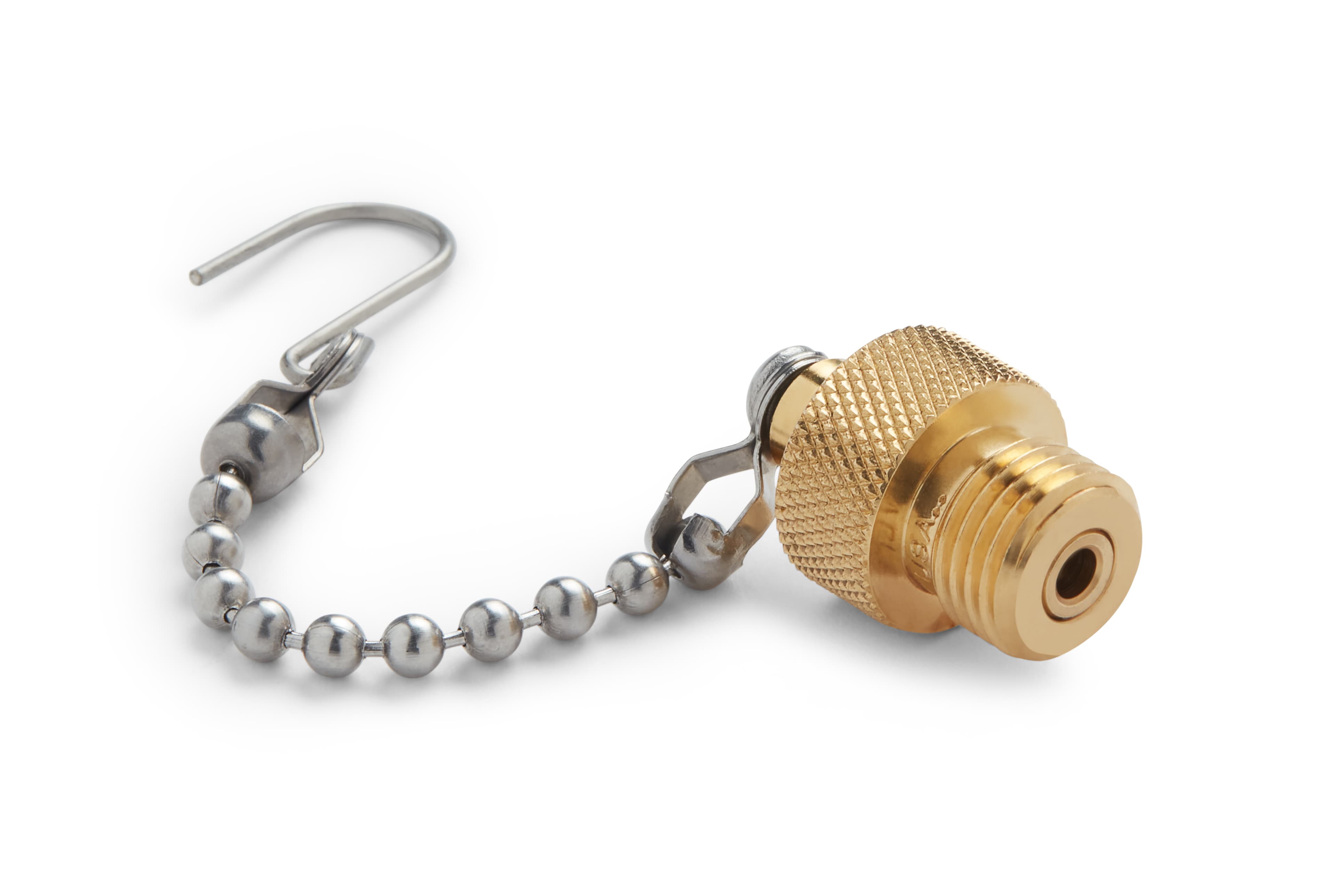

Quick-test Hose plug, and chain only, brass
Plug a hose to prevent fluid from leaking out
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
Weight | 1.02 oz / 29 grams |
---|---|
Length | 1.11 in / 29 mm |
Width | 0.68 in / 18 mm |
Height | 0.68 in / 18 mm |
Country of origin | USA |
Dimensions A | 0 In / 0.00 mm |
Dimensions B | 0 In / 0.00 mm |
Materials | Brass |
Max Operating Temperature | 140 °F / 60 °C |
Max Pressure | 5000 PSI / 350 bar / 35 MPa |
Min Operating Temperature | 0 °F / -18 °C |
Seal Materials | Buna-N |
End 1 Connector | Male Quick-test |
End 1 Direction | Left |
