Part Number: QTHA-HSHS

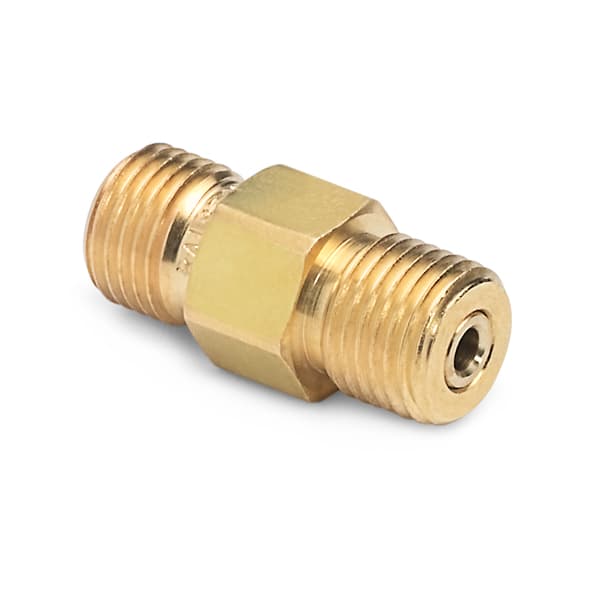

Male Quick-test x male Quick-test hose union, brass
Connect two Quick-test hoses or two Quick-test adapters together, depending on the union
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.1 oz / 31 grams |
|---|---|
| Length | 1.25 in / 32 mm |
| Width | 0.56 in / 15 mm |
| Height | 0.56 in / 15 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | Male Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
