Ralston Quick-test™ USN Hoses & Adapters
Developed for the US Navy, this high pressure connection standard converts NPT, AN/JIC 37° flare, and High Pressure ports into industrial-style connect/disconnect that can be released just like a standard quick-connect sleeve. Speed up pressure testing and calibration with quick, safe, self-locking connections at very high pressure.
The Need For Speed
Connect quickly with a snap then apply up to 10,000 psi safely. System pressure locks the quick-connect to eliminate accidental disconnection while a live pressure over 50 psi is present.

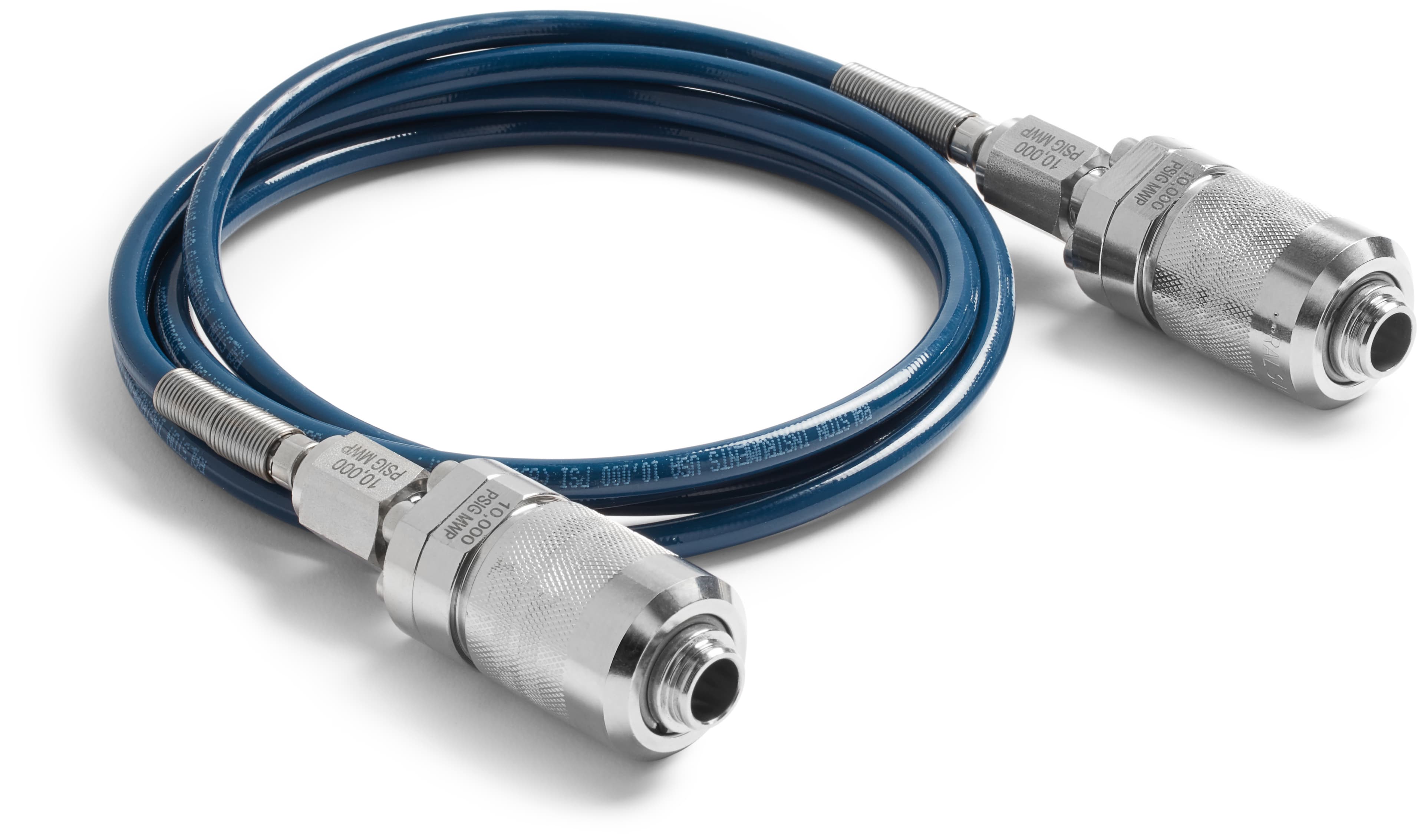

Ralston Quick-test™ USN Hoses
10,000 psi microbore hoses with male or female Ralston Quick-test USN connections provide high pressure, super low volume for quick access for testing and calibration of live pressure systems. These light and flexible hoses can handle high pressure fluid, gas or pneumatic pressure media while locking into place to prevent accidental discharge.
| Model | Max Pressure |
|---|---|
| USN0-KIT5-6ft | 10000 PSI / 700 bar / 70 MPa |
| USN0-KIT5-10ft | 10000 PSI / 700 bar / 70 MPa |
| USN0-KIT6-6ft | 10000 PSI / 700 bar / 70 MPa |
| USN0-KIT6-10ft | 10000 PSI / 700 bar / 70 MPa |
| USN0-KIT7-3ft | 10000 PSI / 700 bar / 70 MPa |
| USN0-KIT7-6ft | 10000 PSI / 700 bar / 70 MPa |

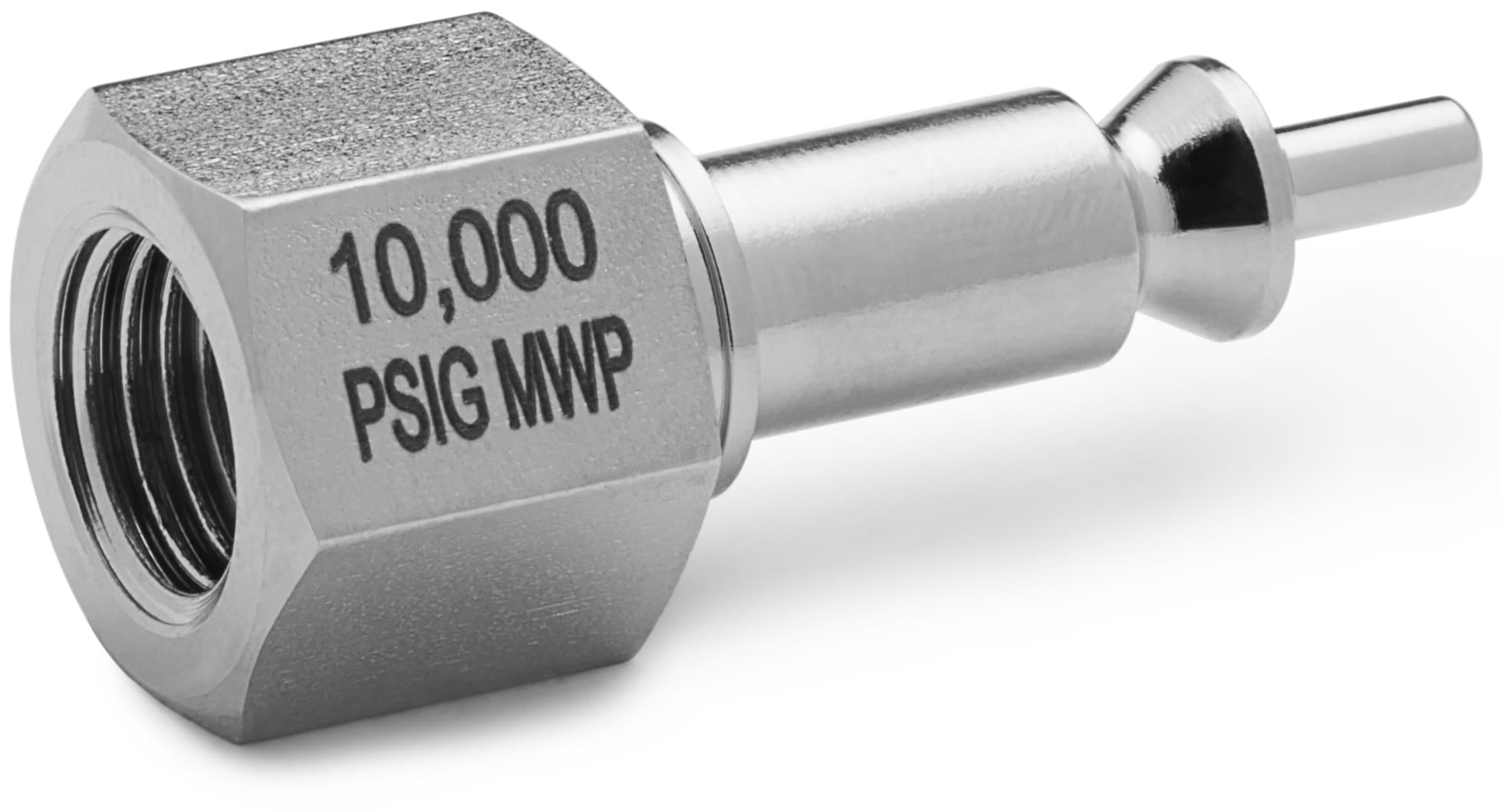

Ralston Quick-test™ USN Adapters
Made in the USA from military-grade 316 stainless steel, these 10,000 psi / 70 MPa adapters can provide access to existing high pressure ports with a click-in, click-out quick connect. Available for male or female NPT, AN/JIC 37° Flare and High Pressure coned or threaded connections. Specify dust caps on chain mounts to protect access ports from the elements.
USN Female NPT Adapters
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-1FNPT-MP | 1/8" Female NPT (ASME B1.20.1) | Male USN0 Probe | No |
| USN0-2FNPT-MP | 1/4" Female NPT (ASME B1.20.1) | Male USN0 Probe | No |
| USN0-4FNPT-MP | 1/2" Female NPT (ASME B1.20.1) | Male USN0 Probe | No |
USN Male NPT Adapters
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-1MNPT-MP | 1/8" Male NPT (ASME B1.20.1) | Male USN0 Probe | No |
| USN0-2MNPT-MP | 1/4" Male NPT (ASME B1.20.1) | Male USN0 Probe | No |
| USN0-4MNPT-MP | 1/2" Male NPT (ASME B1.20.1) | Male USN0 Probe | No |
USN Male 37 degree AN/JIC Flare Adapters
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-4MAN-MP | 1/4"(-4) Male AN 37 Degree Flare | Male USN0 Probe | No |
| USN0-6MAN-MP | 3/8"(-6) Male AN 37 Degree Flare | Male USN0 Probe | No |
USN Female 37 degree AN/JIC Flare Adapters
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-4FAN-MP | 1/4"(-4) Female 37 degree (AN/JIC) Flare | Male USN0 Probe | No |
| USN0-6FAN-MP | 3/8"(-6) Female 37 degree (AN/JIC) Flare | Male USN0 Probe | No |
USN High Pressure Coned and Threaded Adapters
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-2MXH-MP | 9/16-18 (1/4" HM4) Male High Pressure | Male USN0 Probe | No |
| USN0-2FXH-MP | 9/16-18 (1/4" HF4) Female High Pressure | Male USN0 Probe | No |
USN Quick-connects, Plugs and Caps
| Model | End 1 Connector | End 2 Connector | End 2 Quick Disconnect |
|---|---|---|---|
| USN0-FPLUG | 9/16-18 (1/4" HM4) Male High Pressure | Male USN0 Probe | No |
| USN0-MCAP | 9/16-18 (1/4" HM4) Male High Pressure | Male USN0 Probe | No |
| USN0-FQC-HM-4AN | 9/16-18 (1/4" HM4) Male High Pressure | Male USN0 Probe | No |
Contact us for a quote and we'll be in touch.
