Part Number: USN0-FQC-HM-4AN

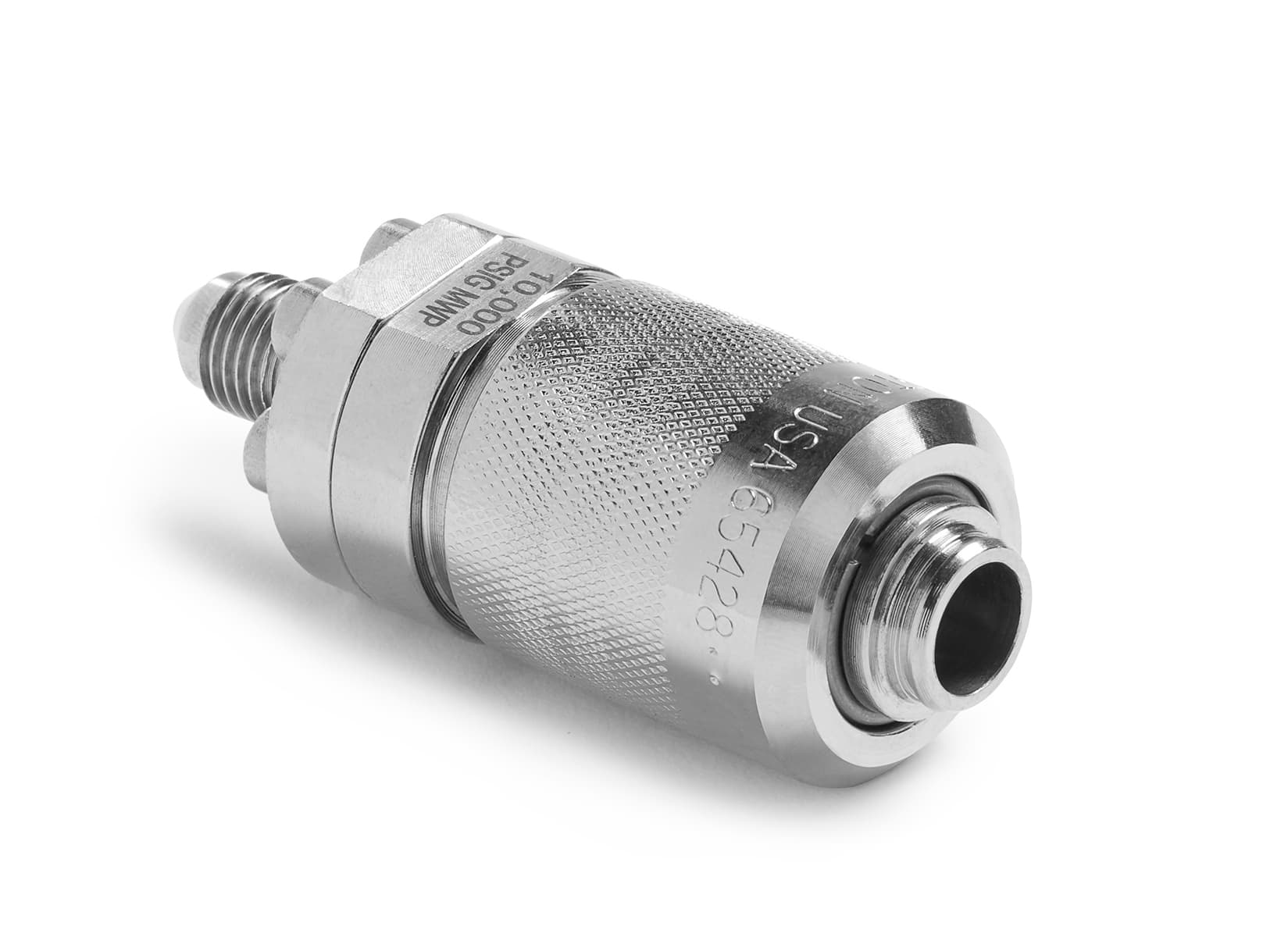

Female USN0 Quick-connect for 2J hose or panel mount, 316 S.S.
Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 1.83 oz / 52 grams |
|---|---|
| Length | 2.55 in / 65 mm |
| Width | 0.63 in / 17 mm |
| Height | 0.68 in / 18 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Country of origin | USA |
| Materials | 316 Stainless Steel |
| Max Operating Temperature | 200 °F / 93 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -15 °F / -26 °C |
| Seal Materials | Carbon/Graphite, Urethane |
| End 1 Connector | 9/16-18 (1/4" HM4) Male High Pressure |
| End 1 Direction | Left |
| End 2 Connector | Male USN0 Probe |
| End 2 Direction | Left |
