Ralston NitroPak Calibration System

NPAK

Portable nitrogen pressure test kit for quick & accurate calibration testing in remote locations without pumping

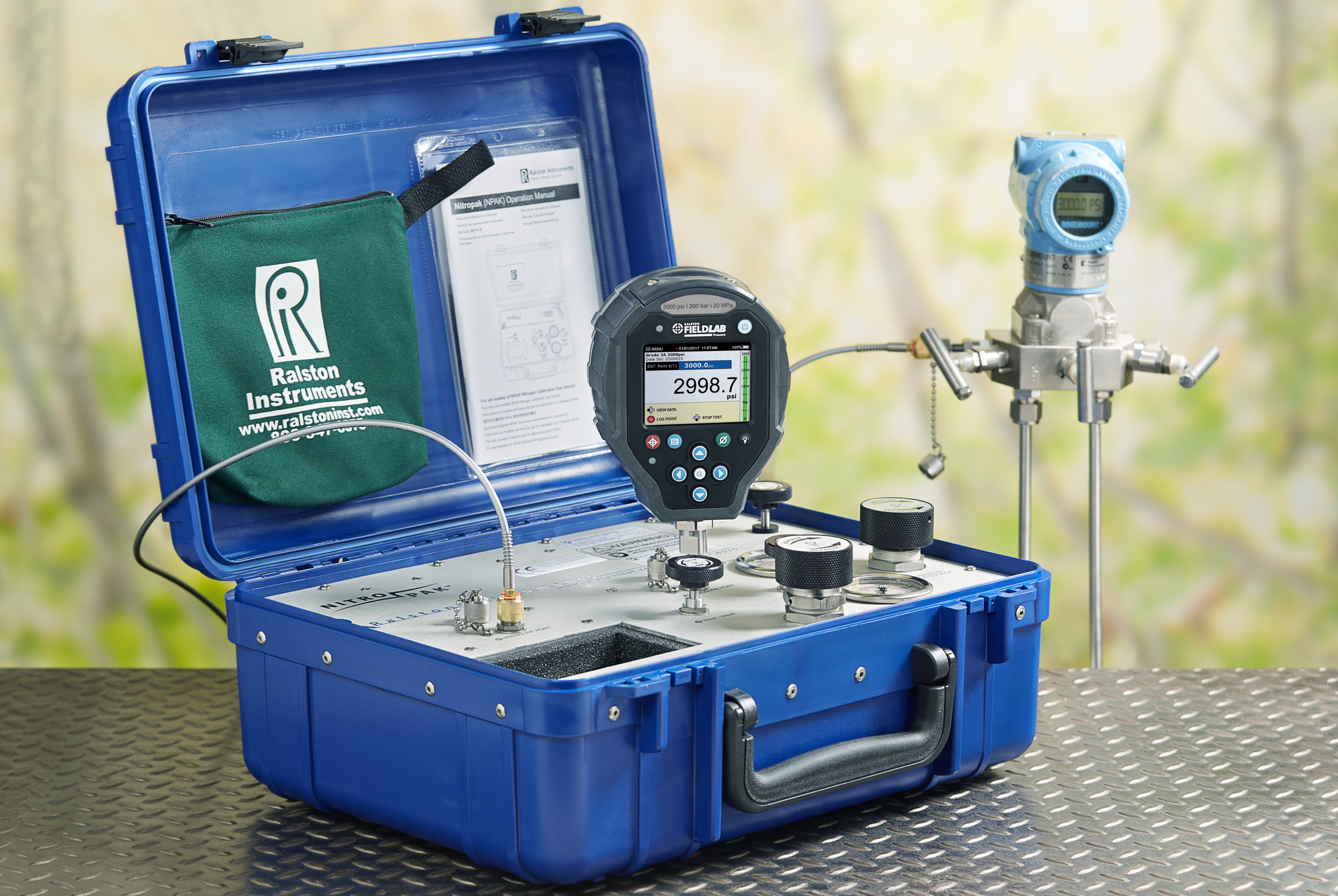

This portable nitrogen pressure calibration kit provides a high pressure nitrogen source for calibrating differential and static pressure instrumentation using an external pressure calibrator. It includes an on-board storage cylinder, nitrogen pressure regulator and a precision volume controller for extremely fast and accurate pressure control. NitroPak users can easily reach each test point without pumping or leaky connections, up to 3,000 PSI/ 210 bar.

Get a Quote
Portable Nitrogen Pressure Calibration
  • Proprietary pressure-balanced fine adjustment piston allows for extremely precise, finger-tip control of pressure at 0.03 psi (2 mbar) or 3000 psi (210 bar) or any range in between
  • Easily refillable nitrogen cylinder holds enough gas for multiple calibrations
  • A nylon bag to hold the hose and fittings is conveniently attached to the inside of the lid
  • Includes a storage compartment in the control panel for pressure reference test gauge
  • Low volume Quick-test™ hose, gauge adapter and process connection can be attached to the NitroPak without thread sealant or a wrench
  • Designed to meet US Department of Transportation (DOT) and Canadian Transport Canada (TC) standards
  • CE Approved for use in European Union - Designed to meet Pressure Equipment
  • Directive (PED) and Transportable Pressure Equipment (TPED) standards
  • Made in the USA

Key Benefits of the NitroPak for Pressure Testing with Nitrogen

Compressed Gas on Hand

Fill it at the shop and have enough compressed gas for a day or more. It is easy to fill with the included hoses. Simply pressurize it until it is full, disconnect the hose, and your nitrogen pressure testing equipment is ready to go.

Organized and Easily Portable

Reminiscent of Wally Box pressure calibrators, the NitroPak includes storage for hoses, adapters and a pressure gauge. There is a bag to hold hoses and adapters and a pocket to hold a pressure gauge as well.

Excellent for Hazardous Locations

Because it has no electronics in it there are no issues with using it in North American Class 1, Division 1 or 2 locations, ATEX or IECEX Zone 0, 1 or 2 locations. It’s an ideal compressed gas solution in any environment.

Easy to Carry in Remote Locations

Great for remote locations. With a carbon fiber cylinder and ABS plastic case with ergonomic handle, the NitroPak is the nitrogen pressure test kit you can take with you wherever you need to go, from towers to areas far off road.

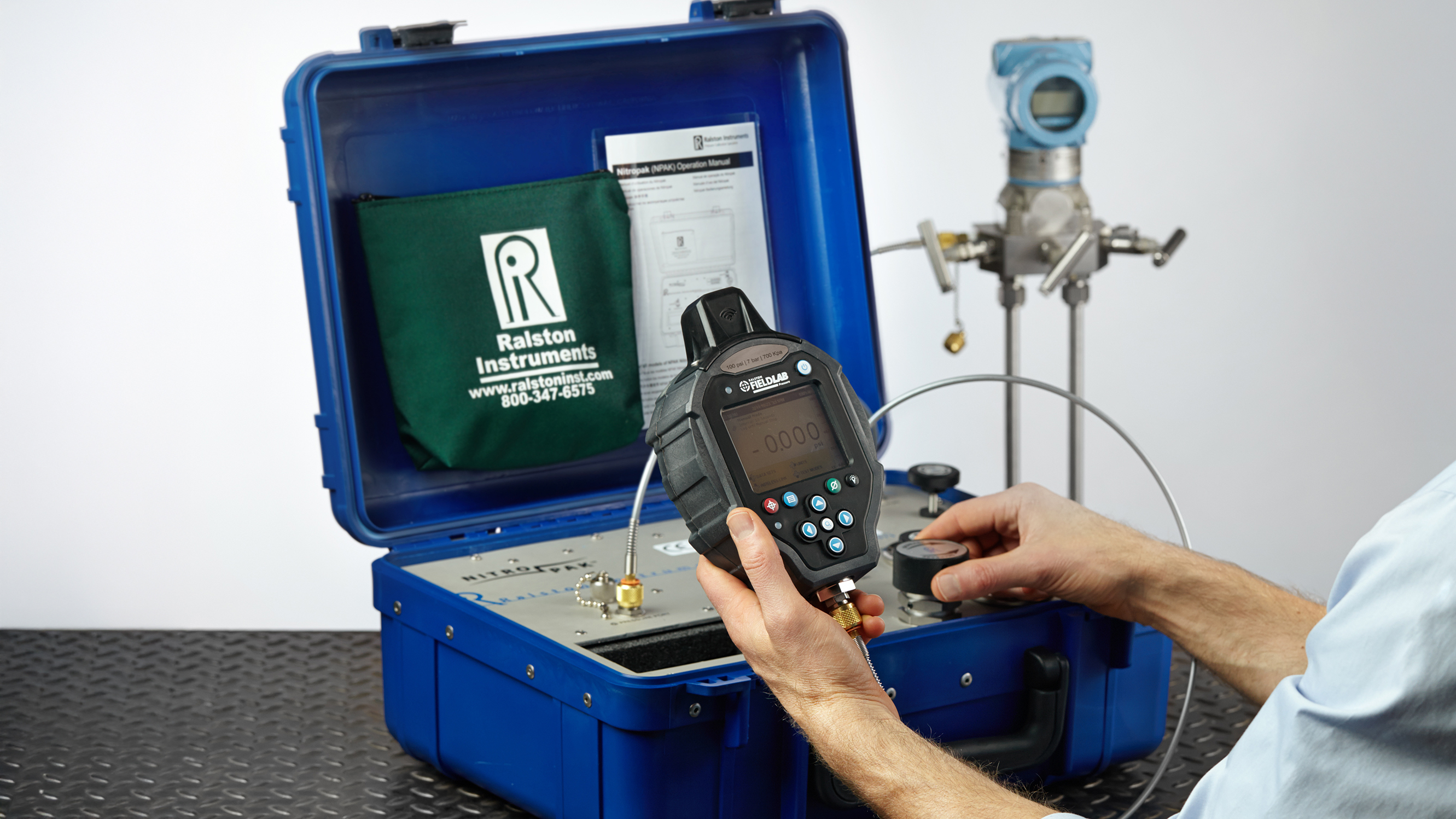

Allows you to Conduct both Differential and Static Calibrations in the Field

Use the fine adjust piston alone to create pressure up to 400 inH20 (400 mbar). Use the compressed gas from the internal cylinder to go to pressures from 400 inH20 to 3000 psi (200 bar).

The Ralston NitroPak takes the hard work out of field-based calibrations and provides an all-in-one, easy to use, pressure control solution.

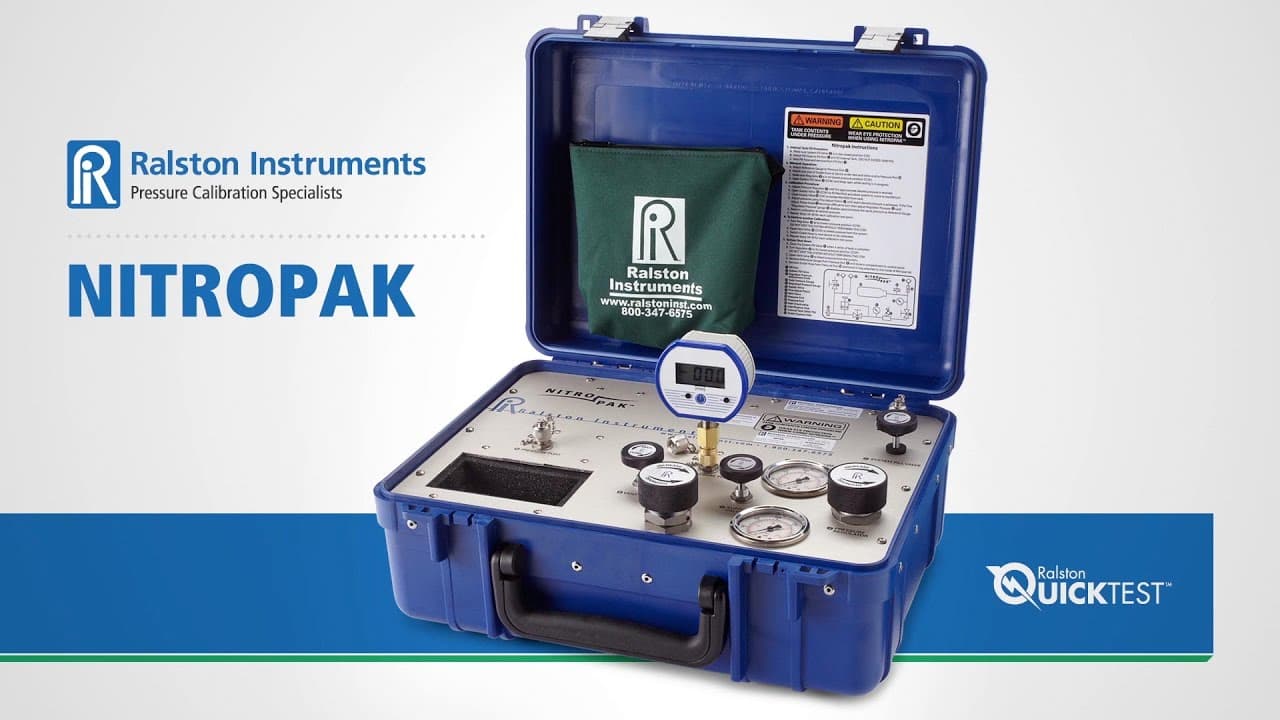

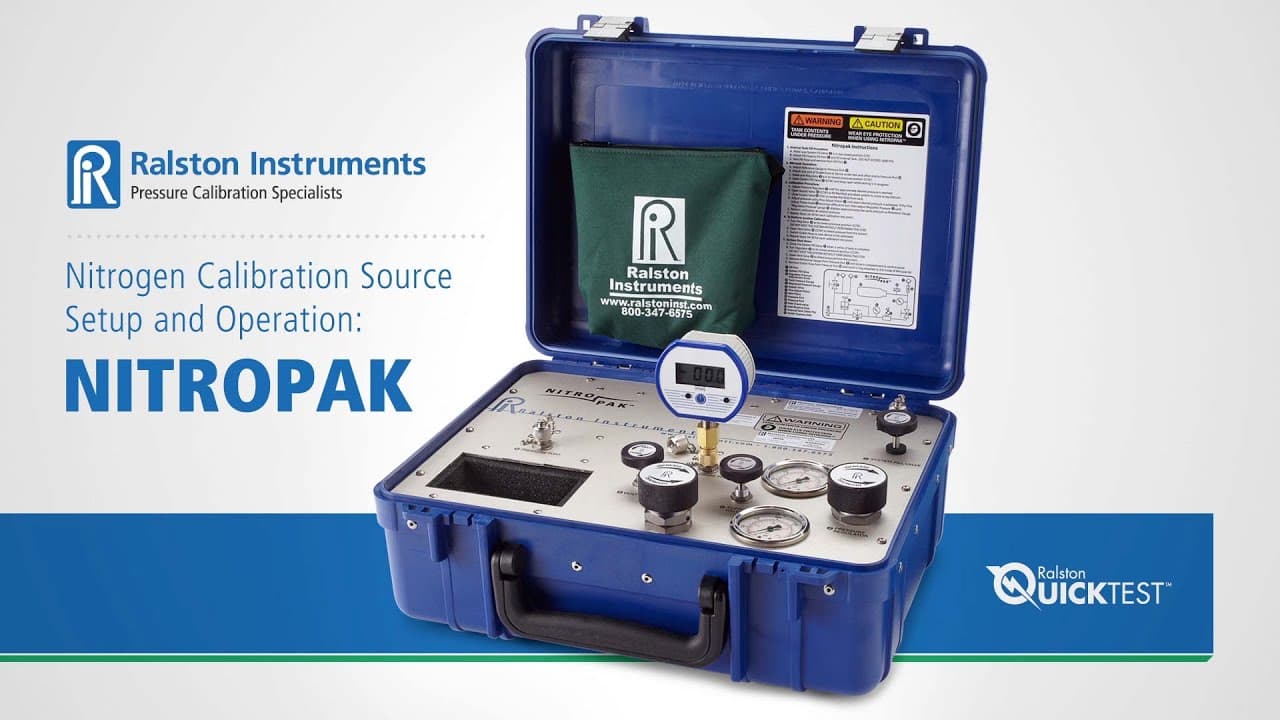

Watch this Brief Video to Learn More About the Features and Benefits of this Indispensable Tool

Configure a Ralston NitroPak

Ralston NitroPak come in a variety of different configurations. Choose which bundle is right for your application.

Part of the Ralston Quick-test™ System of safe, stable, leak-free connections without a wrench.
