Ralston NitroPak Support
Learn more about our self-contained unit that provides a precise nitrogen source for calibrating differential and static pressure instrumentation using an external pressure calibrator.

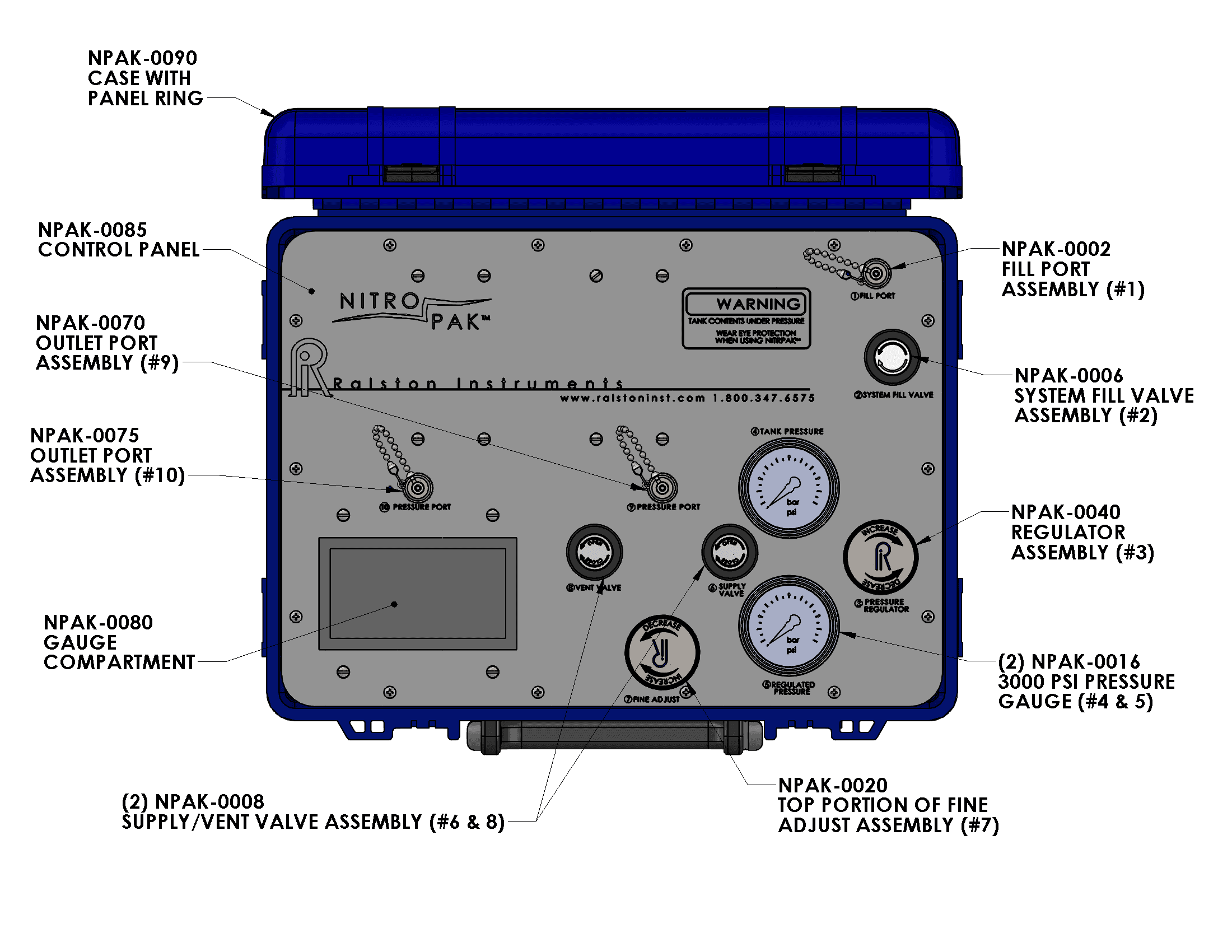

Nitropak Top Replacement Parts
![](https://ralstoninst-web.imgix.net/products/items/item-57028149cce07.jpeg?auto=compress%2Cformat&w=75&s=b23b6c081b12e2b6f25674659ce80bf1)
NPAK Fill port assembly, male Quick-test with cap and chain S.S. (for #1)
NPAK-0002
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570281d88eec6.jpeg?auto=compress%2Cformat&w=75&s=742cf9d064e738abcc6972b52124b06c)
NPAK System Fill Valve assembly, knob, panel nut (for #2)
NPAK-0006
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d776debb8f7.jpeg?auto=compress%2Cformat&w=75&s=a6fb661b2c473419dc030e37facc46a5)

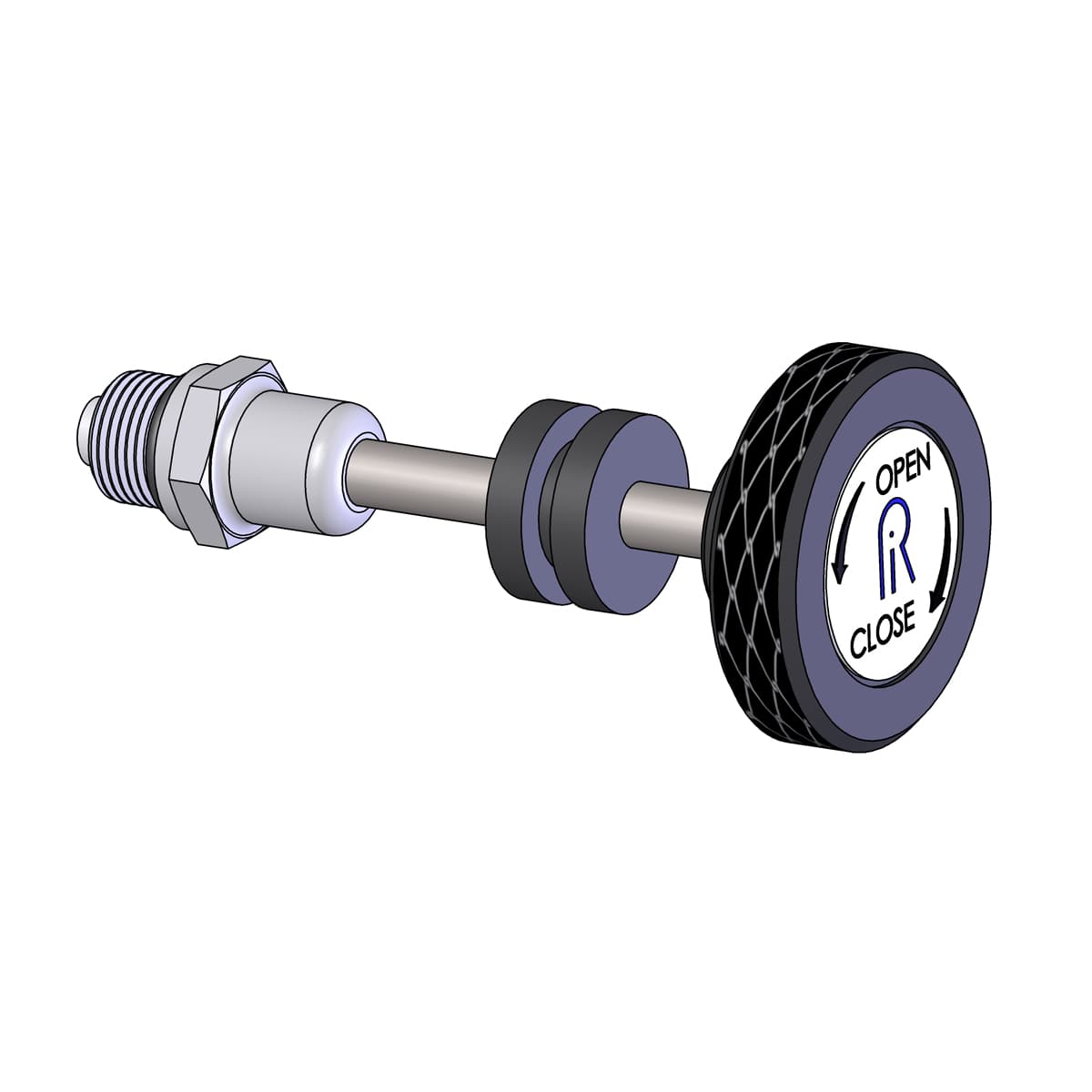

NPAK Supply (#6) and Vent (#8) valve assembly, knob, panel nut
NPAK-0008
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702823349be8.jpeg?auto=compress%2Cformat&w=75&s=baab5c22043c20a8b10be383c17239d7)

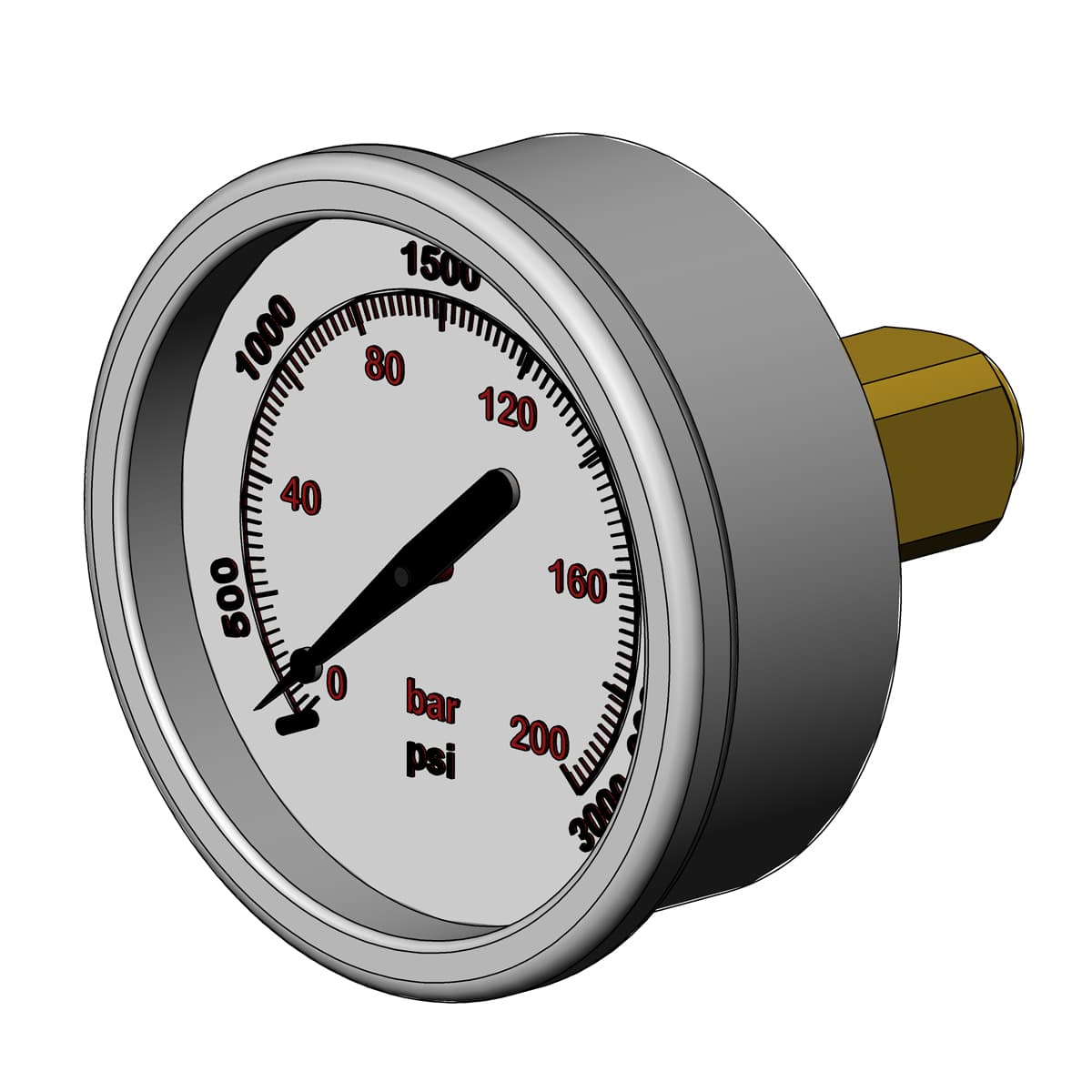

3000 psi / 210 bar dual scale pressure gauge (for #4 and #5)
NPAK-0016
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d7788005318.jpeg?auto=compress%2Cformat&w=75&s=dec3f40585f1a041d5bdacf97abe196c)
NPAK top portion of fine adjust assembly without piston (for #7)
NPAK-0020
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702832077c3d.jpeg?auto=compress%2Cformat&w=75&s=615a1ad17b8e4f1feaf7c6c03d746944)

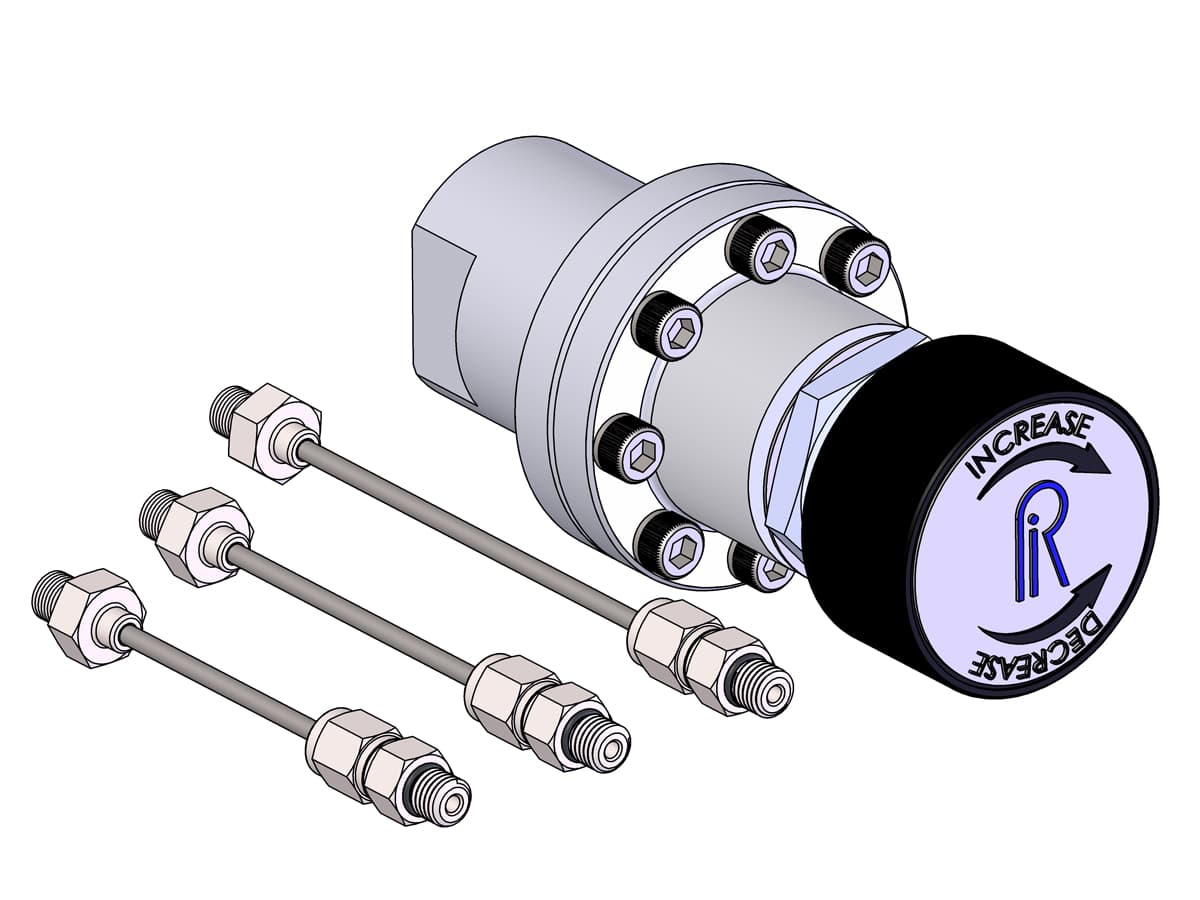

NPAK replacement gas regulator (for #3)
NPAK-0040
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570286485cc7c.jpeg?auto=compress%2Cformat&w=75&s=4bcb1cb35eb1c87cb79af08760e9f63d)

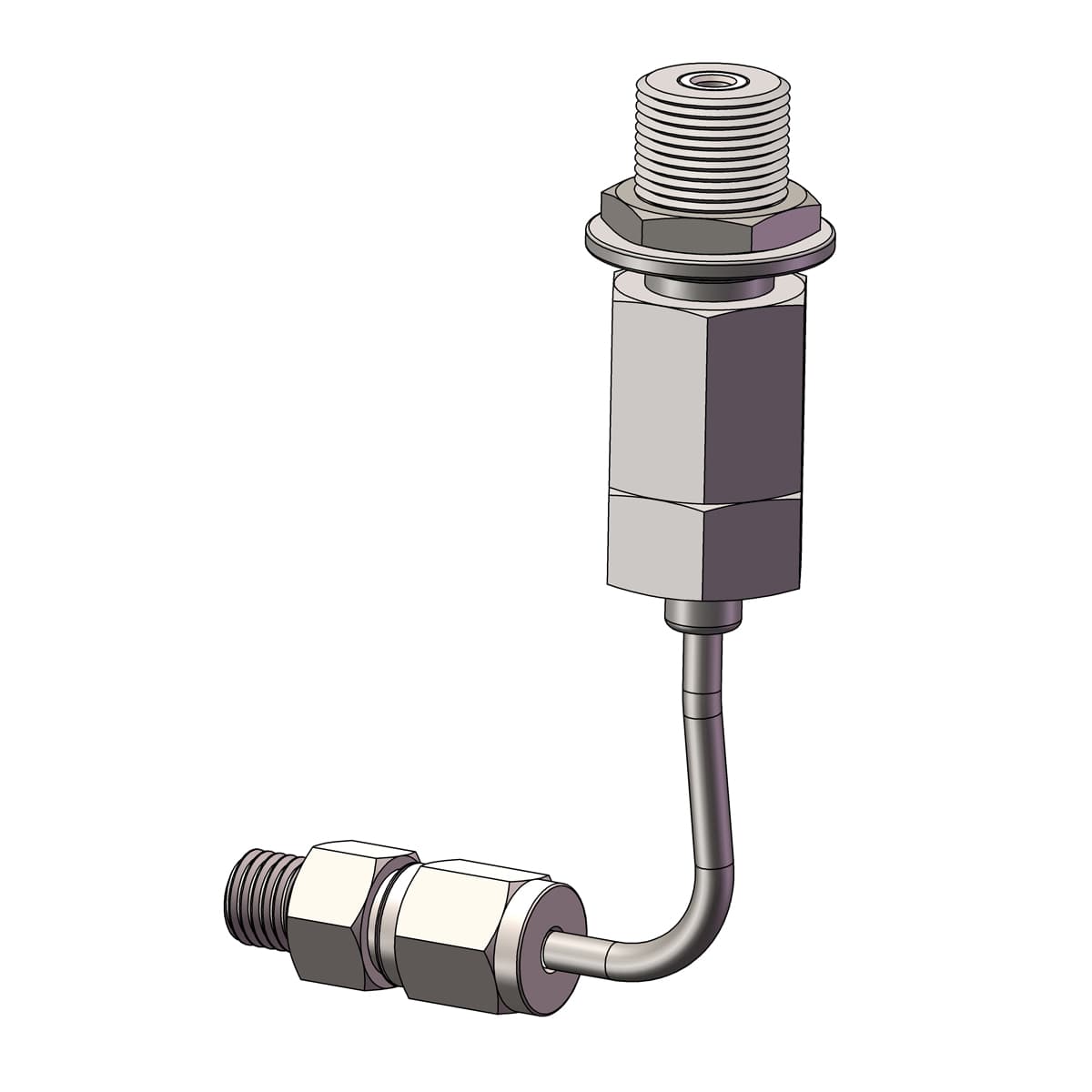

NPAK Outlet port assembly, male Quick-test with cap and chain, S.S. (for #9)
NPAK-0070
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702867c92979.jpeg?auto=compress%2Cformat&w=75&s=284ebf98b3951f2e997fc435db5a9711)
NPAK Outlet port assembly, male Quick-test with cap and chain, S.S. (for #10)
NPAK-0075
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570286a644869.jpeg?auto=compress%2Cformat&w=75&s=4899919e67693f941153a12a1f7a4156)

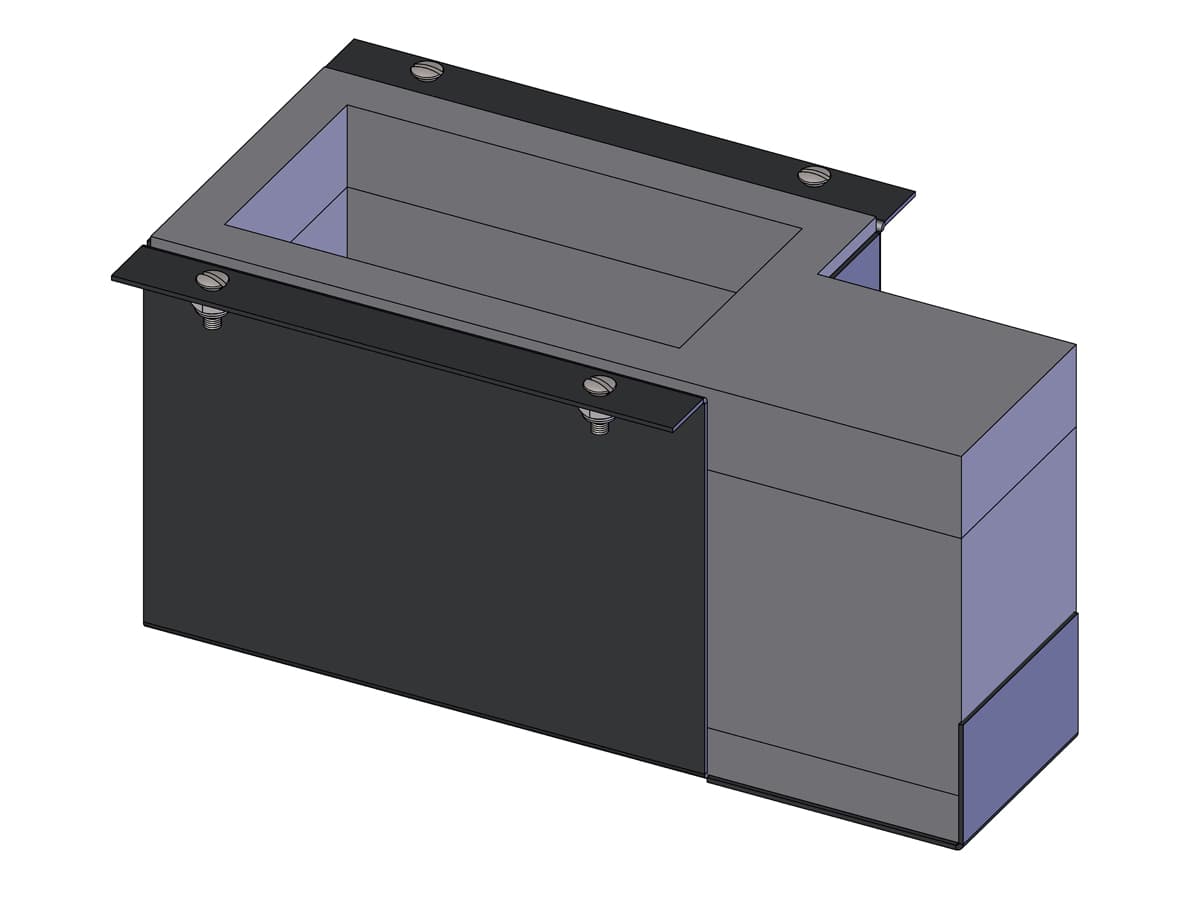

NPAK gauge compartment with foam liner
NPAK-0080
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570286c966537.jpeg?auto=compress%2Cformat&w=75&s=903bb4a10bab54886b30c6392796e25f)

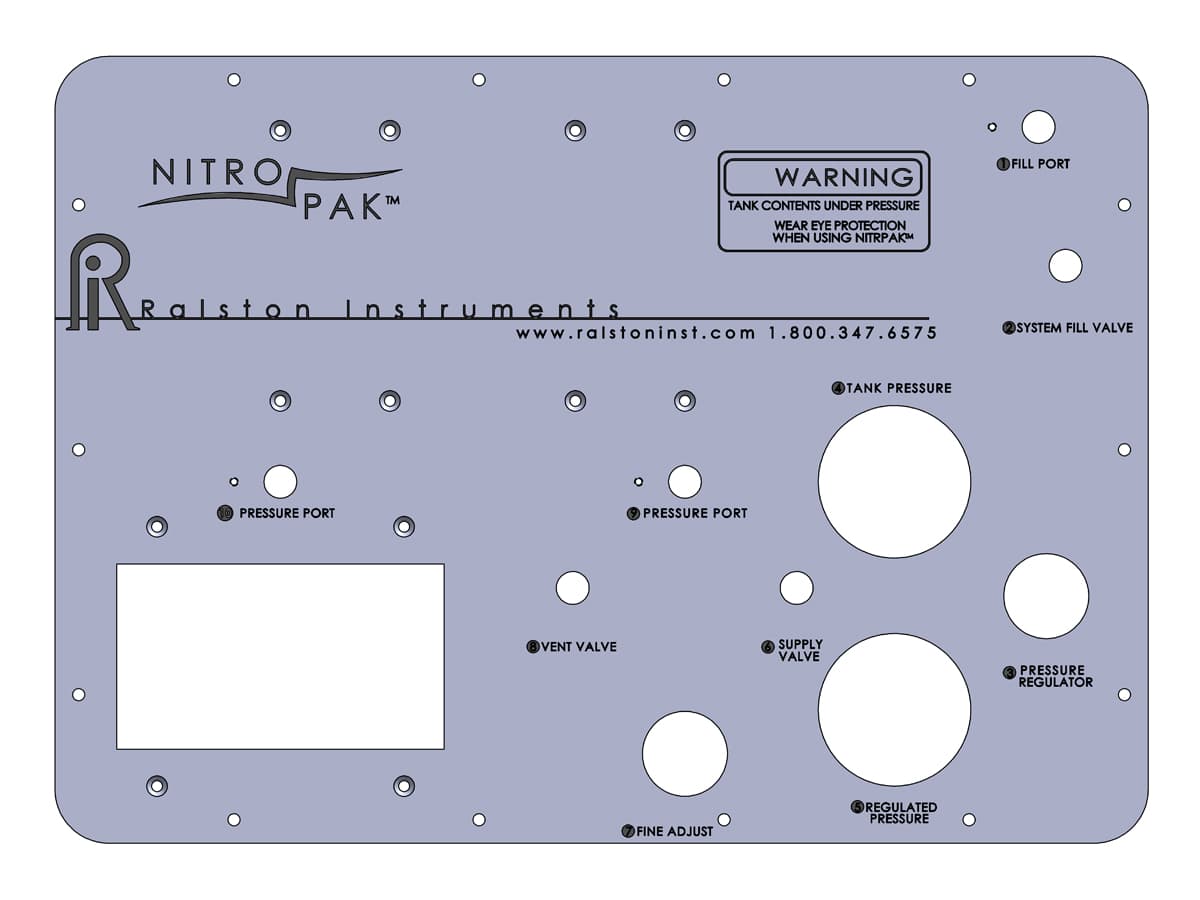

NPAK replacement control panel
NPAK-0085
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570286f03f3a1.jpeg?auto=compress%2Cformat&w=75&s=2209d49a0ed8964cfaca1ef73dc27019)

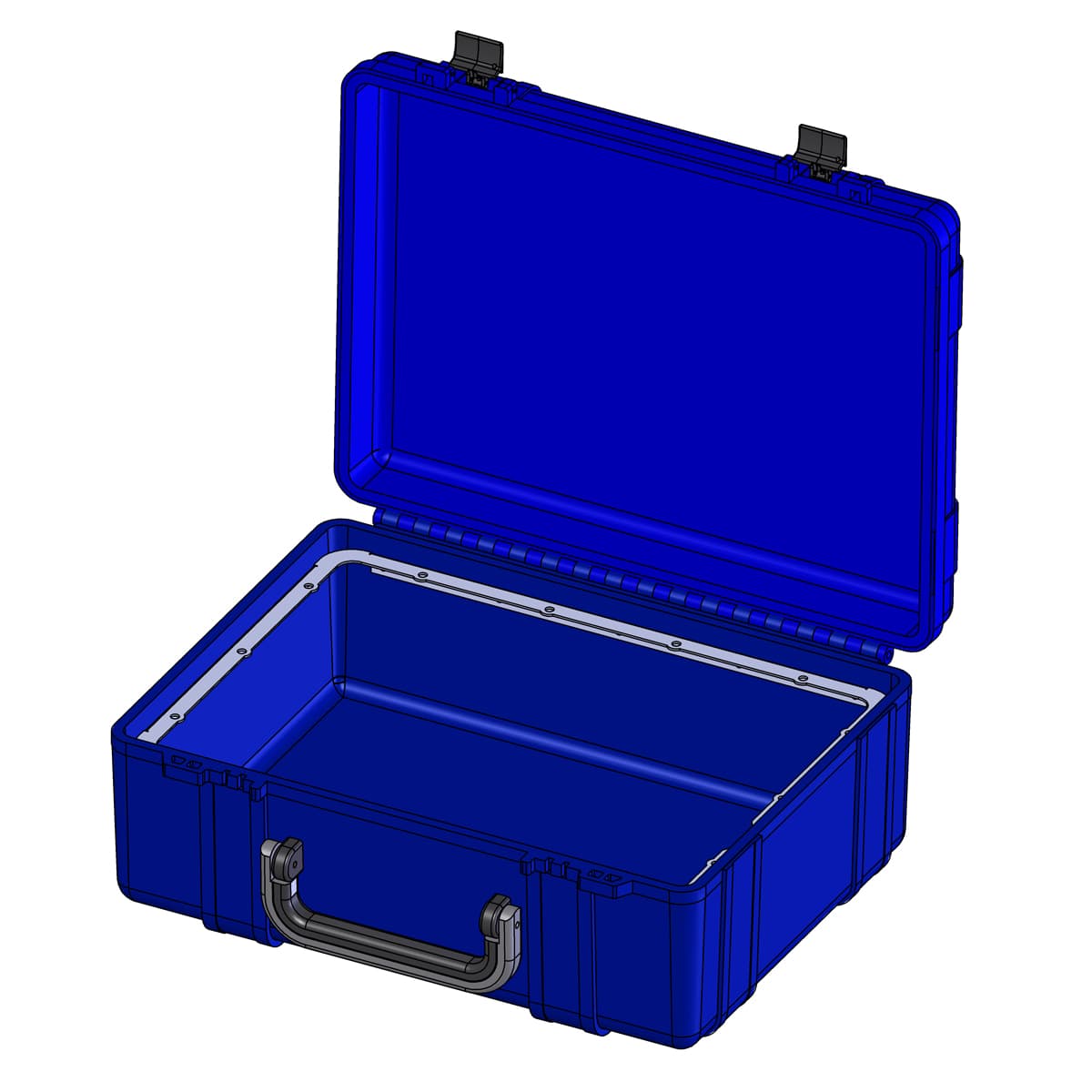

NPAK replacement case with reinforced steel panel ring
NPAK-0090

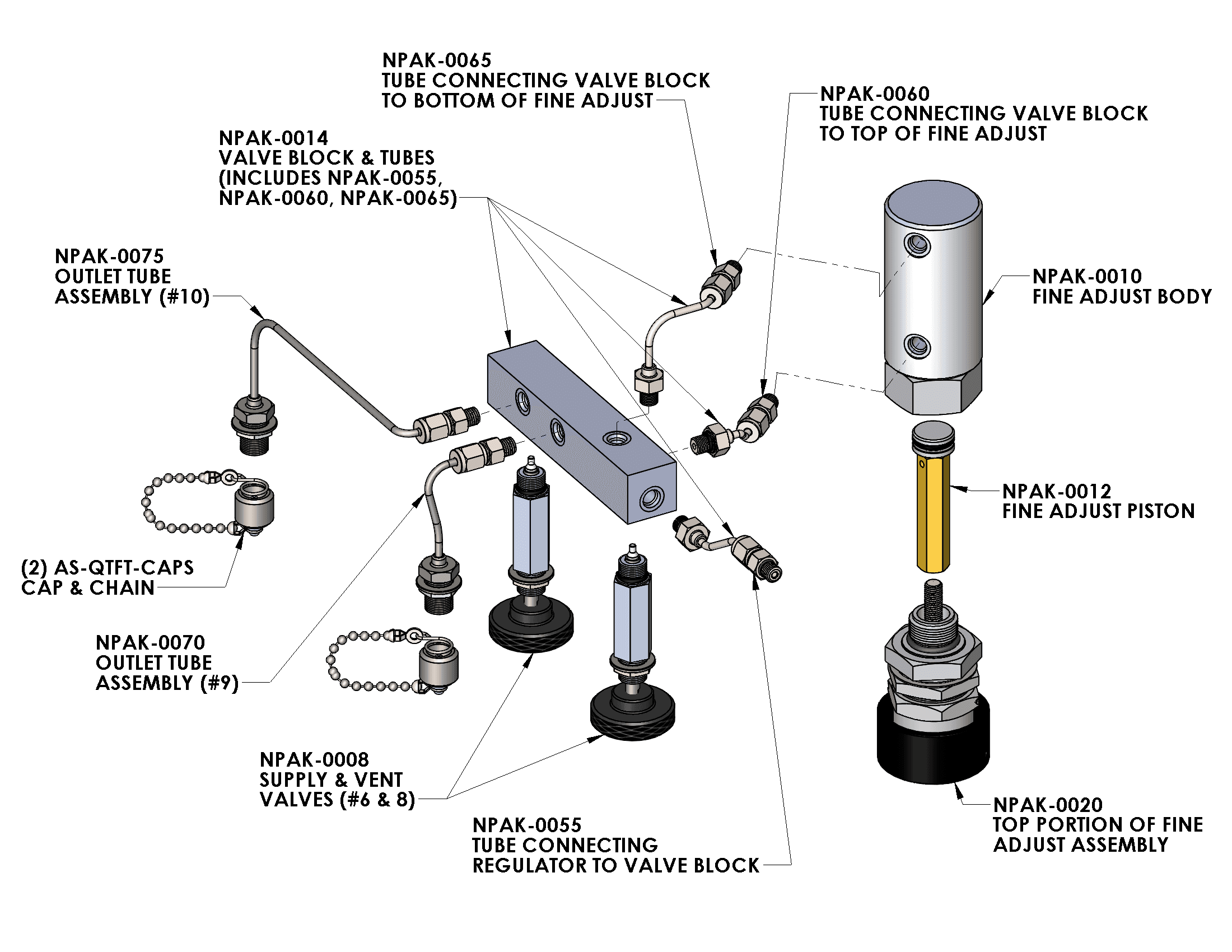

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollersNitropak Block & Fine Adjust Replacement Parts
![](https://ralstoninst-web.imgix.net/products/items/item-56d776bf9726e.jpeg?auto=compress%2Cformat&w=75&s=edf1615c1337455c7af332ea9e9c96f6)
NPAK Cap, plug, chain and hanger ring to cover inlet, outlet ports, S.S.
AS-QTFT-CAPS
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d776debb8f7.jpeg?auto=compress%2Cformat&w=75&s=a6fb661b2c473419dc030e37facc46a5)

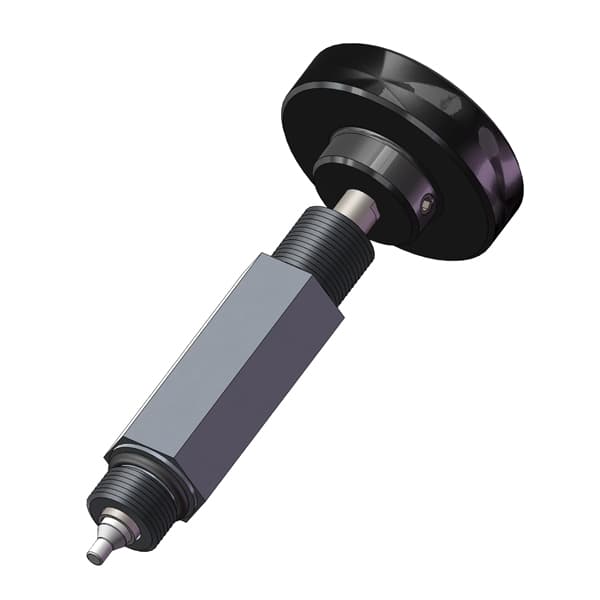

NPAK Supply (#6) and Vent (#8) valve assembly, knob, panel nut
NPAK-0008
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d776e10a536.jpeg?auto=compress%2Cformat&w=75&s=7fc82f28a6fe3abca3a3eb53ad9ed0be)

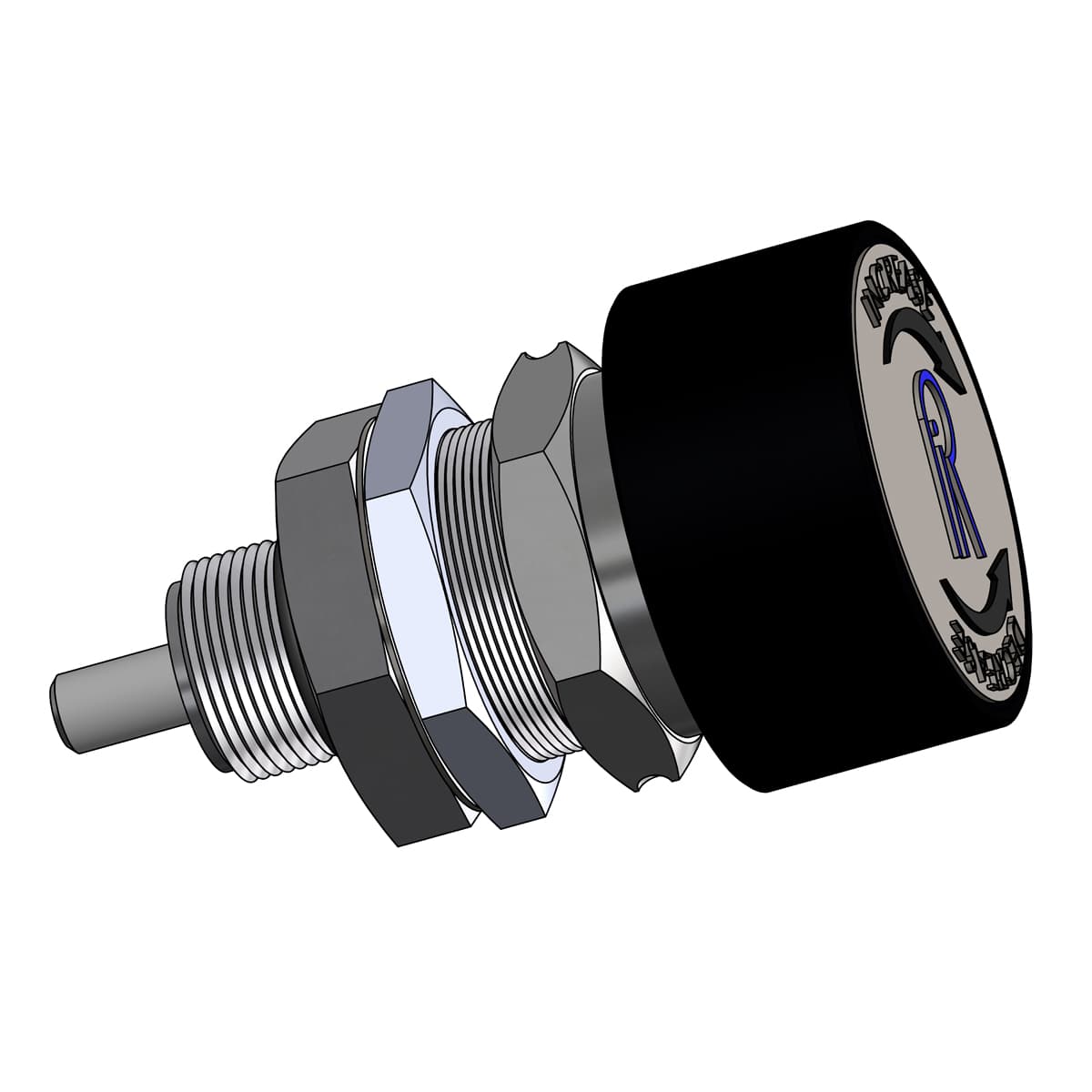

NPAK fine adjust assembly without piston, knob, panel nut (for #7)
NPAK-0010
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d776e476a19.jpeg?auto=compress%2Cformat&w=75&s=4bd5311a1443e29b67e10ef17b69339f)

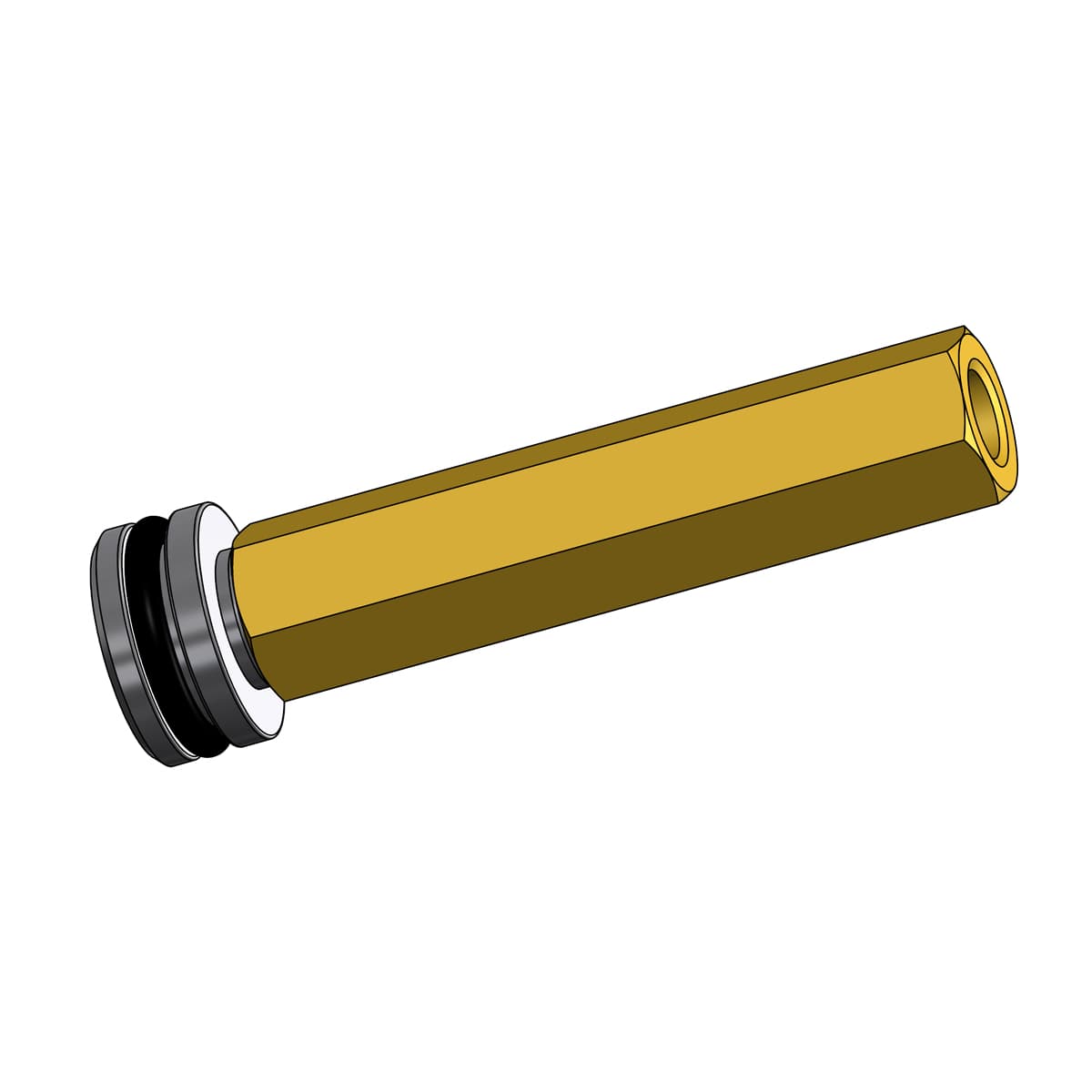

NPAK fine adust piston only (for #7)
NPAK-0012
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-57028206674d1.jpeg?auto=compress%2Cformat&w=75&s=baa9dad058e131ab87404c3880488d6b)

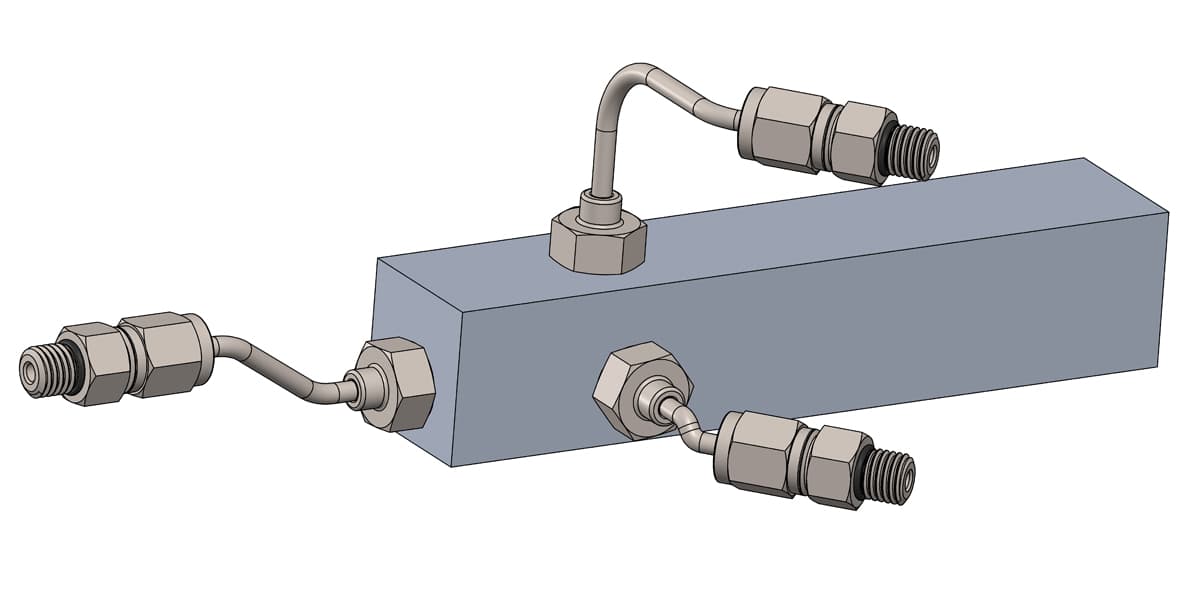

NPAK Valve Block (for #6 and #8)
NPAK-0014
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-56d7788005318.jpeg?auto=compress%2Cformat&w=75&s=dec3f40585f1a041d5bdacf97abe196c)
NPAK top portion of fine adjust assembly without piston (for #7)
NPAK-0020
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702845ca1eab.jpeg?auto=compress%2Cformat&w=75&s=eddf9467eca7ce499898d0a93651026c)

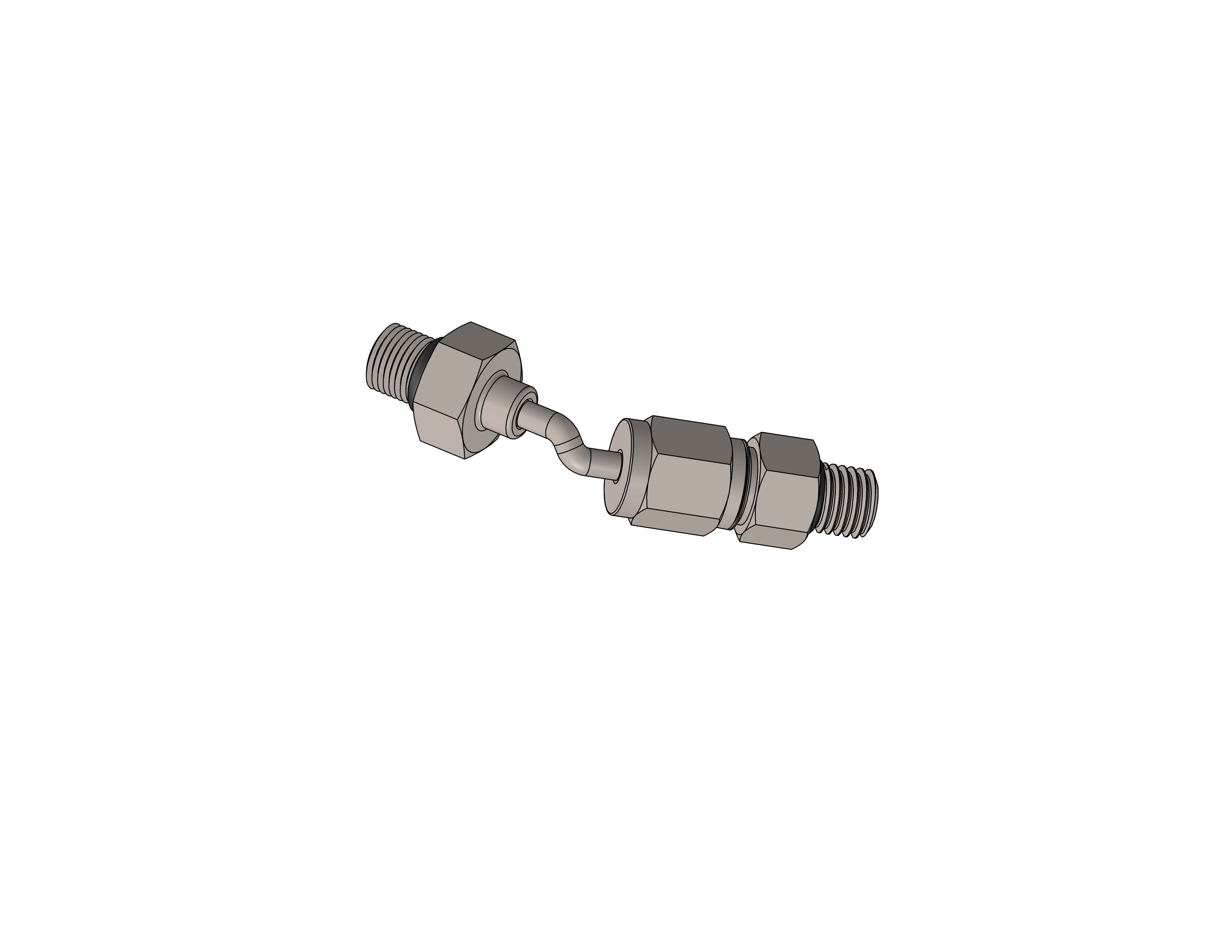

NPAK tube connecting regulator to valve block
NPAK-0055
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/item-NPAK-0060-5aec9d988de2c.jpg?auto=compress%2Cformat&w=75&s=99361fa0432cca9b7bb69926f19705d6)

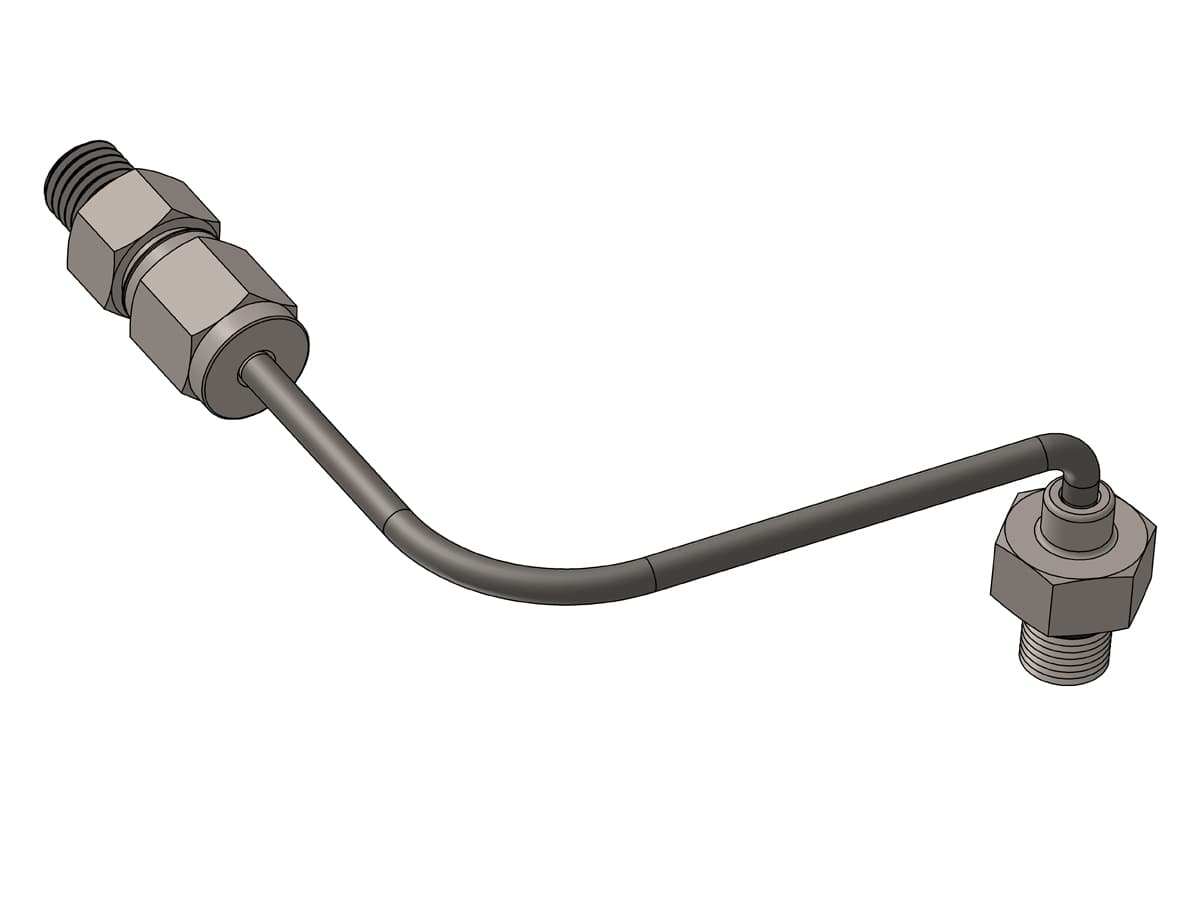

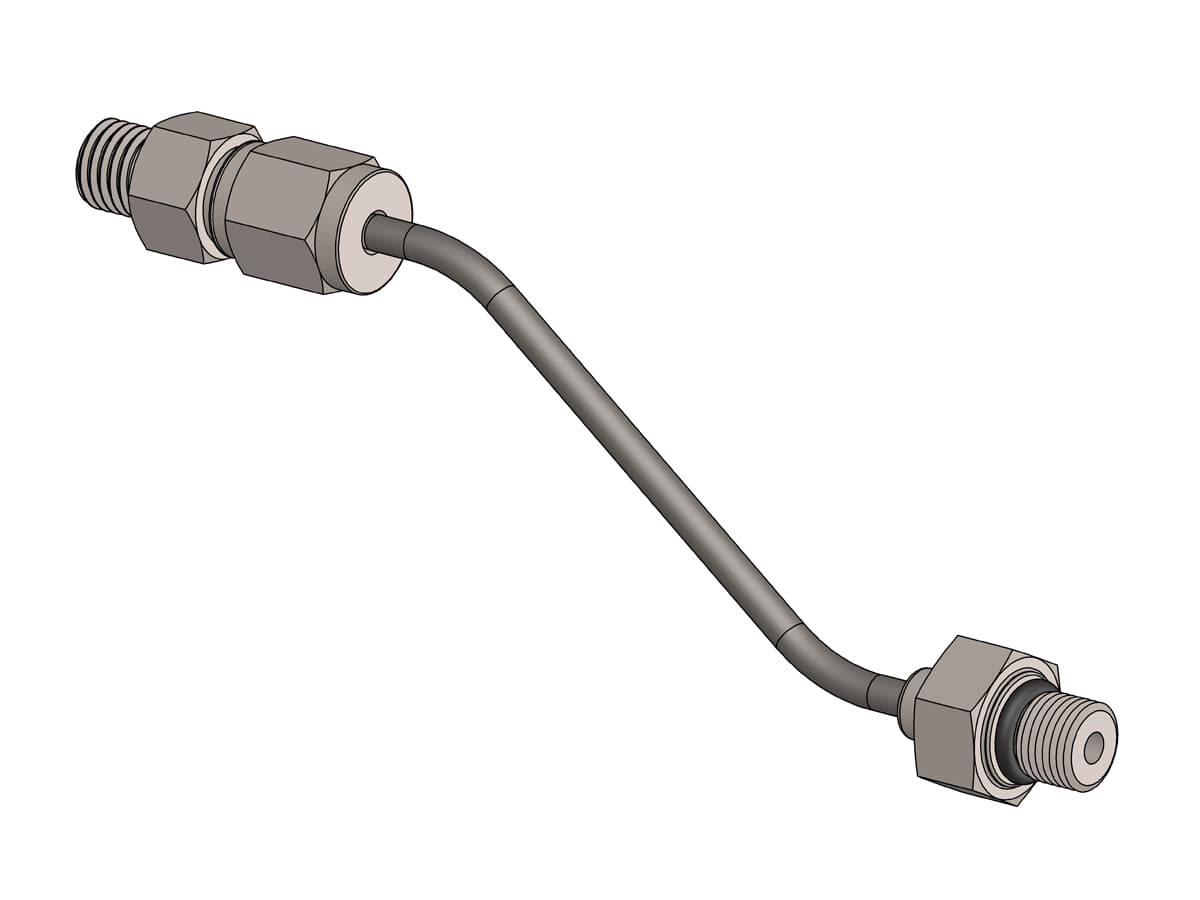

NPAK tube connecting to top of fine adjust vernier, tube fittings
NPAK-0060
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/item-NPAK-0065-5aec9dca17f23.jpg?auto=compress%2Cformat&w=75&s=86bbb58f7584d87c13d9458afcb9ada3)

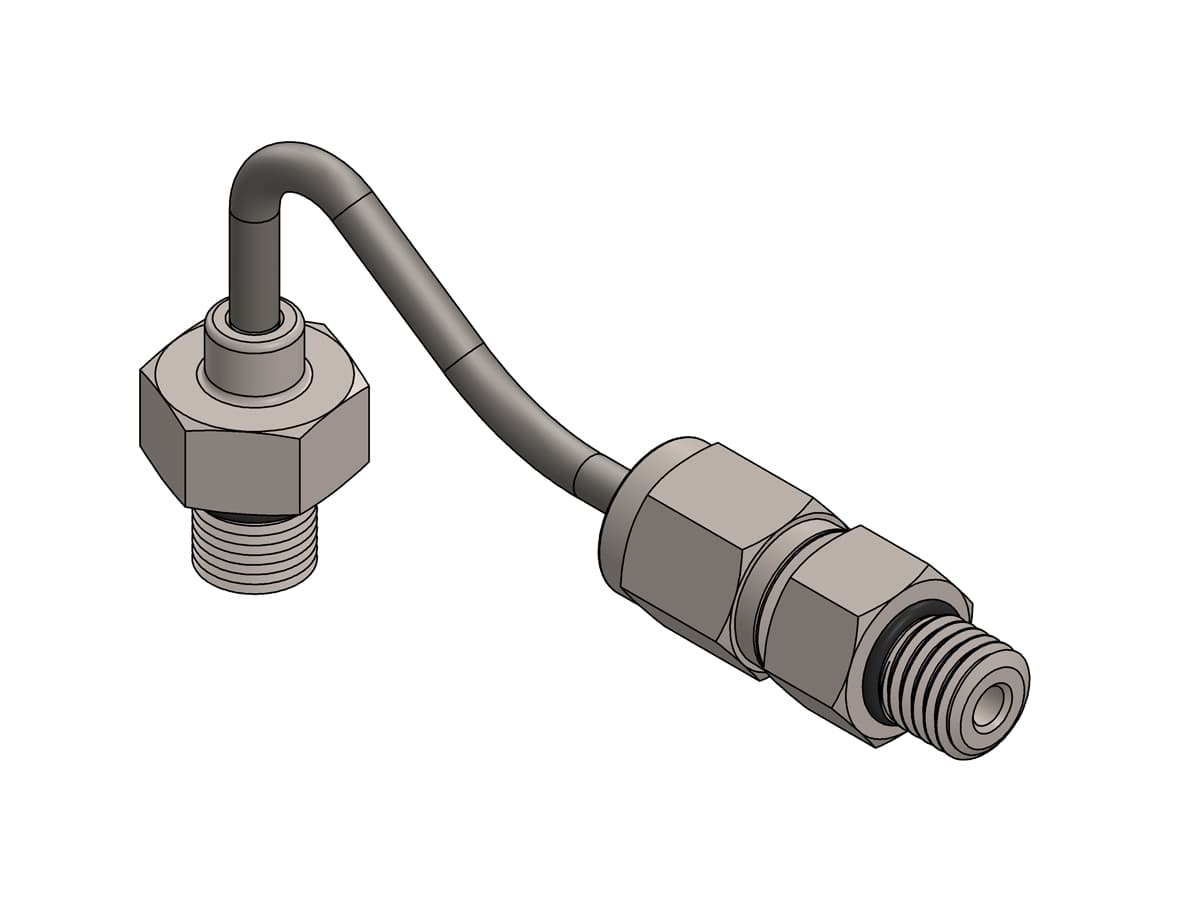

NPAK tube connecting to bottom of fine adjust vernier, tube fittings
NPAK-0065
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570286485cc7c.jpeg?auto=compress%2Cformat&w=75&s=4bcb1cb35eb1c87cb79af08760e9f63d)
NPAK Outlet port assembly, male Quick-test with cap and chain, S.S. (for #9)
NPAK-0070
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702867c92979.jpeg?auto=compress%2Cformat&w=75&s=284ebf98b3951f2e997fc435db5a9711)
NPAK Outlet port assembly, male Quick-test with cap and chain, S.S. (for #10)
NPAK-0075

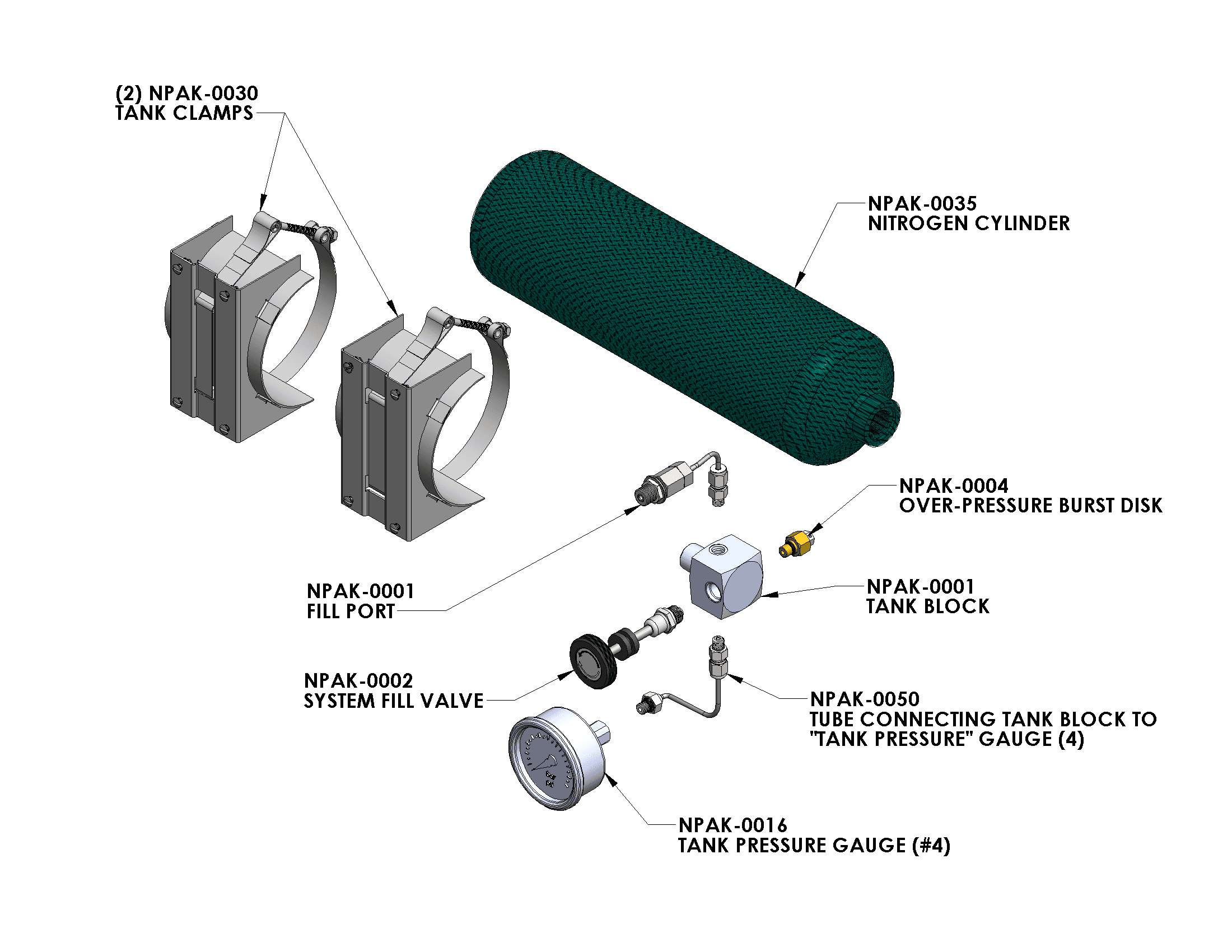

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollersNitropak Tank Assembly Replacement Parts
![](https://ralstoninst-web.imgix.net/products/items/item-570281aa581cd.jpeg?auto=compress%2Cformat&w=75&s=83941929ea2d7e64eeec5e698c677f1e)

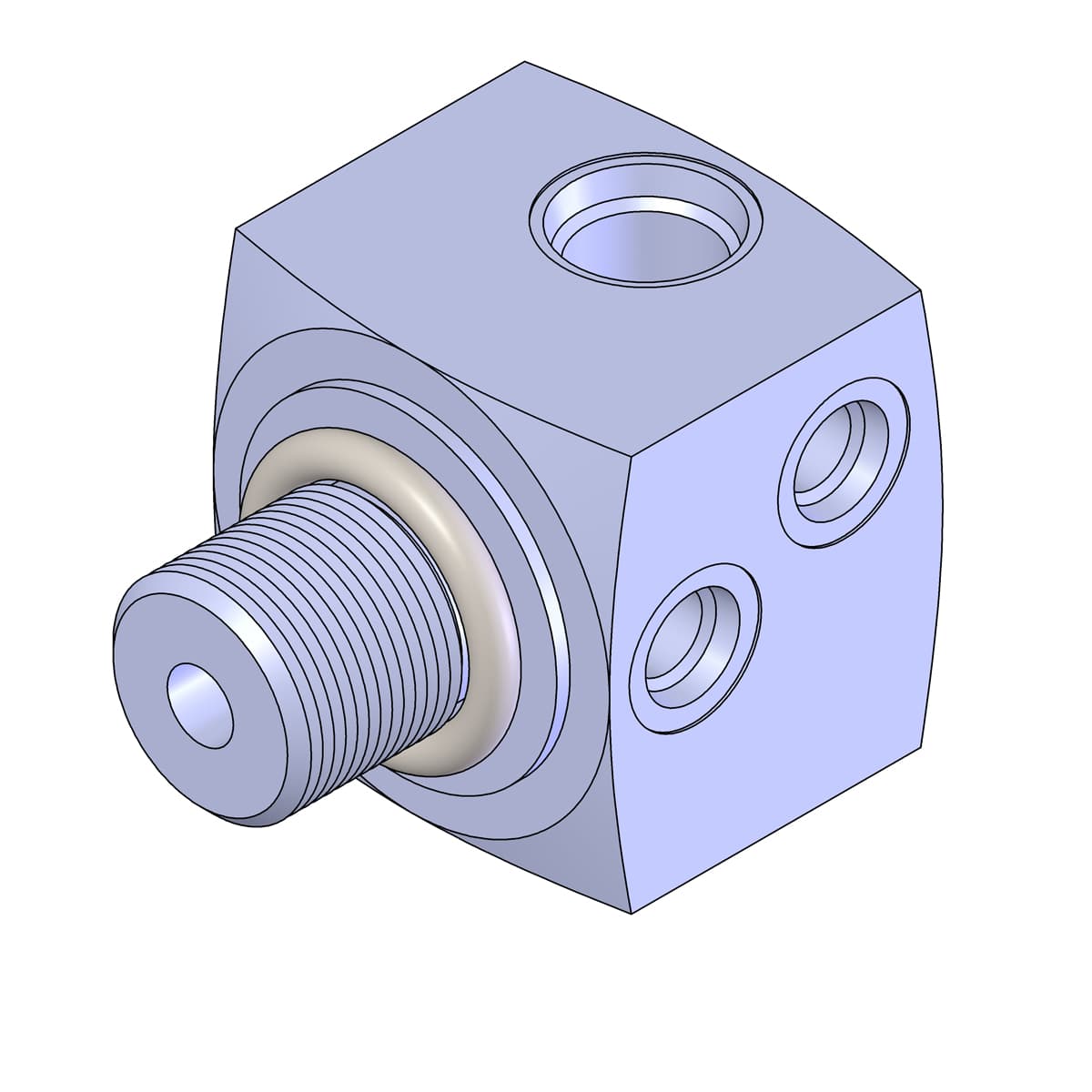

NPAK Tank valve block, aluminum
NPAK-0001
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-57028149cce07.jpeg?auto=compress%2Cformat&w=75&s=b23b6c081b12e2b6f25674659ce80bf1)
NPAK Fill port assembly, male Quick-test with cap and chain S.S. (for #1)
NPAK-0002
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570281790bfd5.jpeg?auto=compress%2Cformat&w=75&s=2505af0eea5df3167a7ea8700f599e8b)

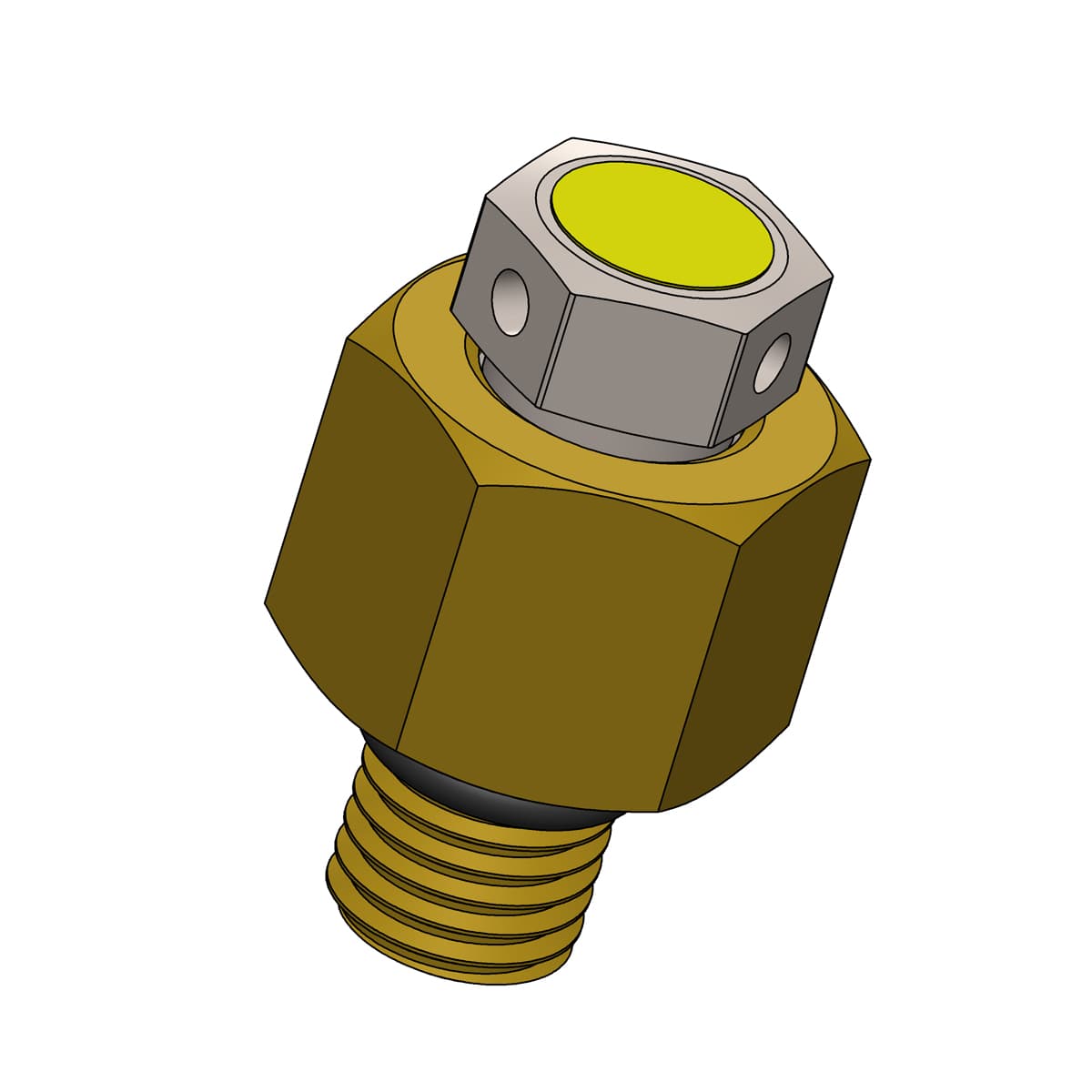

NPAK Overpressure burst disk (3000 psi / 200 pressure range)
NPAK-0004
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702823349be8.jpeg?auto=compress%2Cformat&w=75&s=baab5c22043c20a8b10be383c17239d7)
3000 psi / 210 bar dual scale pressure gauge (for #4 and #5)
NPAK-0016
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702828e4539f.jpeg?auto=compress%2Cformat&w=75&s=ff0dc768e595ddaa6b71a4b90f798b13)

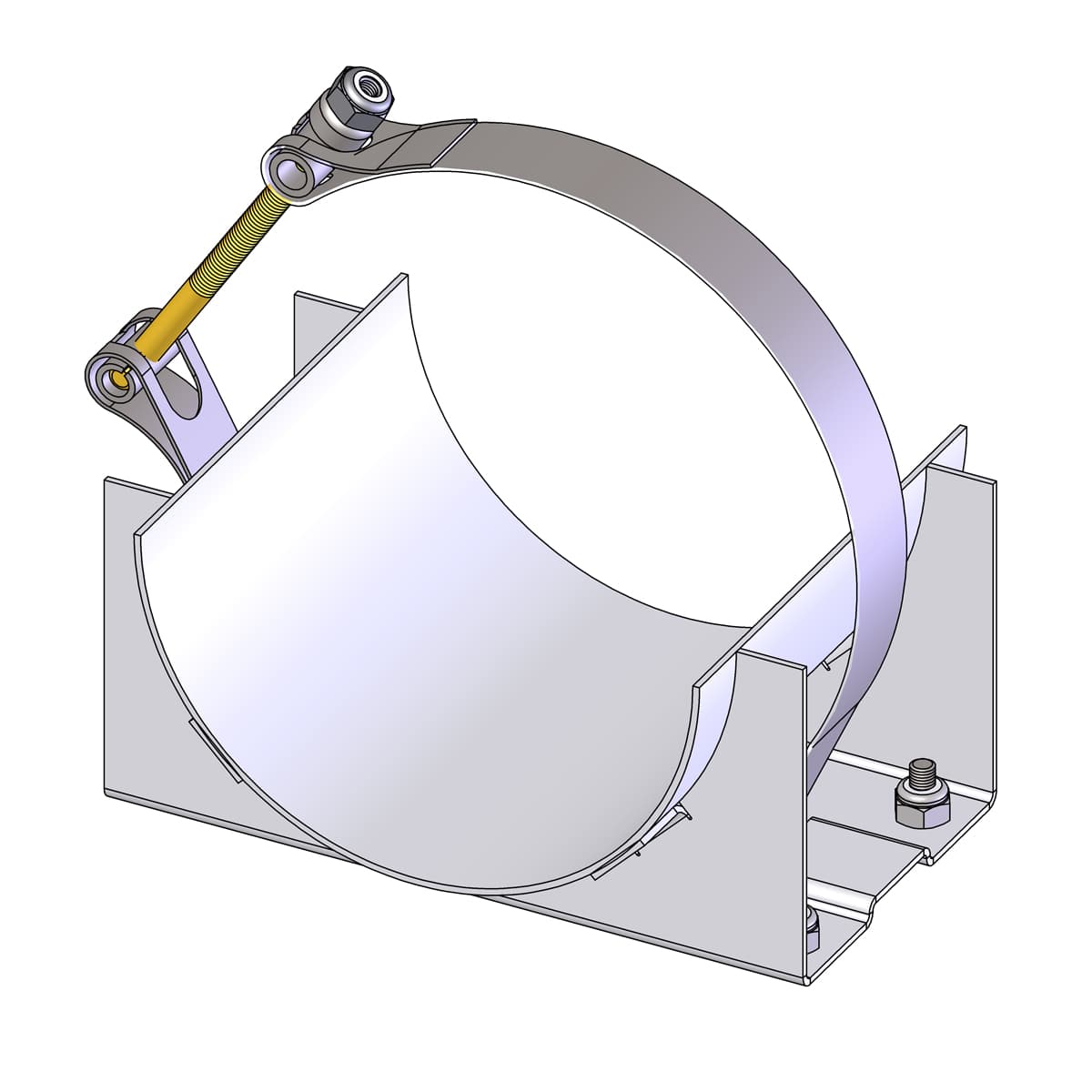

NPAK tank clamps, bracket and attachment bolts
NPAK-0030
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570282ec49069.jpeg?auto=compress%2Cformat&w=75&s=e3ceedb0ecf2d82069fca1c145aec9b7)

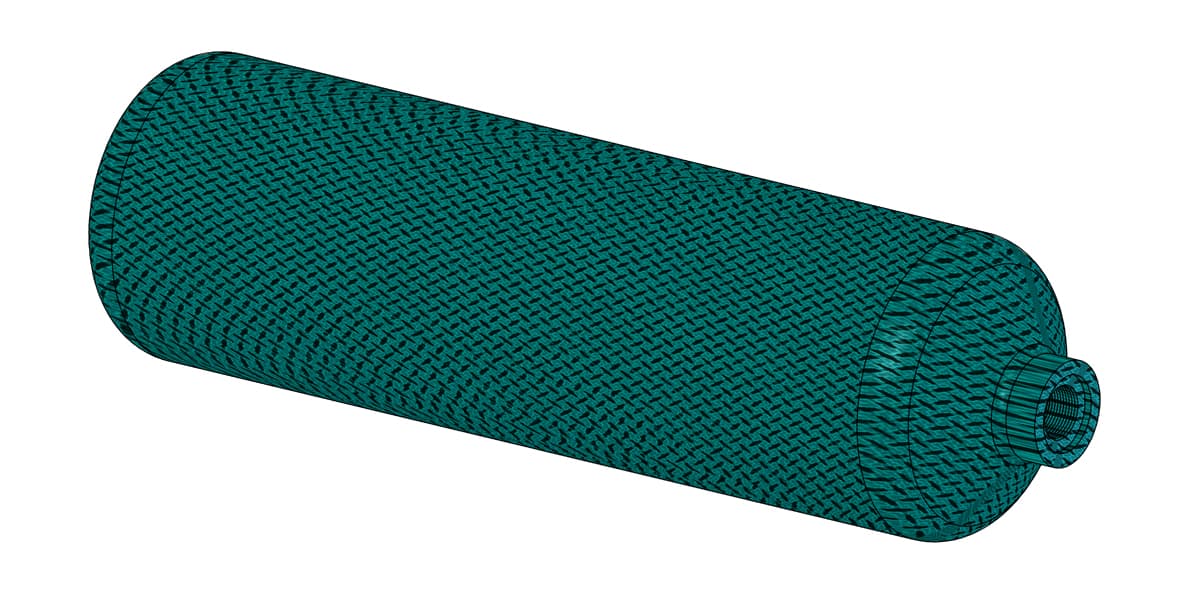

NPAK nitrogen cylinder (15.2 cu. ft / 430 l @ 3000 psi)
NPAK-0035
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570283687ec7a.jpeg?auto=compress%2Cformat&w=75&s=d179be52f72c90721d4b89acd25b037d)

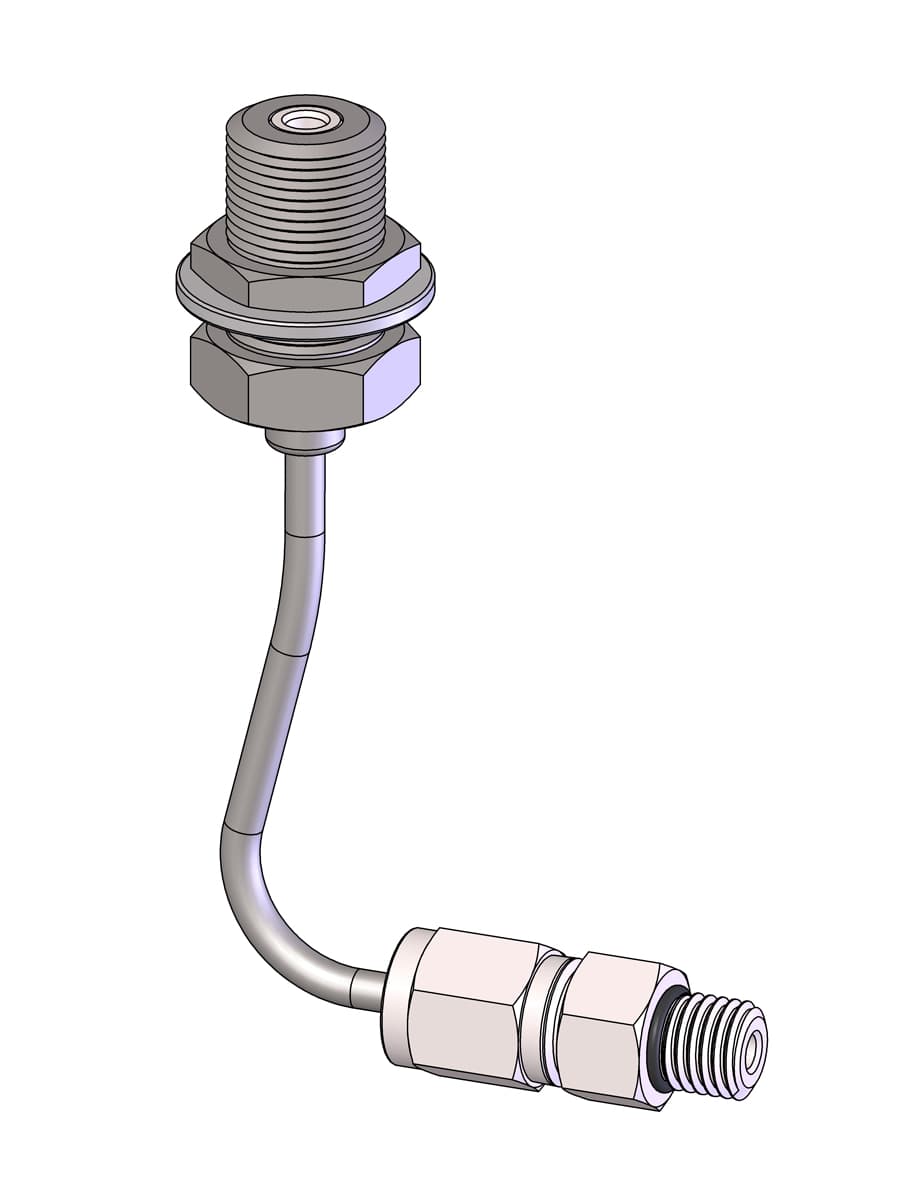

NPAK tube connecting tank fill valve to "tank pressure" gauge
NPAK-0050

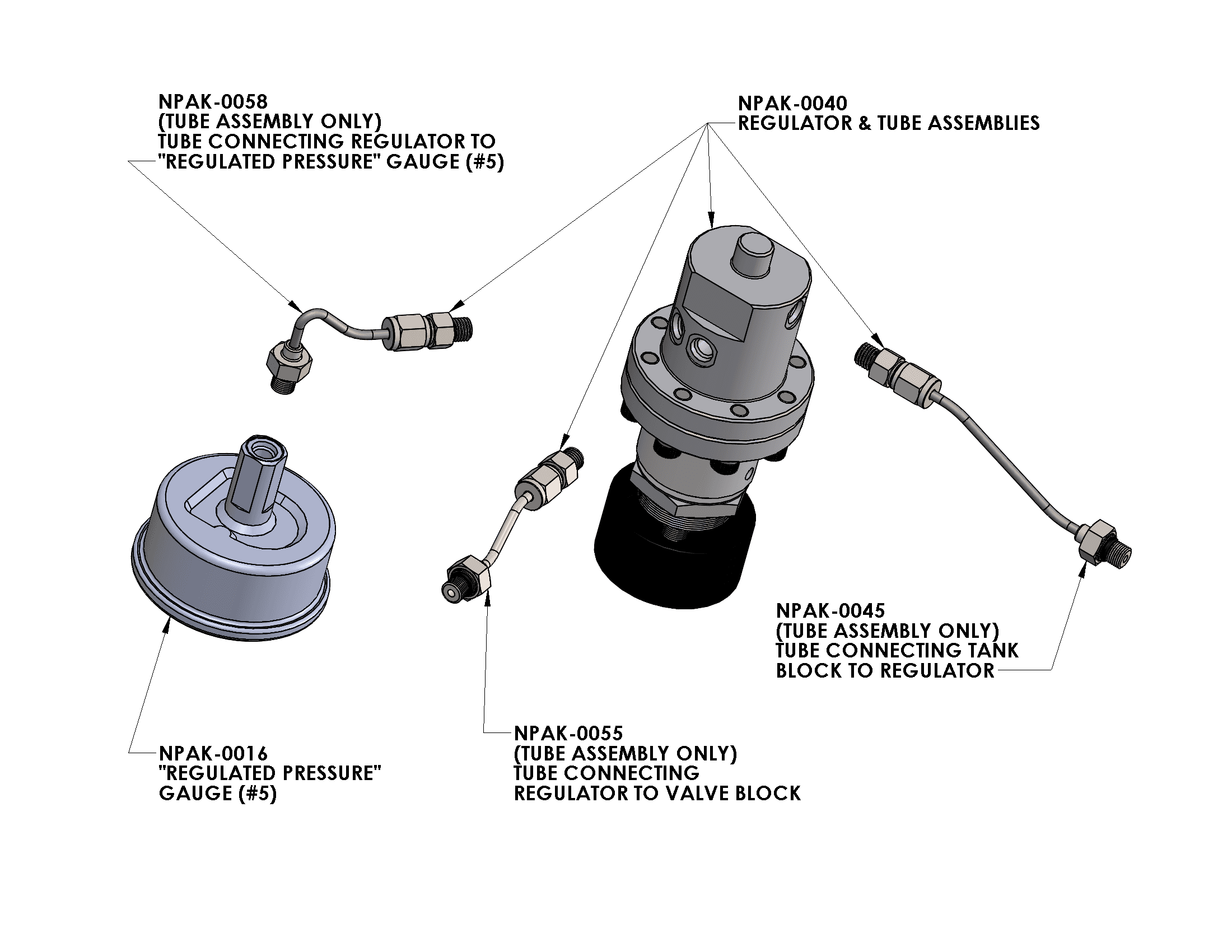

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollersNitropak Regulator Replacement Parts
![](https://ralstoninst-web.imgix.net/products/items/item-5702823349be8.jpeg?auto=compress%2Cformat&w=75&s=baab5c22043c20a8b10be383c17239d7)
3000 psi / 210 bar dual scale pressure gauge (for #4 and #5)
NPAK-0016
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702832077c3d.jpeg?auto=compress%2Cformat&w=75&s=615a1ad17b8e4f1feaf7c6c03d746944)
NPAK replacement gas regulator (for #3)
NPAK-0040
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570283407606f.jpeg?auto=compress%2Cformat&w=75&s=fa10140d7d3516b3243df81009372b6b)

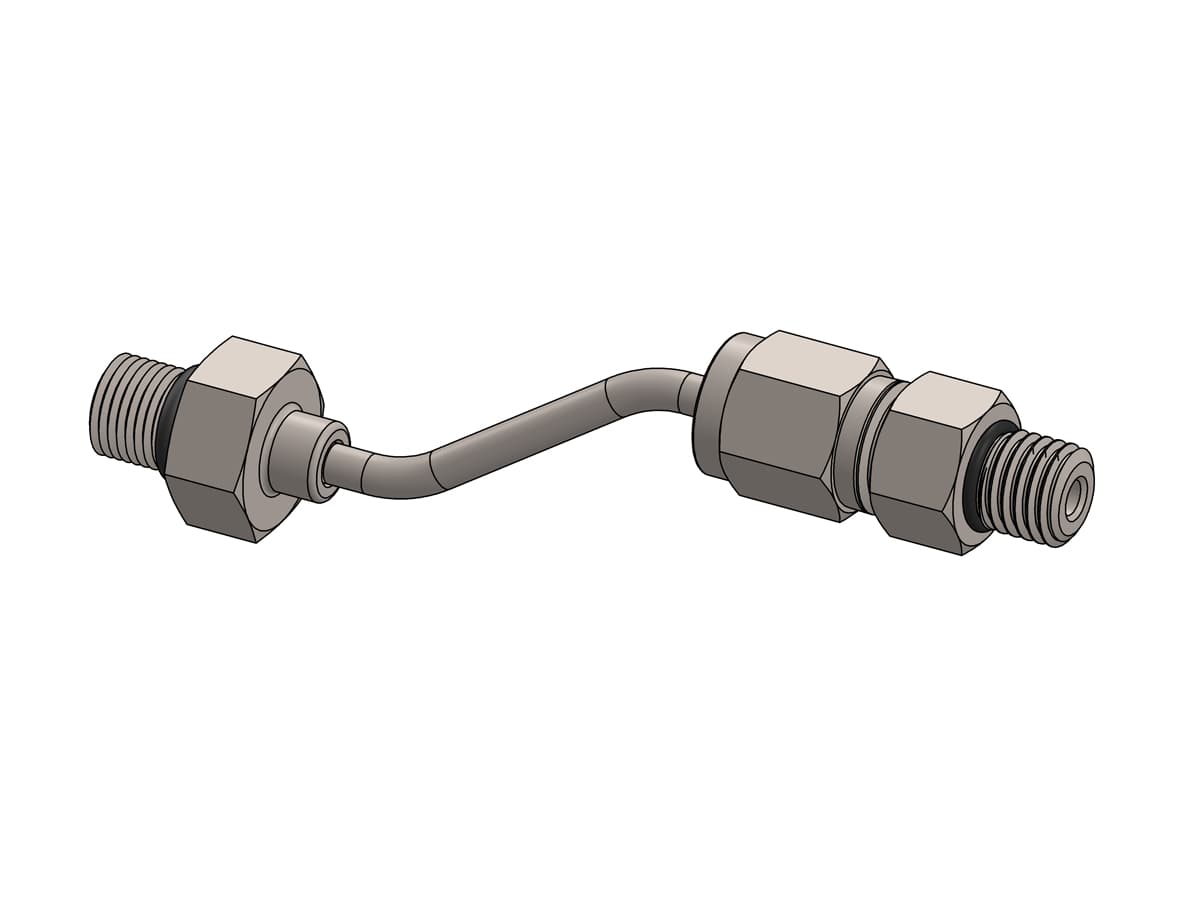

NPAK tube connecting tank fill to regulator, with tube fittings
NPAK-0045
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-5702845ca1eab.jpeg?auto=compress%2Cformat&w=75&s=eddf9467eca7ce499898d0a93651026c)
NPAK tube connecting regulator to valve block
NPAK-0055
Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers![](https://ralstoninst-web.imgix.net/products/items/item-570284c7b5402.jpeg?auto=compress%2Cformat&w=75&s=76aad75e675dc69e40481cb062871970)
NPAK tube connecting regulator to "regulated pressure" gauge
NPAK-0058
